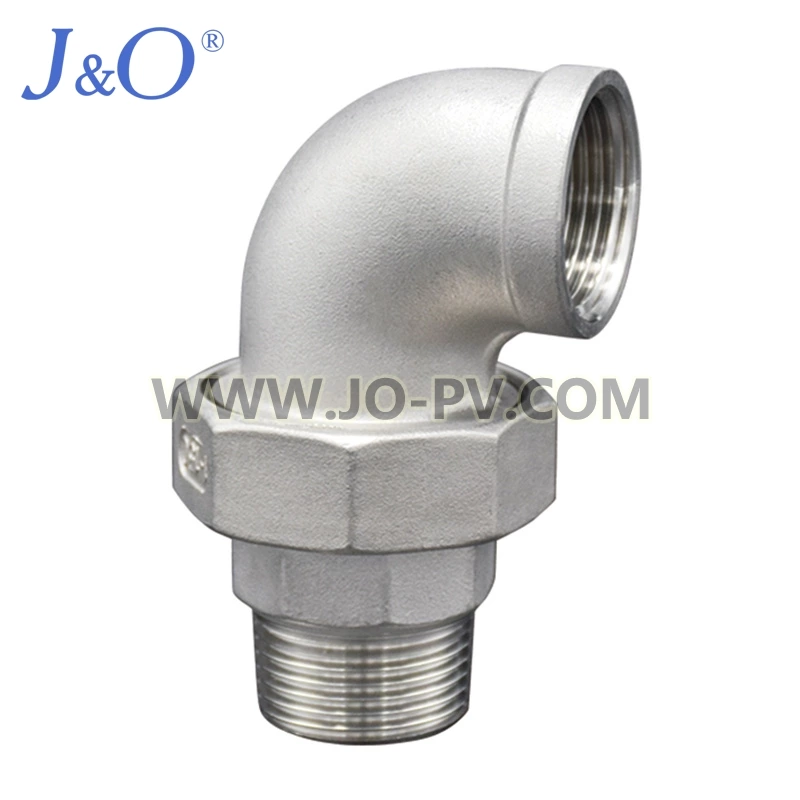

Stainless Steel NPT Thread Female Male Union Elbow
- Brand:
- J&O
- Material:
- SS304 / SS316
- Connection:
- Female-Male
- Gasket:
- NBR, EPDM, SILICON, PTFE
- Working Pressure:
- 150LBS
- Payment:
- T/T, L/C, Western Union
150LBS Stainless Steel Casting Female Male Union Elbow
-
J&O Fluid Control is one of the professional manufacturers of stainless steel products with our own casting foundry.
-
We are specialized in stainless steel pipe fittings for many years, especially for thread pipe fittings(ISO4144 Standard, MS SP114 Standard, High pressure 3000PSI), Camlock Coupling, Tube Fittings, Hydraulic Fittings, etc.
-
J&O stainless steel thread fittings can be manufactured according to national standard and customers' requirements, such as ISO414, MSS SP-114, GB/T26120, etc.
Technical Data
| Material: | SS304/SS316 |
| Max working pressure: | 150lbs |
| Availably size: | 1/8"-2" |
| Thread Type: | NPT, BSP, PT |

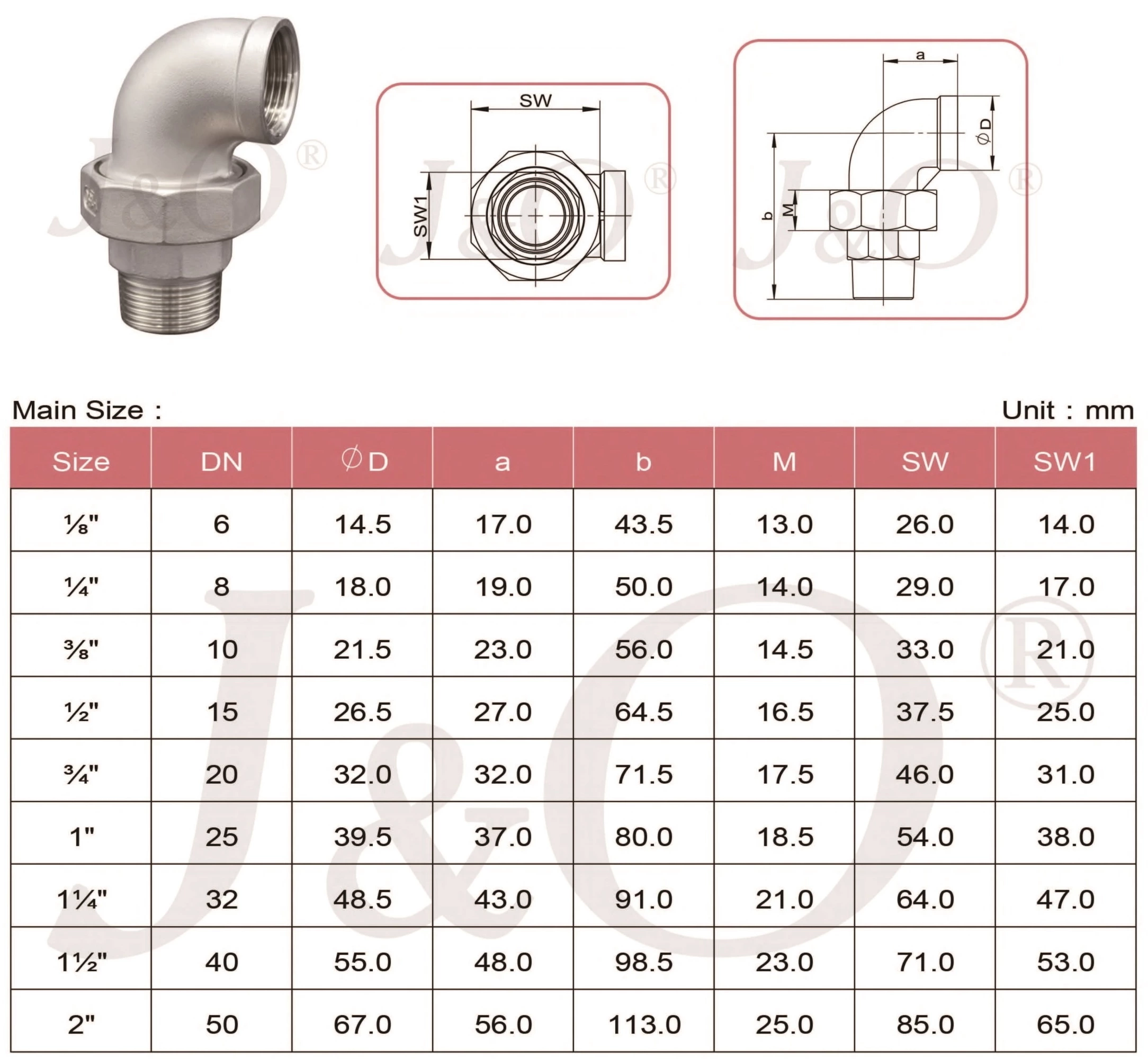

Product Parameter
