Sanitary Stainless Steel Aseptic DIN11864-1 Liner
- Brand:
- J&O
- Material:
- SS316L
- Connection:
- Weld
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Payment:
- T/T, L/C, Western Union

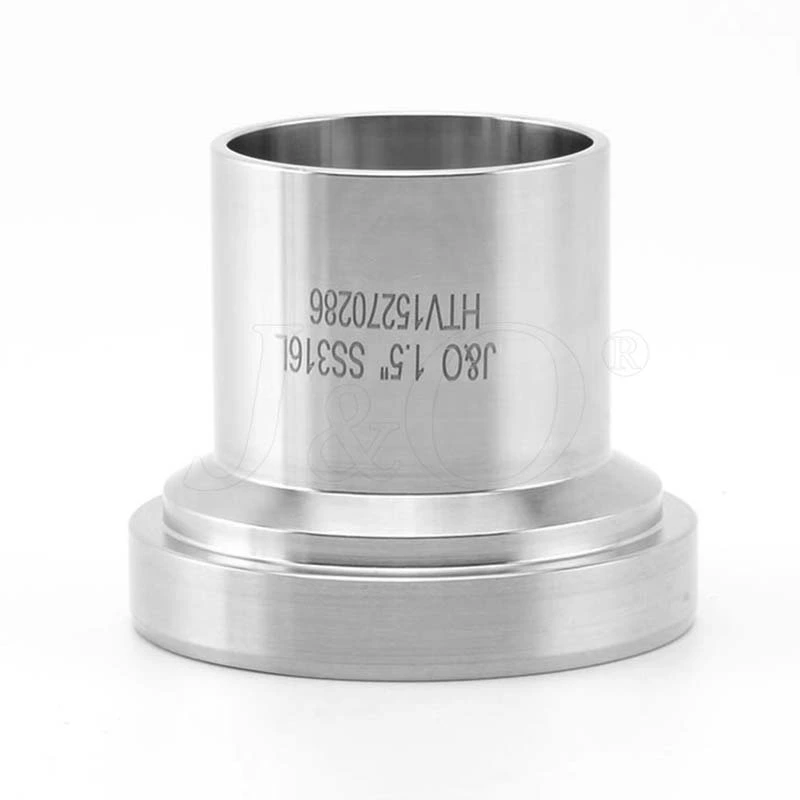

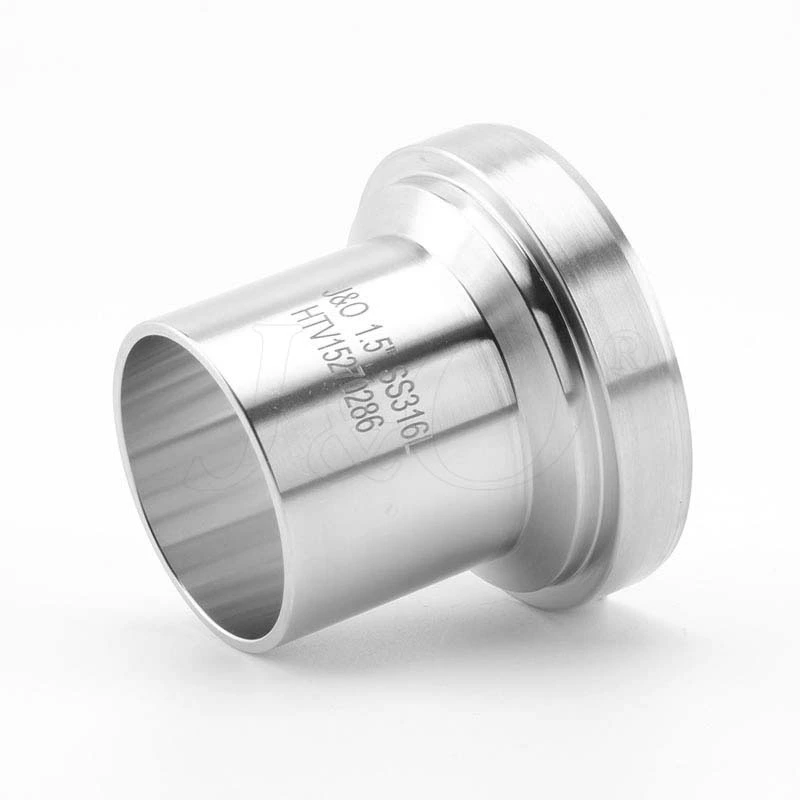

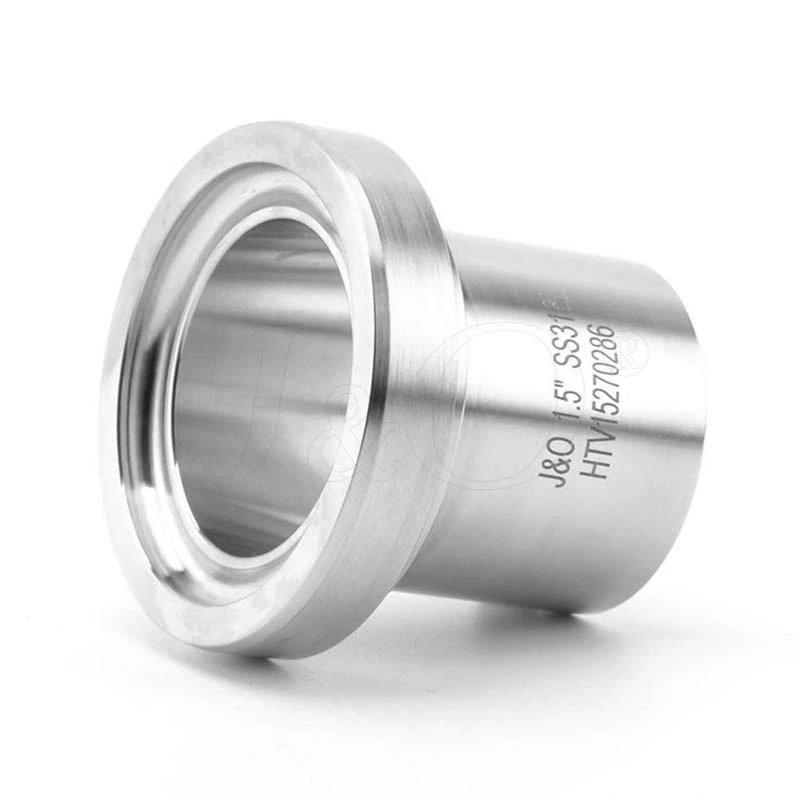

DIN 11864-1 Aseptic Liner
- DIN11864 aseptic fittings meet the exacting needs of food, chemical and pharmaceutical industries.
- Available with optional lengths to suit Orbital and Manual Welding, these unions have been designed to match tube and pipe specifications in DIN 11850; ISO 2037, ASME BPE 2002 and BS 4825 Part 1 and also ISO 1127 for schedule pipe.
- DIN11864-1 union consists of four parts: Nut, Male, Liner and Gasket.
Technical Data
| Material: | SS316L |
| Max working pressure: | 10Bar |
| Max. Working Temperature: | 180 degree C |
| Availably size: | DN11-DN100 |
| Application: | For Aseptic applications in chemical and pharmaceutical industry. |

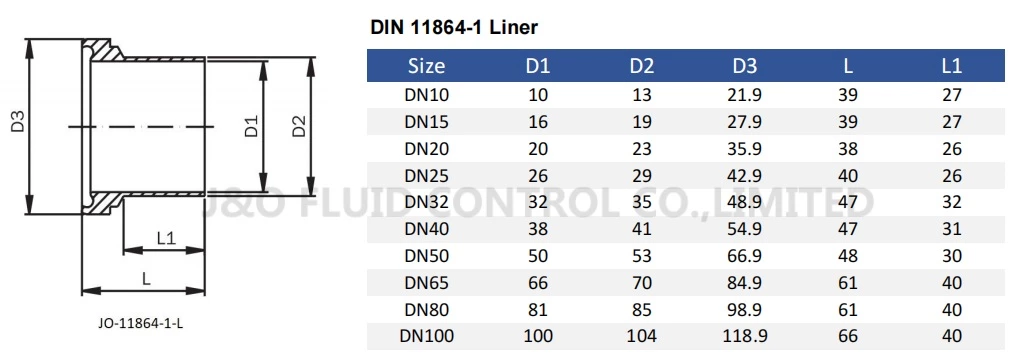

Product Parameter
