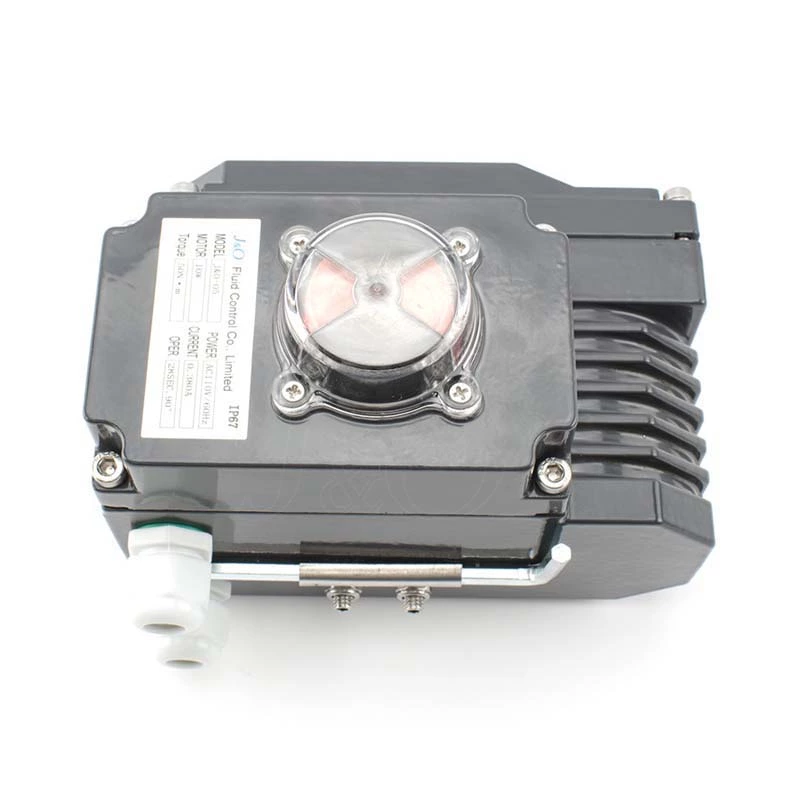

Electric Actuator For Valves
- Brand:
- J&O
- Material:
- Aluminum
- Working Temperature:
- -30°~+70°
- Payment:
- T/T, L/C, Western Union

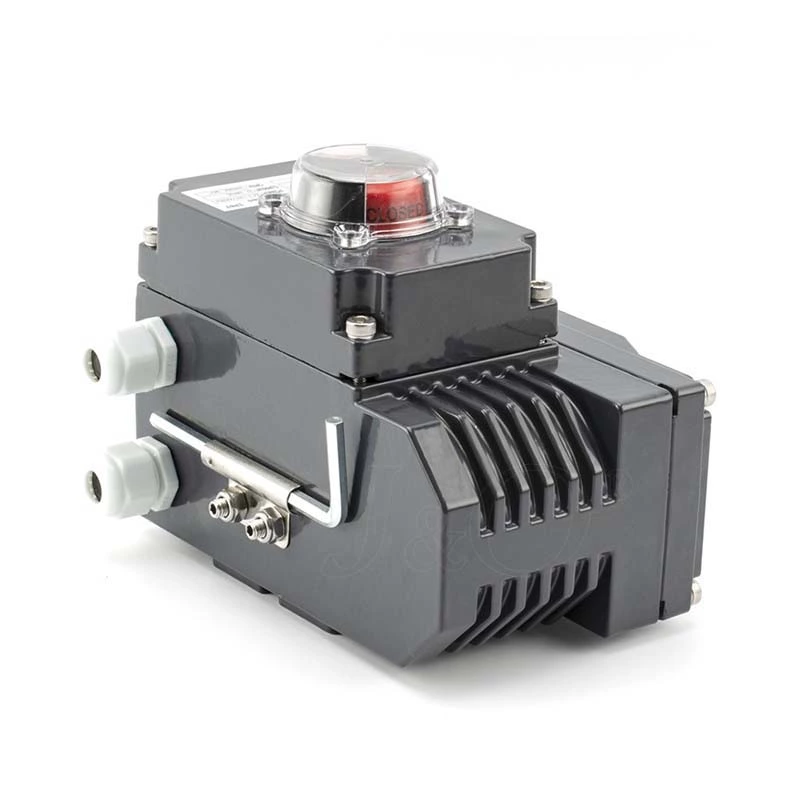

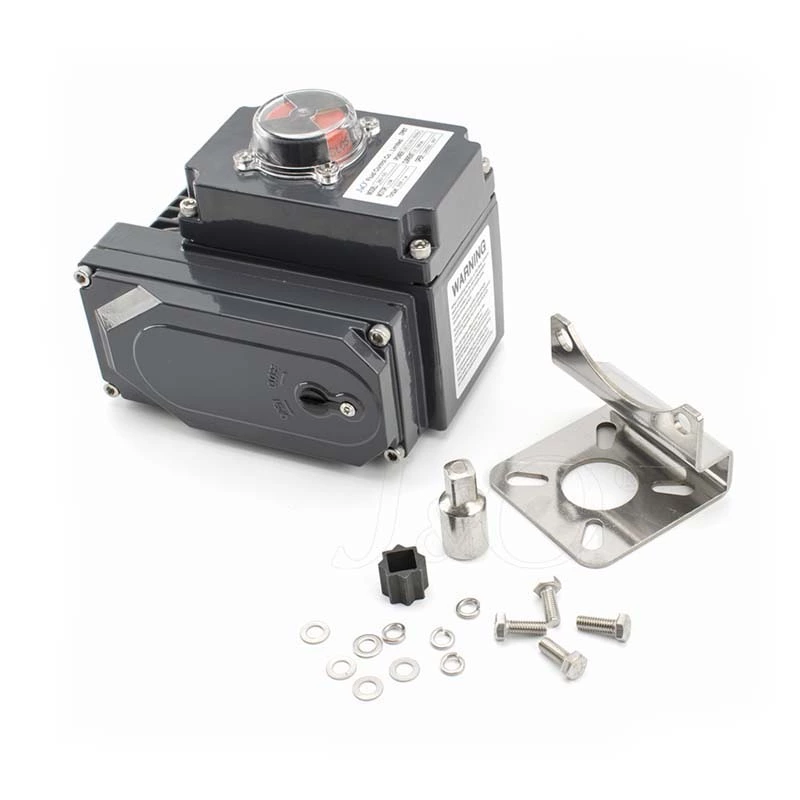

Electric Operated Rotary Actuator
-
The shell is made of hard aluminum alloy, with anodized treatment and poly-american powder coating, with strong corrosion resistance and protection class IP67.
-
Fully enclosed squirrel cage motor, small size, large torque, low inertia, insulation class F, built-in overheating protection switch, can prevent overheating and damaging the motor.
-

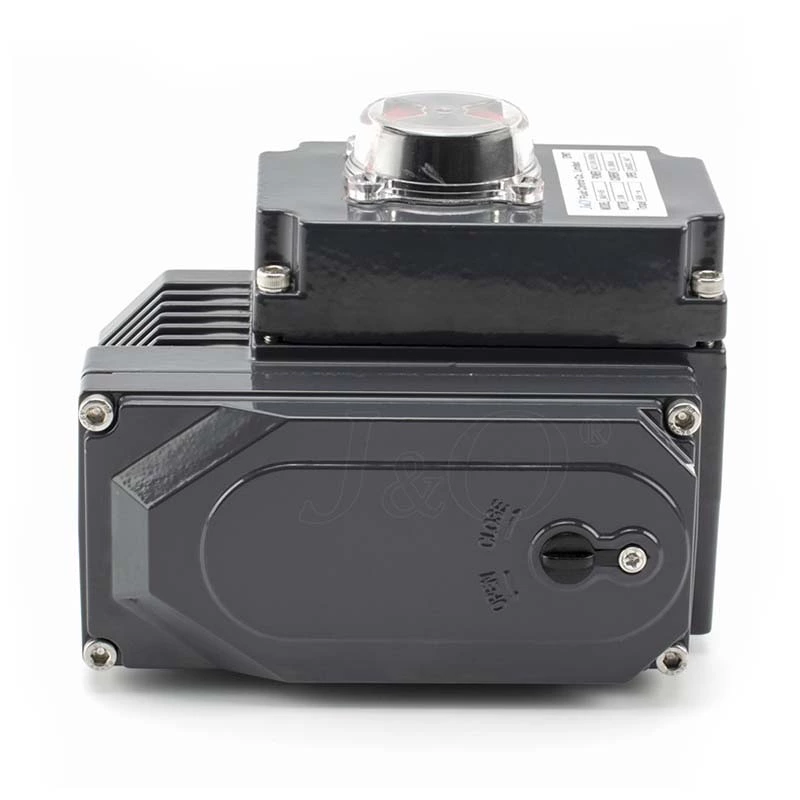

The indicator is installed on the central axis, and the valve position can be observed. Convex lens design is used to better observe the switch position in any part.
-

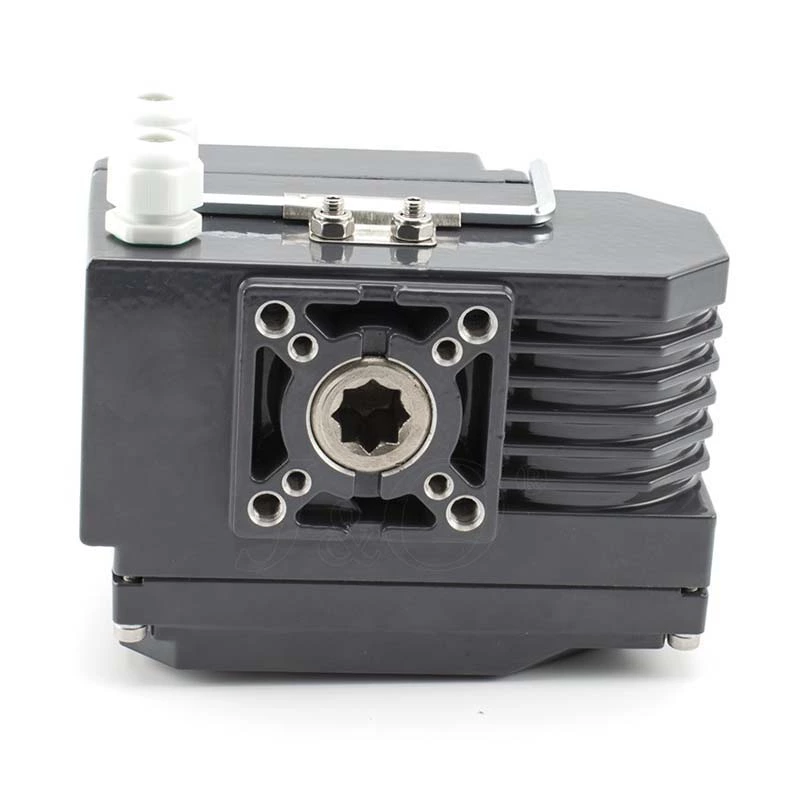

The bottom installation size conforms to the 1S05211/DIN3337 international standard, and the holes are double quadrangular, which is convenient for linear or 45° angle installation of valves with square rods, and has strong adaptability. It can be installed vertically or horizontally.
Technical Data
| Shell | Ingress Protection Rating IP67 |
| Motor power | 110/220V AC single-phase, 380/440V AC 3-phase, 50/60HZ, ±10% |
| Control Power | 110/220V AC single-phase, ±10% |
| Control Signal | Input/output 4-20mA |
| Motor | Squirrel cage asynchronous motor |
| Limit switch | 2X(Open)/ (Close)SPDT, 250V AC 10A |
| Auxiliary limit switch | 2X(Open)/ (Close)SPDT, 250V AC 10A |
| Stroke | 90°±10°(180°/270° option ) |
| Failsafe/operating temperature | Built-in overheat protection, Open 120°±5°/close 97±5° |
| Indicator | Continuous position indication |
| Manual operation | Mechanical handle |
| Self-locking device | Worm gear and worm mechanism provide self-locking |
| Mechanical limit | 2 external adjustment bolts |
| Dryer | 7-10W (110/220V AC) anti-condensation |
| Wiring hole | 2PCS M18 |
| Ambient temperature | -30°~70° |
| Lubricating | Aluminum-based lubricating shield (EP type) |
Product Parameter
| Model | Max output torque(Nm) | Operating time 90°(S) | Drive shaft(mm) | Power(W) | Rated current(A) 220VAC/1ph | Weight(kg) | |||
| Square | Deep | On/off type | Modulating type | Intelligent | |||||
| JO-05 | 50 | 28 | 14x14 | 24 | 24 | 0.144 | 3.5 | 4.1 | 4.3 |
| JO-10 | 100 | 28 | 17x17 | 27 | 23 | 0.28 | 4.7 | 5.3 | 5.5 |
| JO-15 | 150 | 28 | 17x17 | 27 | 30 | 0.32 | 4.9 | 5.5 | 5.7 |
| JO-20 | 200 | 28 | 22x22 | 26 | 63 | 0.489 | 8.5 | 9.2 | 9.5 |
| JO-40 | 400 | 28 | 22x22 | 26 | 80 | 0.6 | 8.8 | 9.5 | 9.8 |
| JO-60 | 600 | 28 | 22x22 | 26 | 95 | 0.746 | 9.1 | 9.8 | 10.1 |
| JO-100 | 1000 | 28 | 27x27 | 40 | 120 | 0.8 | 11.6 | 12.3 | 12.6 |
| JO-200 | 2000 | 45 | 27x27 | 40 | 130 | 0.94 | 11.9 | 12.6 | 12.9 |
| JO-260 | 2600 | 60 | 27x27 | 40 | 151 | 1.3 | 12.1 | 12.8 | 13.1 |
