45DEGREE FORGED ELBOW
- Brand:
- J&O
- Material:
- SS304/SS316
- Connection:
- Thread/ Female
- Payment:
- T/T, L/C, Western Union
Stainless Steel Forged Threaded 45 Degree Elbow
-
It is applied to the stainless steel pipeline system,which is used for milk,food,juice,beer,phramcy,ec.
-
Each kind of products has strong corrosion resistance and over-long service liftime.
-
Tank accessories are easy to be installed.
-
Problem-free welding and assembly and highest possible strenghth.
-
Welding Requirements:aware of the constantly increasing demands for quality of welding. In accordance with these demands, all our weld and fittings meet the hightest of standard. The reducers have cylindrical welding ends and are avaible for all tube combiations, ensuring you that the right diamter and wall thickness for your process.
Technical Data
| Size: | 1/8''-4'' |
| Connection: | weld |
| Application scope: | Dairy, food, beer, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Shrink wrapped - carton - pallet . Or as per the request of customers |
| Delivery details: | Usually within 20 days after receiving T/T down payment |

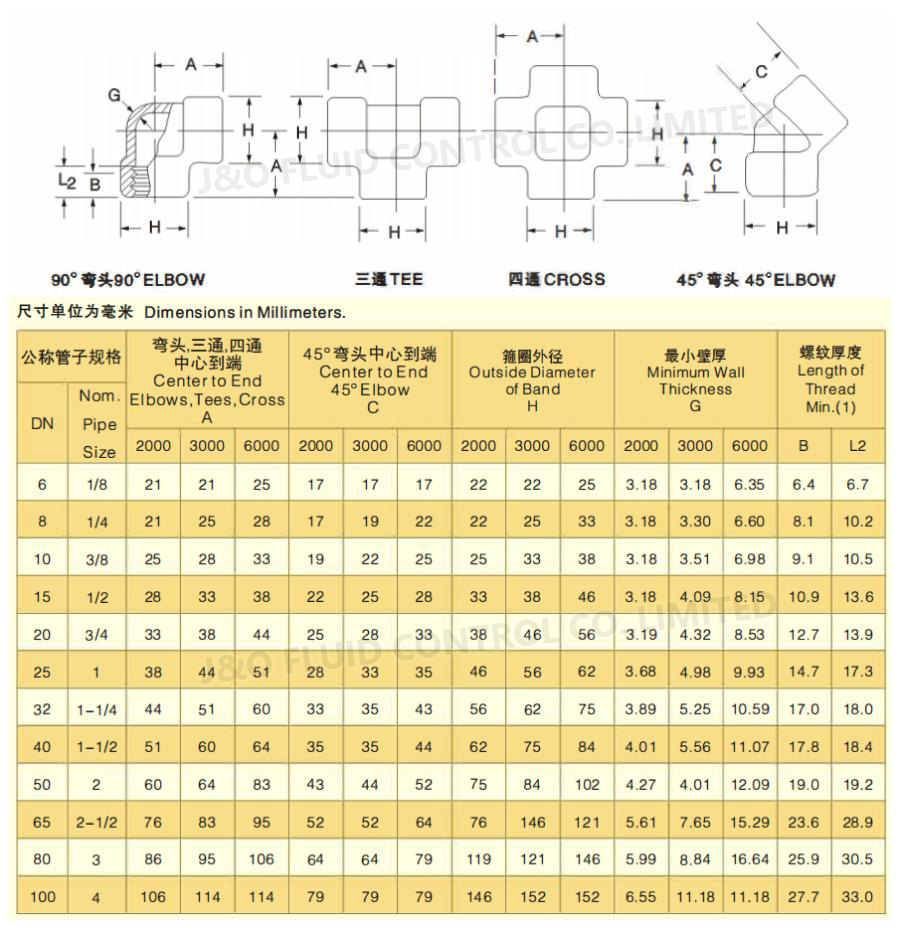

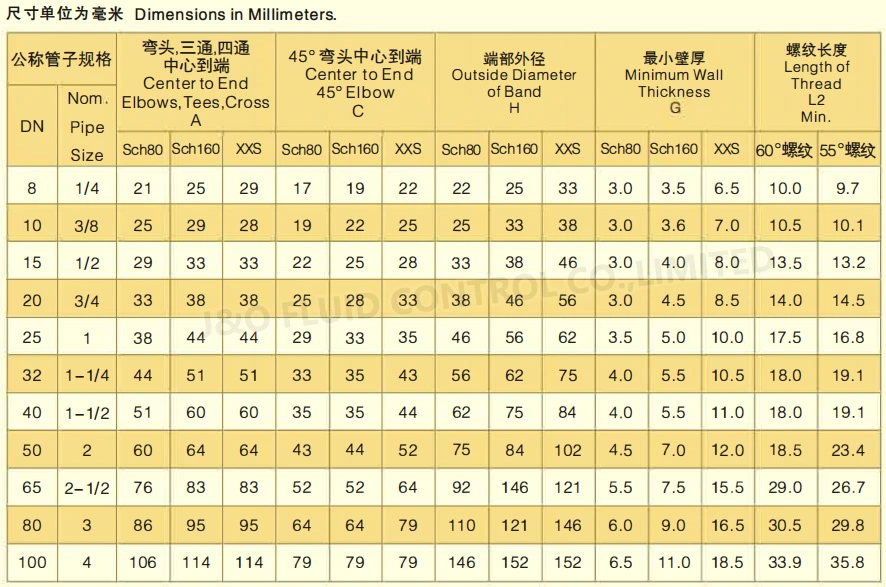

Product Parameter
ASME B16.11-2005(ASME 816.11-2001的修订版）
GBT14388-93

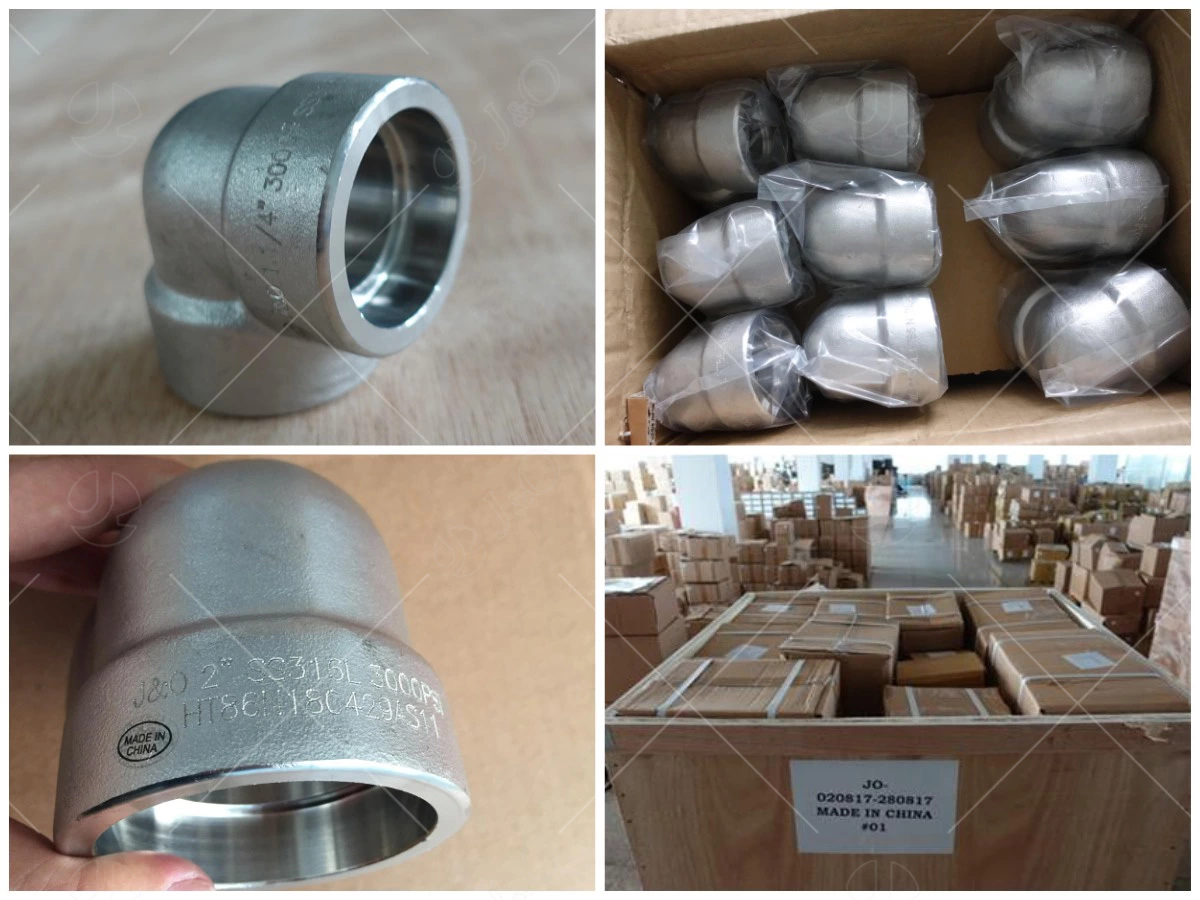

Product Pictures
