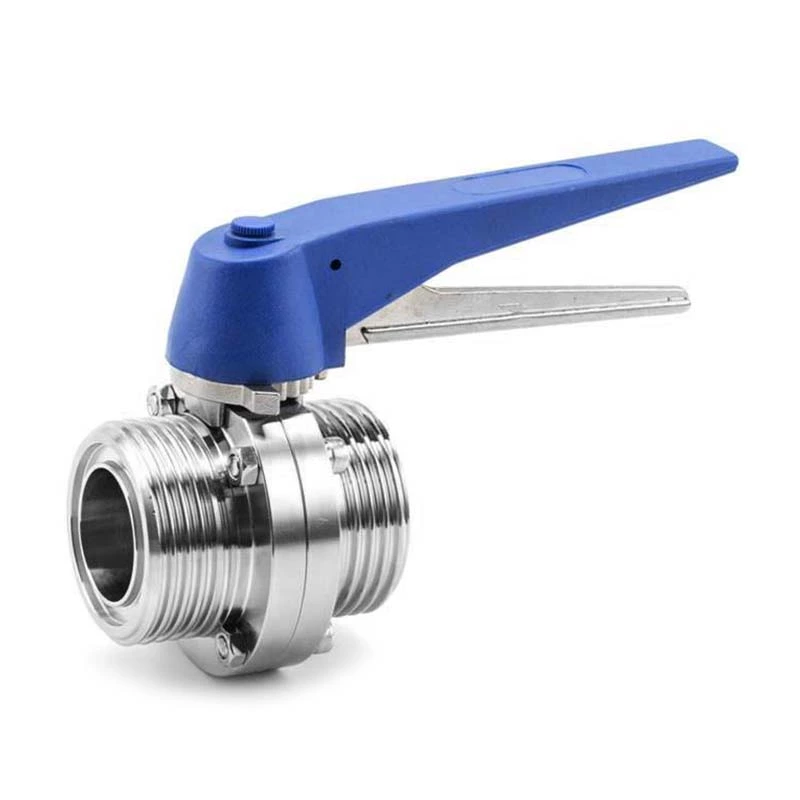

Application and drive mode of Sanitary Butterfly Valve in the sanitary field

Sanitary butterfly valve is a kind of valve widely used in the sanitary field. The reason why it is called butterfly valve is not that its appearance looks like a butterfly, but because this type of valve has a simpler appearance structure, is more convenient to use, has a smaller appearance, and is flexible to open and close. Butterflies are also small and flexible insects, and there are many similarities, so this device is called a sanitary butterfly valve.

The drive modes of sanitary butterfly valves are divided into manual, pneumatic, electric, etc. Among them, pneumatic butterfly valves are terminal components in process control, and people have a newer understanding of its importance than in the past. The quality of the product depends on the quality of the product itself, whether the user correctly installs, uses, and maintains it, and it is very important to calculate and select the model correctly. Due to the mistakes in the selection at the time of purchase, the system is opened and stopped, and some cannot even be put into use. Users and system designers must pay attention to the selection principles of pneumatic sanitary butterfly valves. The specific principles are as follows.

Due to errors in calculation and selection, the system is often started and stopped, and some systems cannot even be put into use. Therefore, users and system designers should recognize the importance of valves on site and pay enough attention to the selection of regulating valves. According to the process conditions, select the appropriate structure and material; according to the characteristics of the process object, select the flow characteristics of the pneumatic sanitary butterfly valve; according to the process operation parameters, select the appropriate pneumatic sanitary butterfly valve caliber size; according to the requirements of the process, select the required auxiliary devices; and reasonably select the actuator.

Using pneumatic sanitary butterfly valves with the same diameter as the pipeline and valve trims with limited flow capacity is conducive to reducing the valve inlet pressure and outlet fluid flow rate. It is not necessary to install additional pipe fittings such as reducers, which is conducive to reducing costs. By replacing valve trims with large flow capacity, the flow capacity can be expanded. By selecting valve trims with limited flow capacity, the error of calculating too large a caliber can be corrected.
