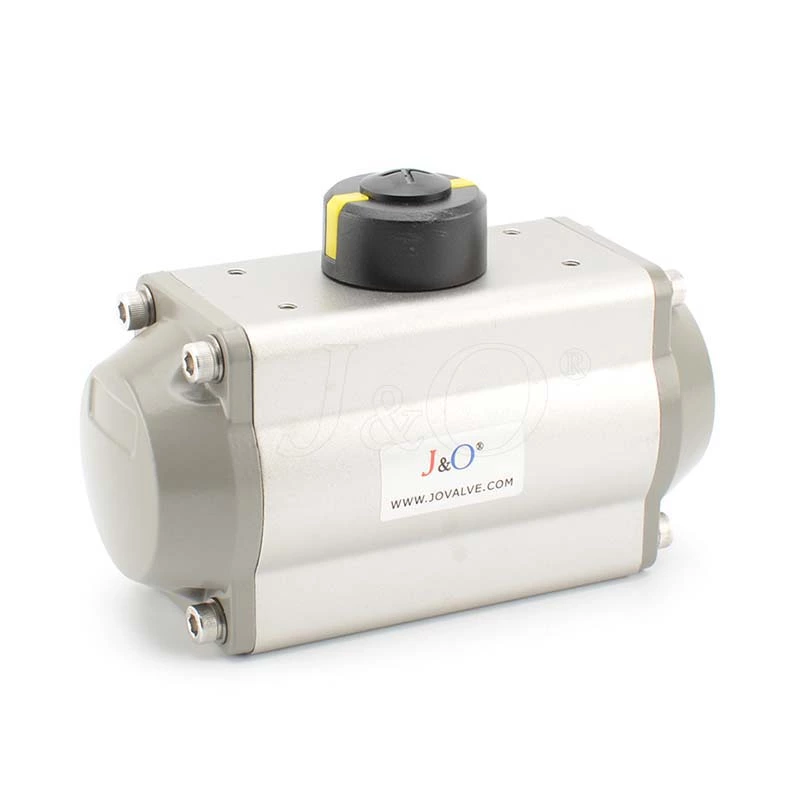

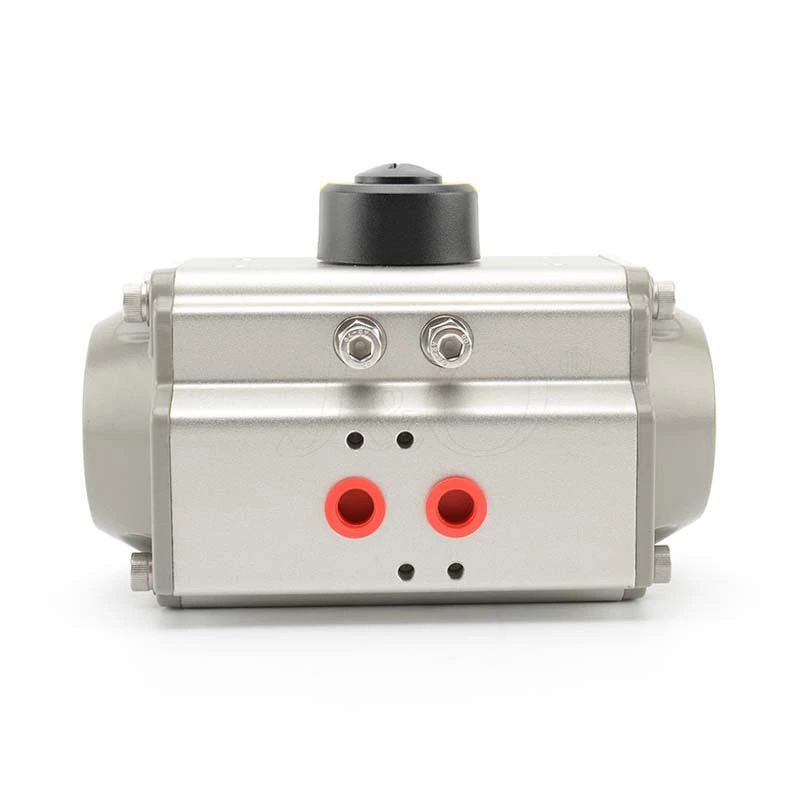

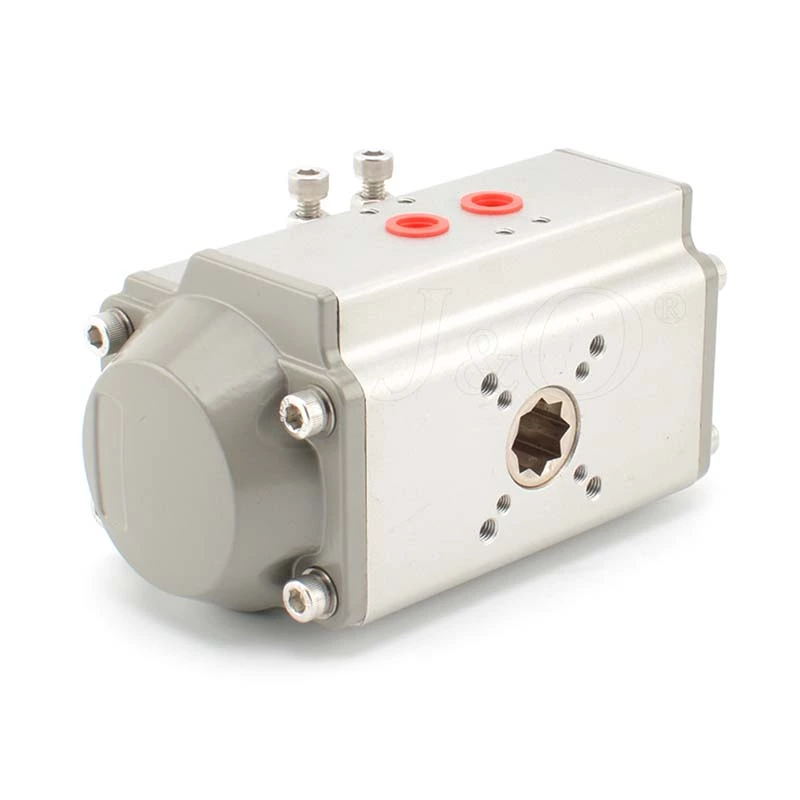

Aluminum Alloy Single Acting Double Acting Pneumatic Actuator

Brand:
J&O
Material:
Aluminum
Working Temperature:
-20°~+80°
Payment:
T/T, L/C, Western Union

Pneumatic Valve Single Acting Double Acting Actuator

  • Dual piston rack and pinion design os symmetric structures, rapid and smooth movement,high precision, high output power by a simple change in the direction of the piston assembly positions available anti-rotation.

  • High quality extruded aluminum alloy cylinder block, by precision machining the hole and the external surface of hard anodized,long life,low friction coefficient.

  • Integrated design,all the double acting and sigle function actuator models have the same cylinder and end caps,easily removed by installing a spring or spring to change themode of action.

  • Combined pre-spring break Hean whole group, whether in the assembly process or use on-site in both convenient and safe to install or change.

  • The external side of the two single independent adjustment screw has been number of springs.Installed in the valve for the actuator is precisely to facilitate, control valve open and valve closed position,For the whole trip conditioned office is also confifured in two cover a longer adjustment screws.

Technical Data

Product AT Pneumatic Actuator
Structure AT Rack and Pinion Rotary Actuator
Rotary Angle 0-90 Degree
Air Supply Pressure 2.5-8 Bar
Actuator Body Material Aluminum Alloy or Stainless Steel
Surface Treatment Hard Anode Oxidation or Polish
Operating Temperature Standard Temperature:-20ºC ~ 80ºC
Low Temperature:-15ºC ~ 150ºC
High Temperature:-35ºC ~ 80ºC
Connection Standard Air interface: NAMUR
Mounting Hole: ISO5211 & DIN3337(F03-F25)
Application Ball Valve, Butterfly Valve & Rotary Machines
Cover Color Blue,Grey,Orange & Customized Colors as Customer needs
