Sanitary Encapsulated Stainless Steel Hygienic Butt-Weld Three-Way Ball Valve
- Place of Origin:
- Wenzhou, China
- Material:
- SS304/SS316L
- Connection:
- Welding
- Gasket:
- PTFE
- Packing:
- Suitable Packing for Sea/Air Transport
- Quantity:
- 10000 PCS Per Year
- Payment:
- T/T, L/C, Western Union
- Medium:
- Water, Oil
- Specification:
- 1/2"-4"
- Pressure:
- 0-10Bar
- Temperature:
- -20°~120°
- Shape:
- Square
- Type:
- Three Ways
Sanitary Encapsulated Stainless Steel Hygienic Butt-Weld Three-Way Ball Valve
- Our Three Ways Ball Valve including Sanitary T Port Ball Valve, Hygienic L Port Ball Valve, Sanitary Encapsulated Three Way Ball Valve, Sanitary Butt-weld 3 Way Ball Valve, Hygienic Male Thread Three Ways Ball Valve, Hygienic Tri-Clamp 3 Ways Ball Valve, Hygienic Pneumatic 3 Way Ball Valve, Sanitary Electric Actuator 3 Way Ball Valve.
- Precision Investment Cast Body, Belleville Washer Design for Automatic Compression of Stem Sealing, Available in T-Port or L-Port, Available in Low Carton Steel 316L or Stainless Steel 316, Contact Surface of End Cap Polished, ISO5211 Direct Mount.
Product Description
| Product Name: | Sanitary Encapsulated Stainless Steel Hygienic Butt-Weld Three-Way Ball Valve |
| Valve Body Material: | SS304/SS316L |
| Seal Material: | EPDM (standard)/SILICON/NBR |
| Mex working pressure: | 20Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1"-6", DN25-DN150 |
| Availably connection: | Welding |
| Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
| Operated: | Manual |
| Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
| Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc |

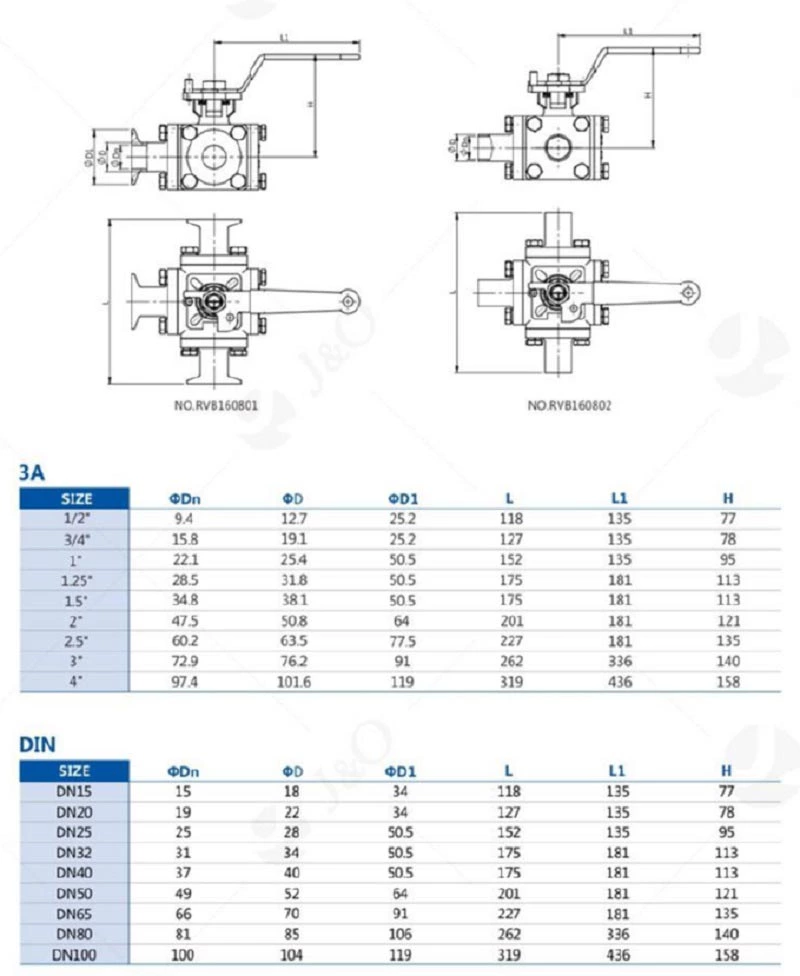

Product Parameter
