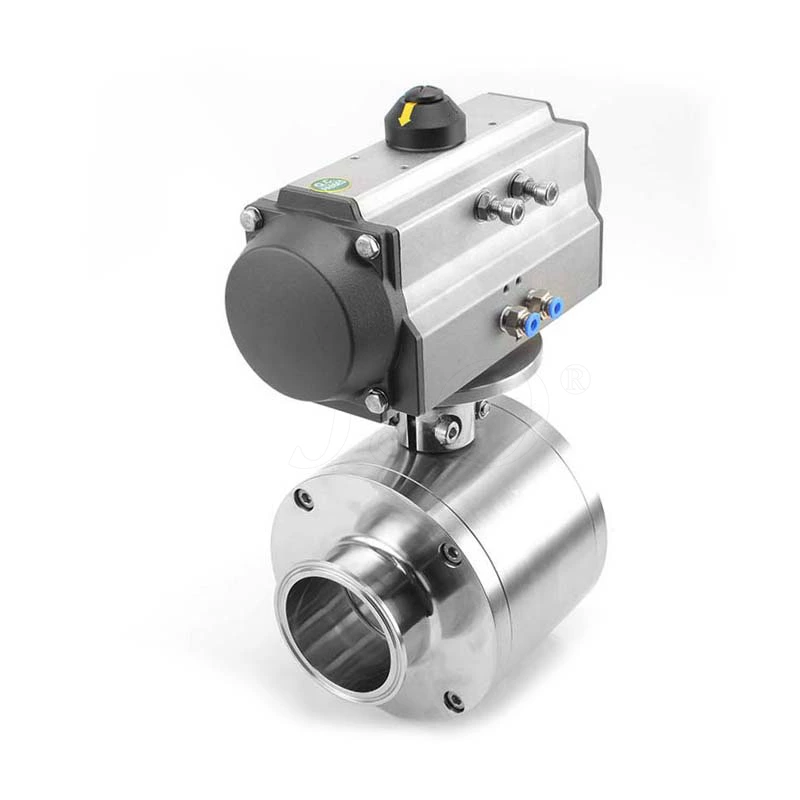

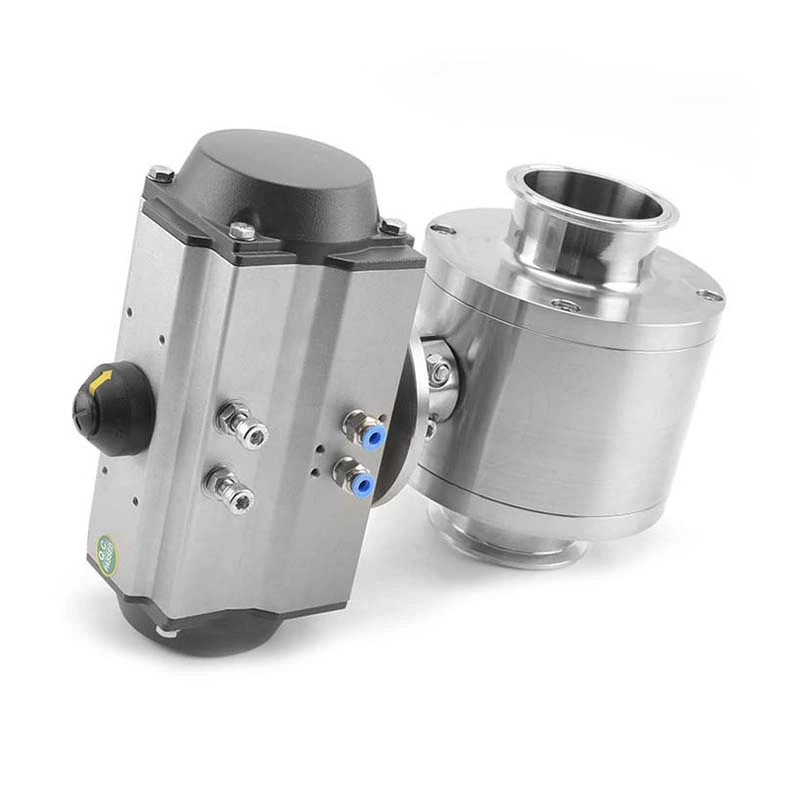

Sanitary Stainless Steel Customized Pneumatic Ball Valve
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Clamped
- Gasket:
- PTFE
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Pneumatic
- Payment:
- T/T, L/C, Western Union
Sanitary Stainless Steel Customized Pneumatic Ball Valve
-
There are special texture patterns on the surface, and the forging (extrusion molding at high temperature) process is adopted to make the structural molecules more compact, high strength and more durable.
-
Compact structure, 180 ° switch design, saving space
-
Three-stage, detachable at both ends, easy to disassemble and test, easy to clean.
-
Full bore, The medium can pass through uniformly and the stress is uniform.
Technical Data
| Material: | AISI304, AISI316L |
| Standard: | DIN/SMS/3A/ISO/IDF/RJT |
| Size: | DN25-DN100; 1/2"-4" |
| Connections: | Threaded, tri-clamp, welding |
| Gasket: | According to PTFE FDA 177.2600 |
