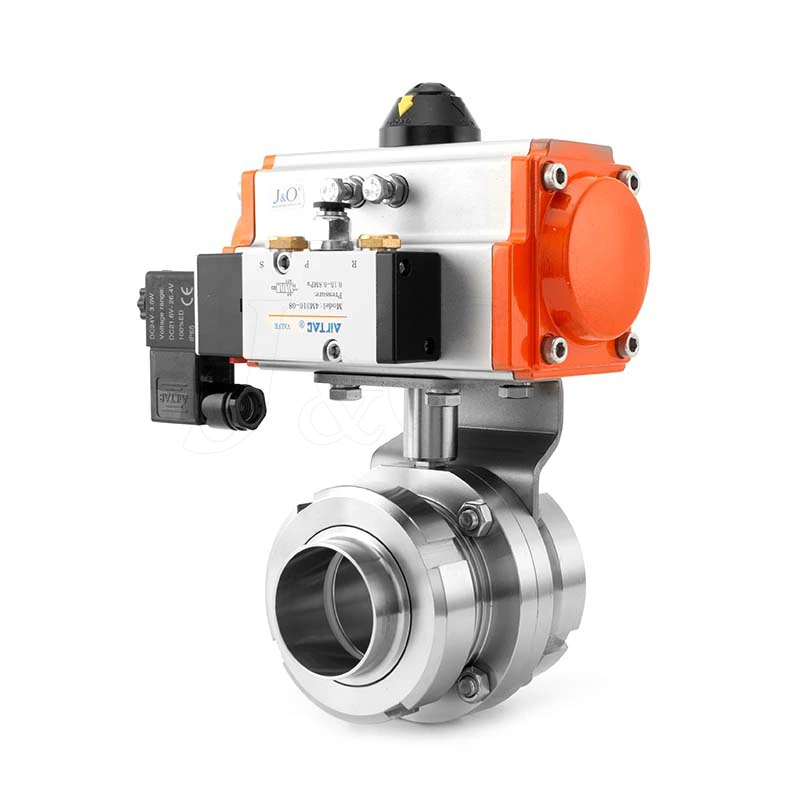

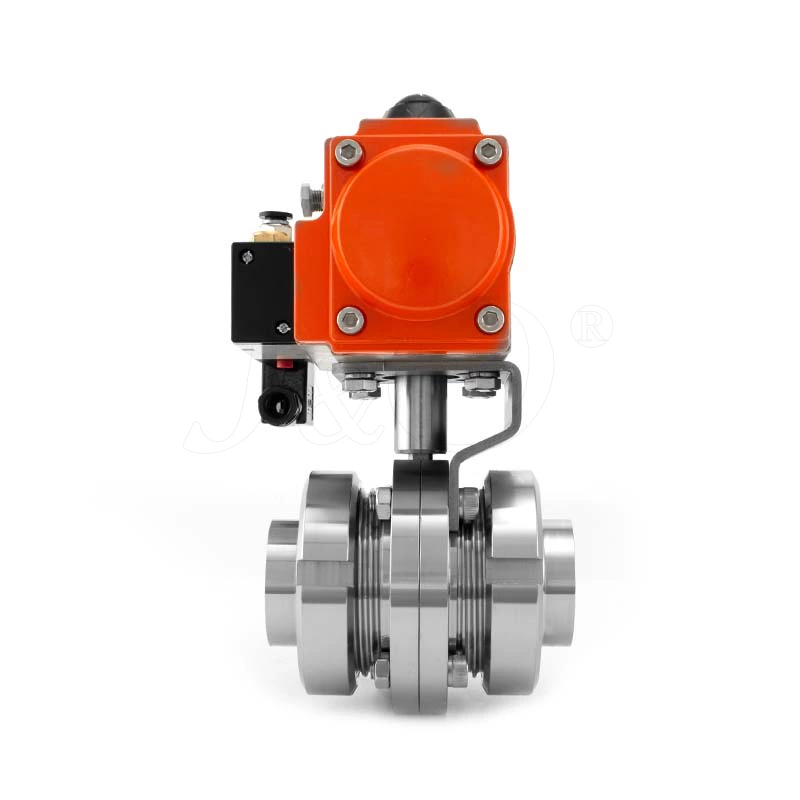

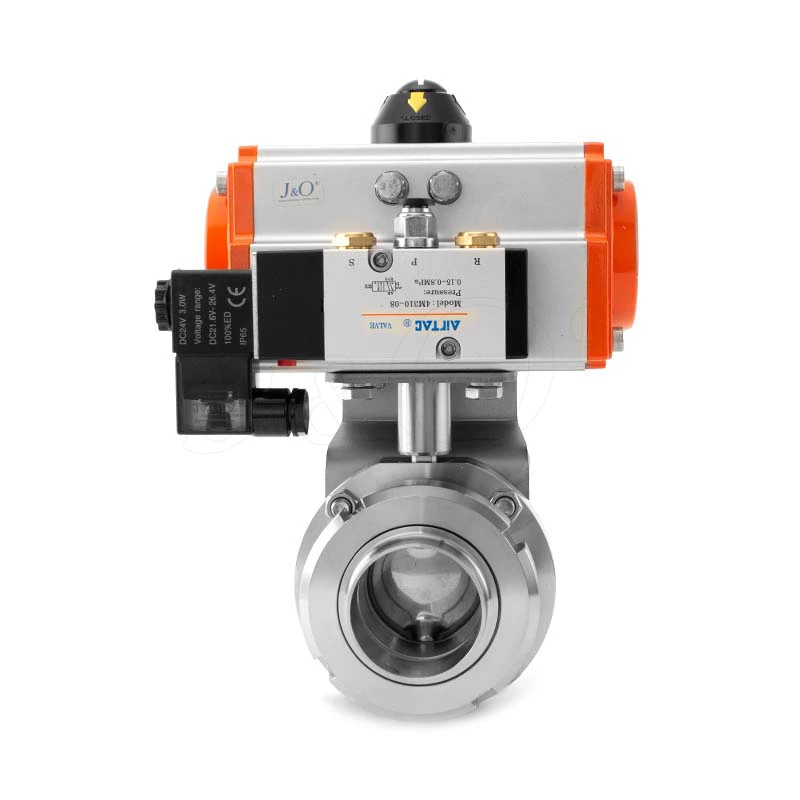

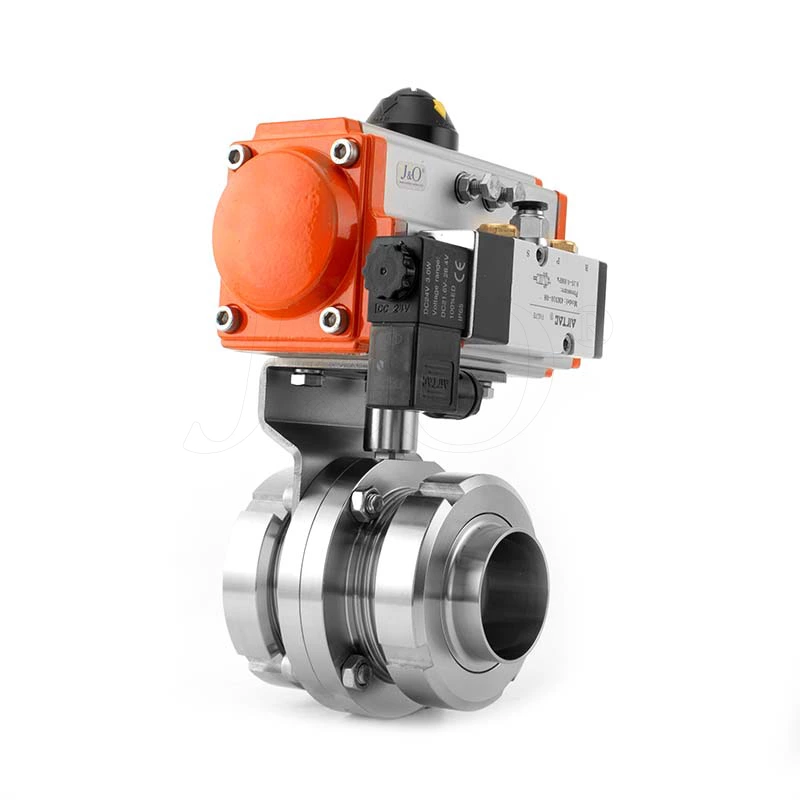

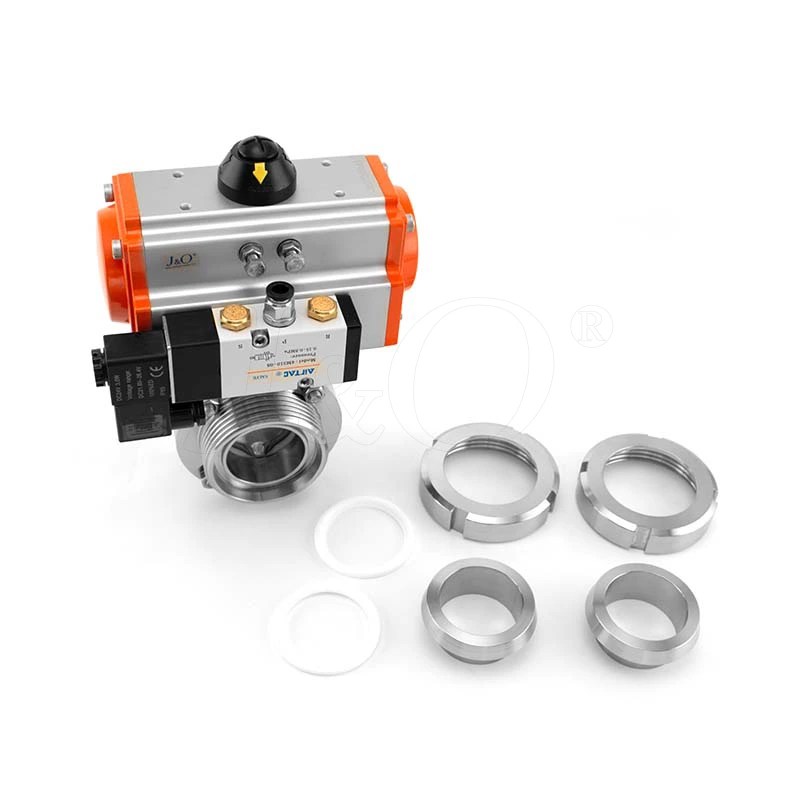

Sanitary Union Connection Pneumatic Butterfly Valve With Solenoid Valve

• Pneumatic Actuated Sanitary Butterfly Valve is the sanitary butterfly valves operated by pneumatic actuator.
• J&O is ability to provides both intelligent control and stainless steel actuator with multi-connected air actuated butterfly valve of tri-clamp, butt-weld, male/female threaded, flanged to 3A, DIN, SMS, RJT, ISO, IDF etc. The valve is whole stainless steel 304 or 316L.
• J&O pneumatic actuated sanitary butterfly valve is a idea choice for the processing industries of Food, Brewery, Beverage, Dairy, Pharmaceutical etc.
• APL-210N limit switches send location signal of actuator and valve to the field of remote-control station, which can be installed on the top of actuator directly. It complies with VDINDE3845 standard. It is equipped with field visible location indicator and adjusting cam. Adjusting cam is installed via spline and spring. You can adjust to the needed position when cam is separated from spline. Dismantle screws on the case and two interfaces of cable inlet G1/2". lntemal limit switch is connected to the terminal beforehand. There are 8 terminals, which can be used for magnetic valve connection.
• RS Components range of inline pneumatic control valves are available in either 3/2 or 5/2 functions with a choice of either solenoid or air operation. They are suitable for both lubricated and non-lubricated air supply. Using a compact and robust soft-seal spool design that has proven to be robust and reliable.

Technical Data
