Sanitary Stainless Steel Butterfly Valve

Place of Origin:
Wenzhou China
Material:
SS304/SS316L
Connection:
Clamped
Gasket:
EPDM/SILICON/NBR
Packing:
Suitable Packing For Sea/Air Transport
Quantity:
100000 PCS Per Year
Payment:
T/T, L/C, Western Union
Medium:
Water, Oil
Specification:
1"-6"
Pressure:
0-10Bar
Temperature:
-20°~120°

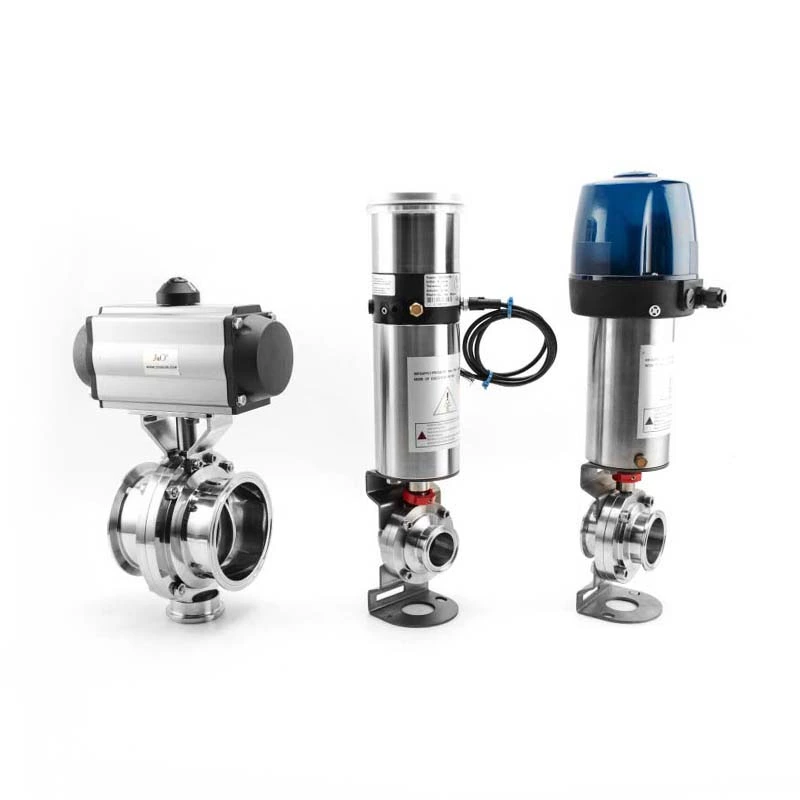

Sanitary Stainless Steel Butterfly Valve

  • J&O Sanitary Butterfly Valve including Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butterfly Valve, Hygienic Electric Butterfly Valve. For the manual handle, we have Stainless Steel Pull Handle, Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.
  • The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
  • All of the products have been 100% press tested before shipping.
  • It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
  • EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.

Product Description

Product Name: Sanitary Stainless Steel Butterfly Valve
Valve Body Material: 1.4404/1.4301, SS304/SS316L
Seal Material: EPDM (standard) FPM/SILICON/NBR, FDA177.2600
Max working pressure: 20Bar
Max. Working Temperature: 120 degree C
Availably size: 1"-6", DN25-DN150
Availably connection: Clamped
Availably standard: 3A/DIN/SMS/RJT/ISO/IDF
Operated: Pneumatic, Manual
Control: Sensor, C-TOP, C-top controller(AS-I)
Certificate: ISO, PED/97/23/EC, FDA.177.2600
Application scope: Dairy,food, beverage, pharmacy, cosmetic, Chemical, etc
