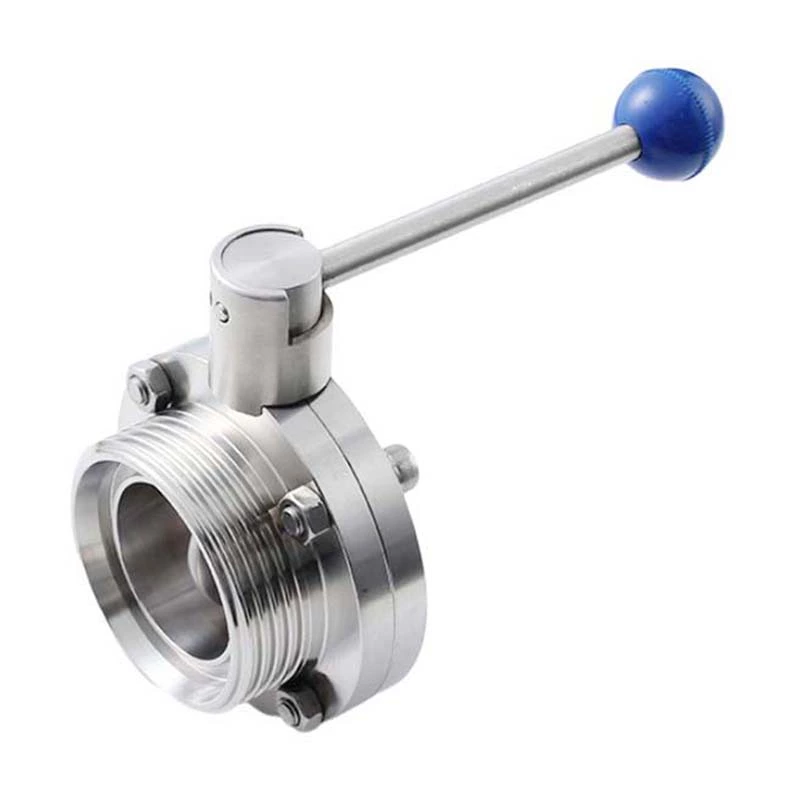

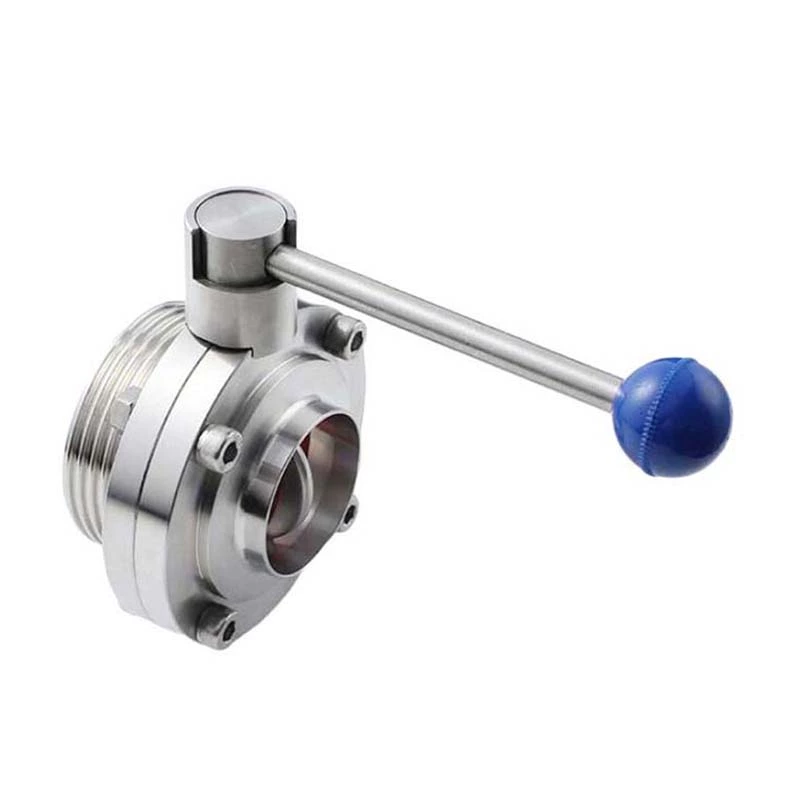

Sanitary Stainless Steel Male Welded Butterfly Valve
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Thread-weld
- Gasket:
- EPDM / Silicon / NBR / FKM
- Working Temperature:
- -20°~120°
- Working Pressure:
- 0-10Bar
- Operation:
- Manual
Sanitary Stainless Steel Male Welded Butterfly Valve
- We can supply Sanitary Butt-Weld Butterfly Valve, Sanitary Tri-Clamp Butterfly Valve, Hygienic Male Thread Butterfly Valve, Sanitary Pneumatic Butterfly Valve, Hygienic Electric Butterfly Valve. For the manual handle, we have Stainless Steel Pull Handle, Plastic Multi Position Gripper Handle and Stainless Steel Multi Position Handle.
- The Butterfly valve body and disk are all made from full CNC machined, high grade level polish.
- All of the products have been 100% press tested before shipping.
- It is necessary you specify at the time when orders be placing if heat numbers and MTR's are required.
- EPDM, Silicon and Viton seats are available for installing in our butterfly valves which are suitable for many applications in such as food, dairy, beverage, meat processing, chemical, and many other industries.
Technical Data
Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
Seal Material: | EPDM (standard) FPM/SILICON/NBR, FDA177.2600 |
Mex working pressure: | 10Bar |
Max. Working Temperature: | 120 degree C |
Availably size: | 1"-6", DN25-DN150 |
Availably connection: | male-weld |
Availably standard: | 3A/DIN/SMS/RJT/ISO/IDF |
Operated: | Manual |
Control: | Sensor, C-TOP, C-top controller(AS-I) |
Certificate: | ISO, PED/97/23/EC, FDA.177.2600 |
Handle application: | plastic handle |
Application scope: | Dairy,food, beverage, pharmacy, cosmetic, Chemical,etc |
