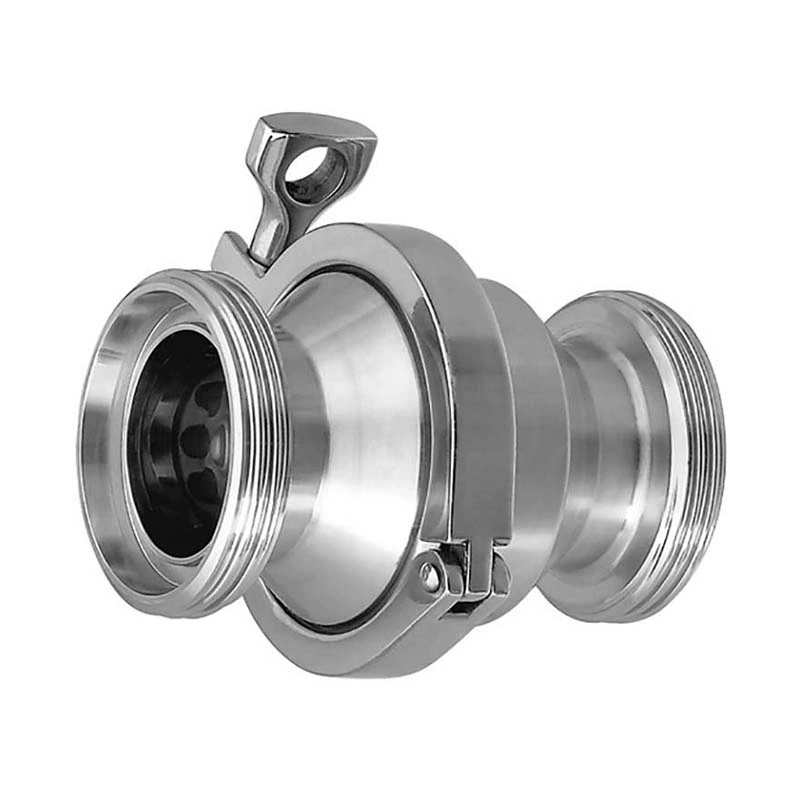

Sanitary Check Valve Male-Male
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Threaded
- Gasket:
- Silicone, EPDM, Viton, NBR
- Working Temperature:
- -10 degree to +120 degree (EPDM)
- Working Pressure:
- 0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100)
- Payment:
- T/T, L/C, Western Union
Sanitary Stainless Steel Thread Male Check Valve
-
We manufacture Sanitary Tri Clover Check Valve, Hygienic Welding Check Valve, Sanitary Male Check Valve, Sanitary Union Type Check Valve, Hygienic Flanged Type Check Valve.
-
Check valve can prevent the fluid from flowing back and ensures that it flows in only one direction.
-
It can be used to prevent the less of prime of the pump and to avoid pipe-hammering.
-
It is used in the food-processing, beverage, wine-making, oil-making, cosmetics, pharmaceutical and chemical industries.
-
The valve opens when the pressure of the fluid exceeds the pressure exerted by the pump spring. When the two pressures are equalized, the valve closes. A stronger counter-pressure allows the valve to close.
Technical Data
| Product Name: | Sanitary Check Valve |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 19mm - 200mm or DN15-DN100 |
| Connection Way: | Thread |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Finishing: | Ra≤0.8 |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Opening Pressure: | 0.3 Bar (DN-25), 0.2 Bar (DN-32/40),0.1Bar(DN-50/100) |
| Packing Details: | within carton box or plywood case |
| Applied Industries: | Dairy, Cosmetic, Pharmaceutical, Food and Beverage Industries |

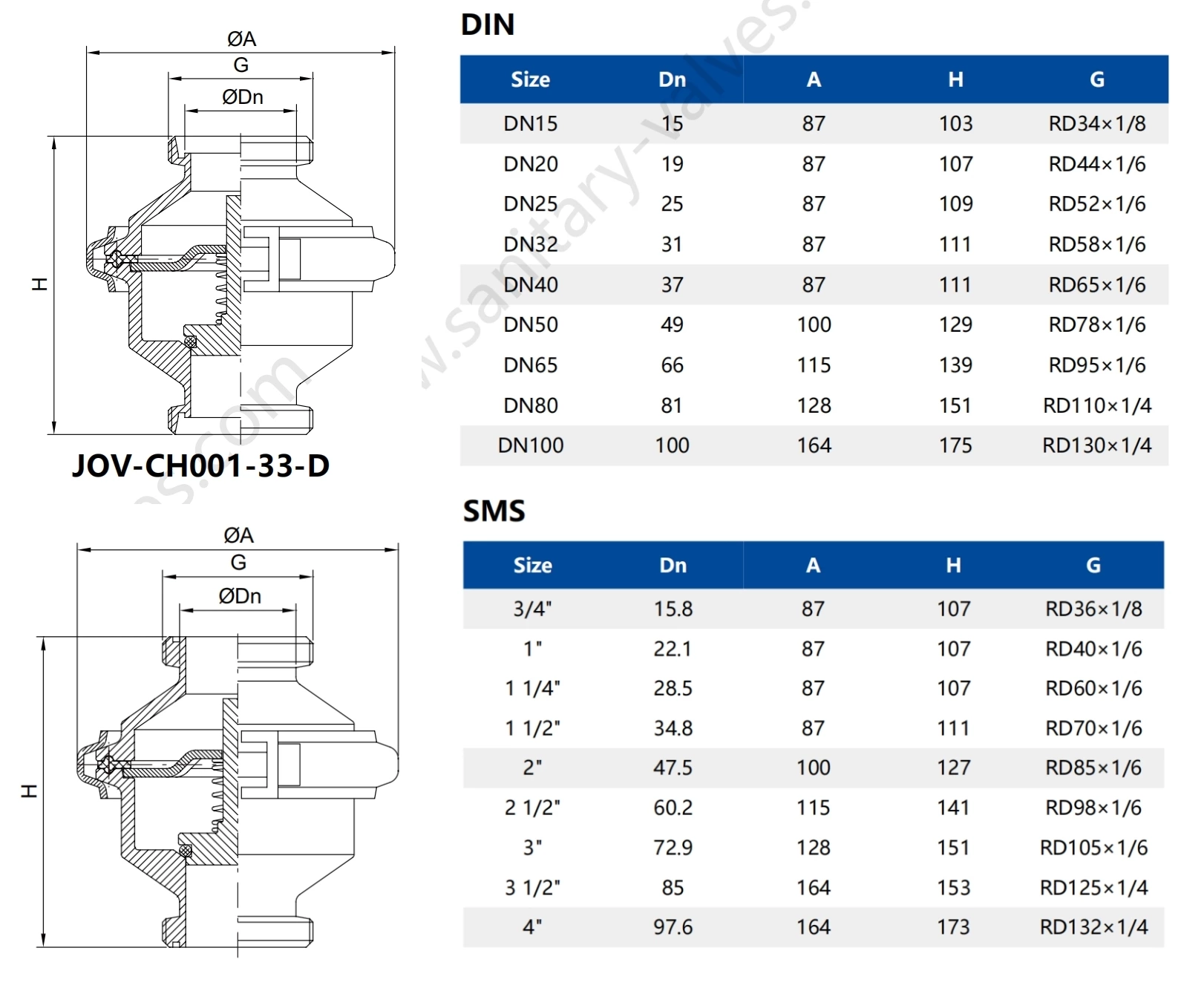

Product Parameter

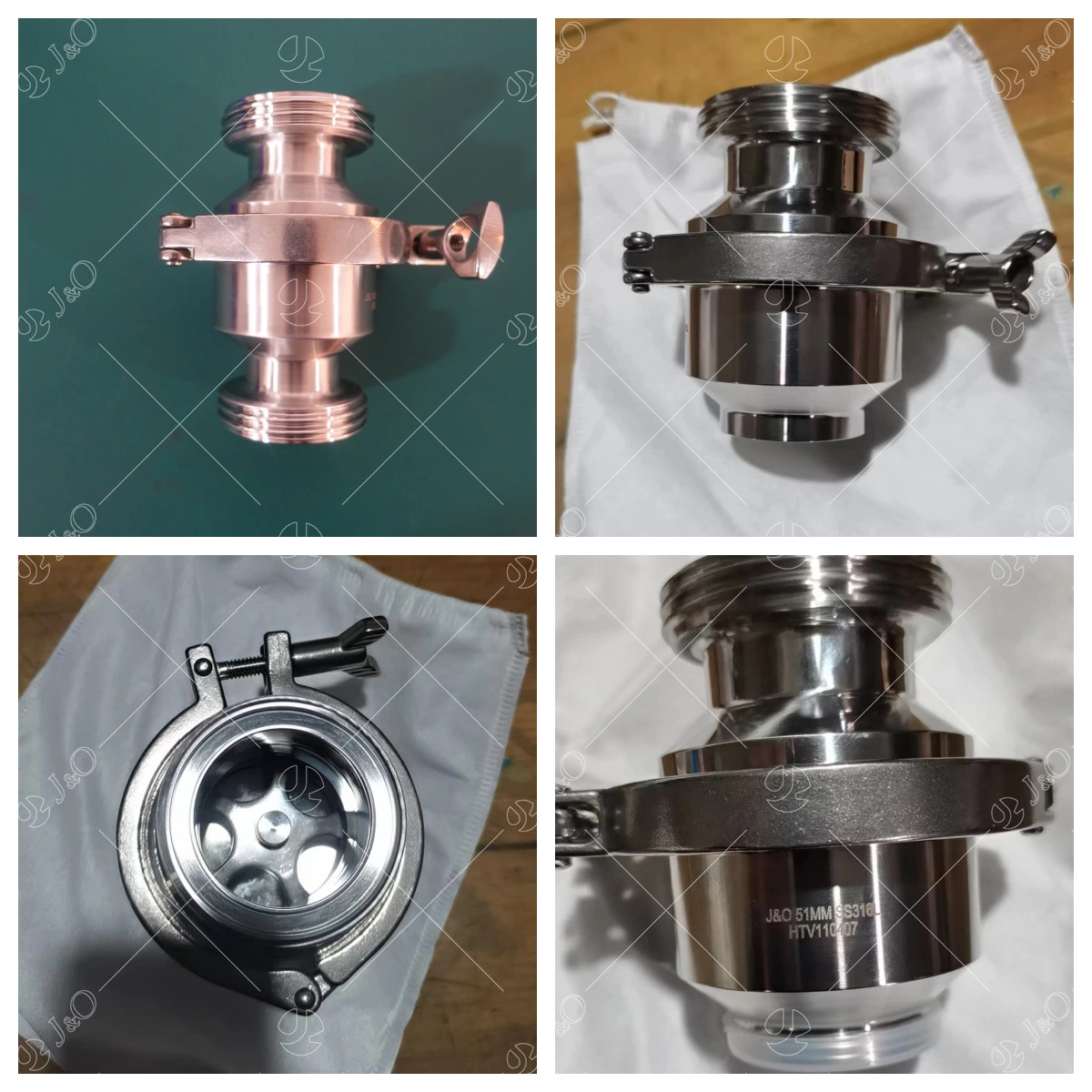

Product Pictures
