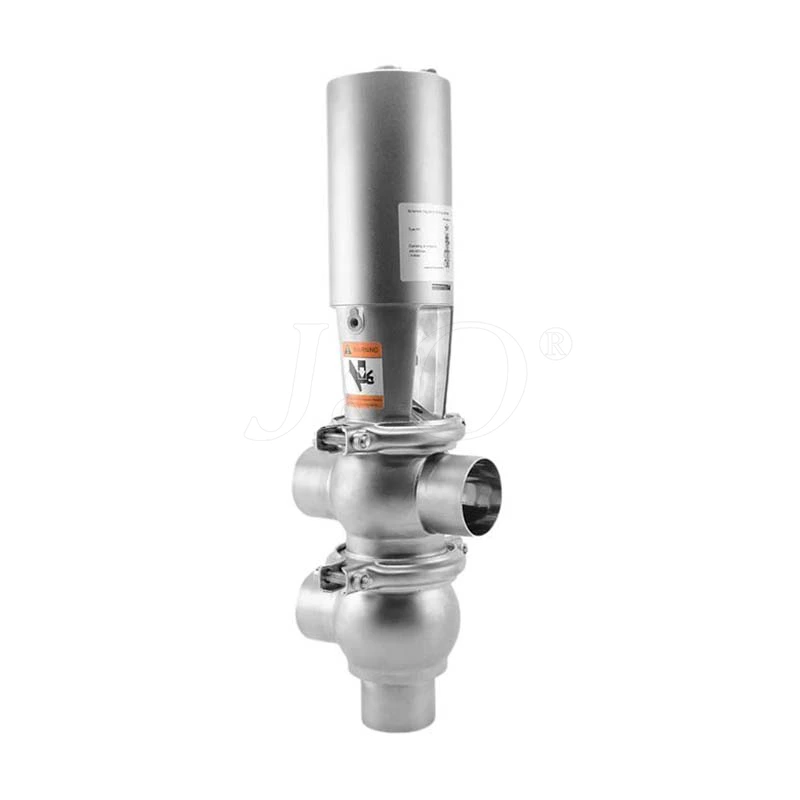

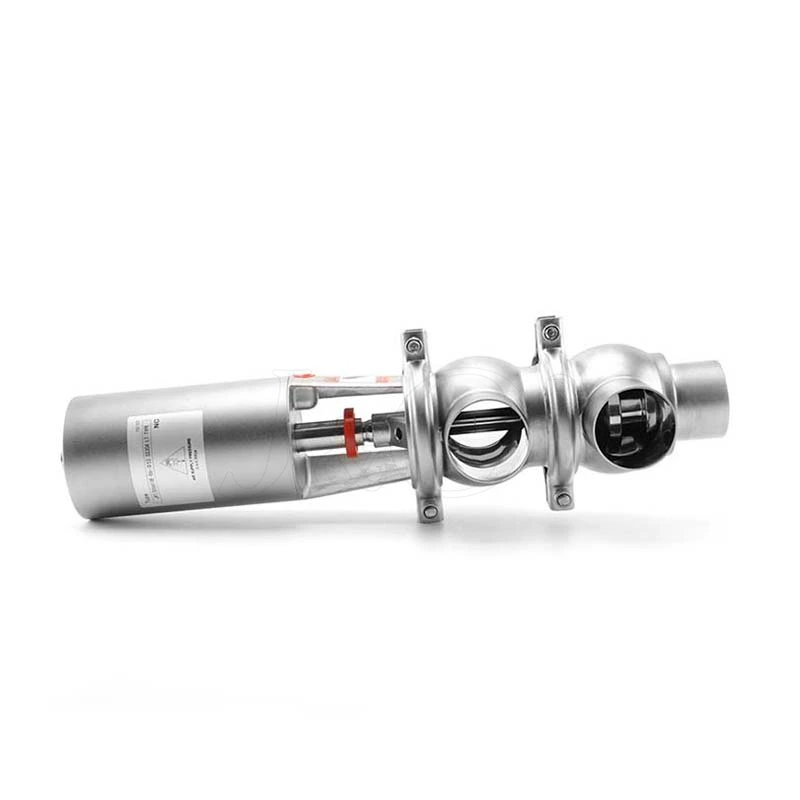

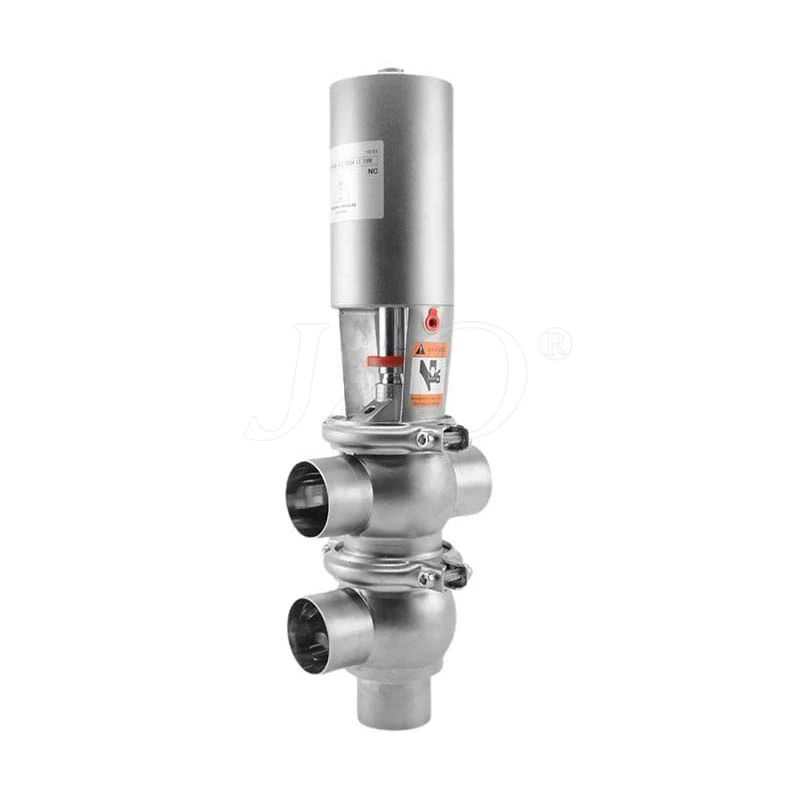

Sanitary Stainless Steel Pneumatic TL Type Welded Reversing Valve
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Welded
- Gasket:
- PTFE, EPDM, NBR
- Working Temperature:
- 120 degree C
- Working Pressure:
- 10Bar
- Operation:
- Pneumatic
- Payment:
- T/T, L/C, Western Union
Sanitary Stainless Steel Pneumatic TL Type Welded Divert Valve
-
Pneumatic seat valves conbined a piston within a cylinder, ball housing, stem, and connected end parts and are developing to various flowing types such as F type and others like LL, TT, LT, Y, T, L, TL....
-
The divert valves can be working automatically by air in case of the valves are equipped with CSEs control boxes which are designed for signal transfer or individually valve working control.A piston valve is a device used to control the motion of fluid in tube according to linear motion of a piston within a cylinder.
Technical Data
| Material quality | AISI304, AISI304L, AISI316, AISI316 |
| Size | 1"-4" or DN25-DN100 |
| Standards | DIN,SMS,ISO,IDF,RJT,3A,etc |
| Connection End | Threaded, Welded, Clamped |

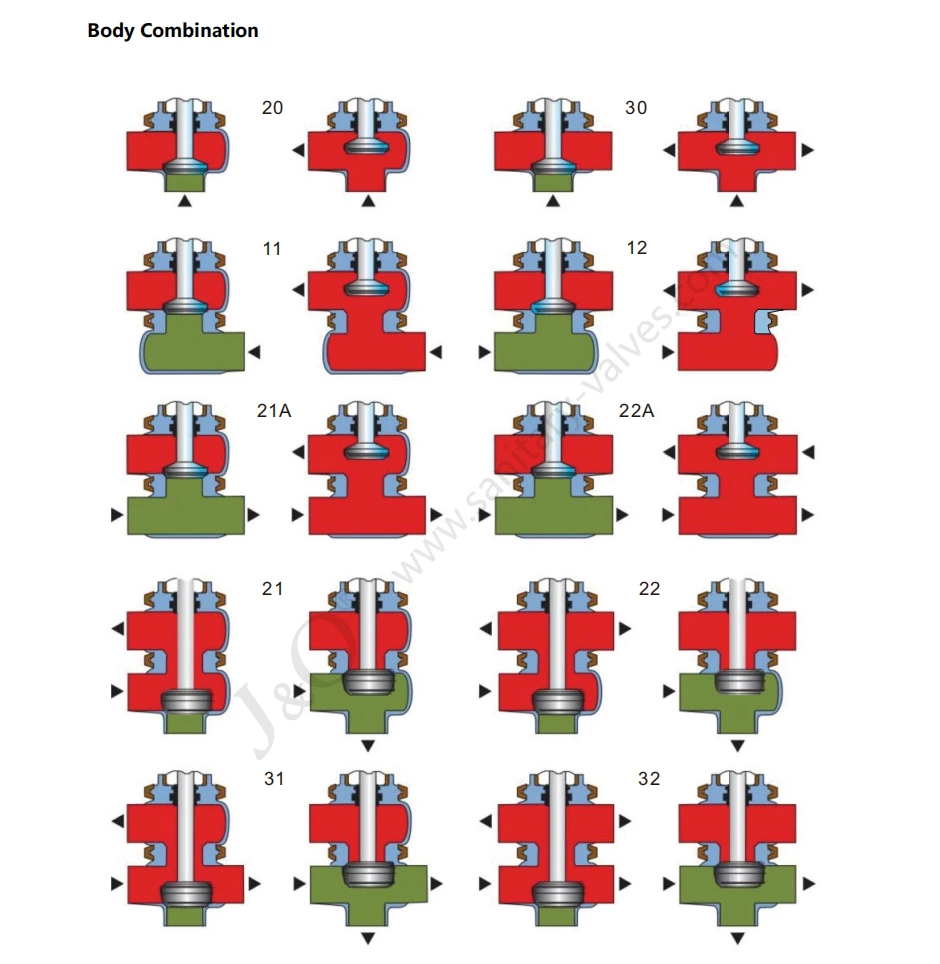

| Types | L,T,L/L,L/T, T/L,T/T |
Product Parameter

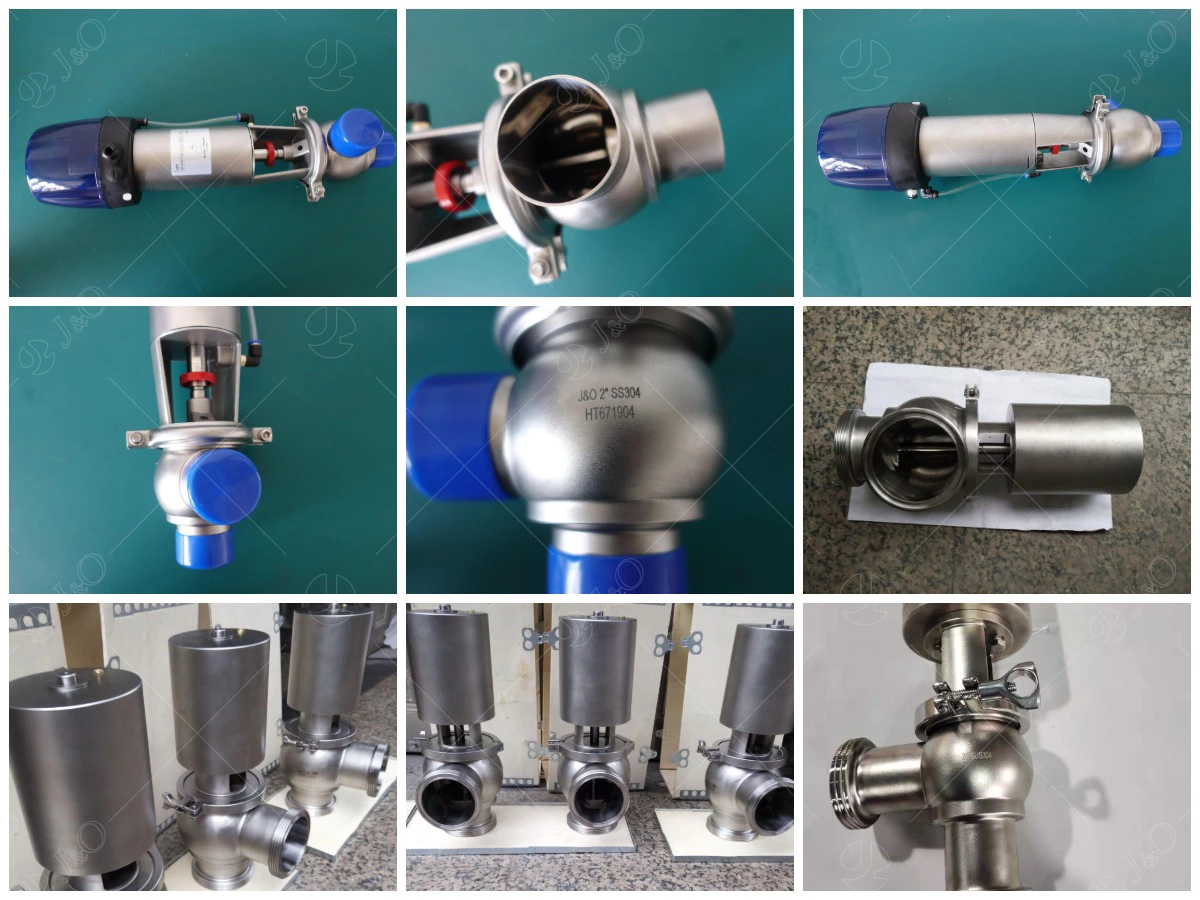

Product Pictures
