Sanitary Stainless Steel DIN 11851 Complete Union
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Weld
- Gasket:
- EPDM / Silicon / NBR / FKM
- Working Temperature:
- -20°~+120°
- Working Pressure:
- 0-10Bar
- Payment:
- T/T, L/C, Western Union

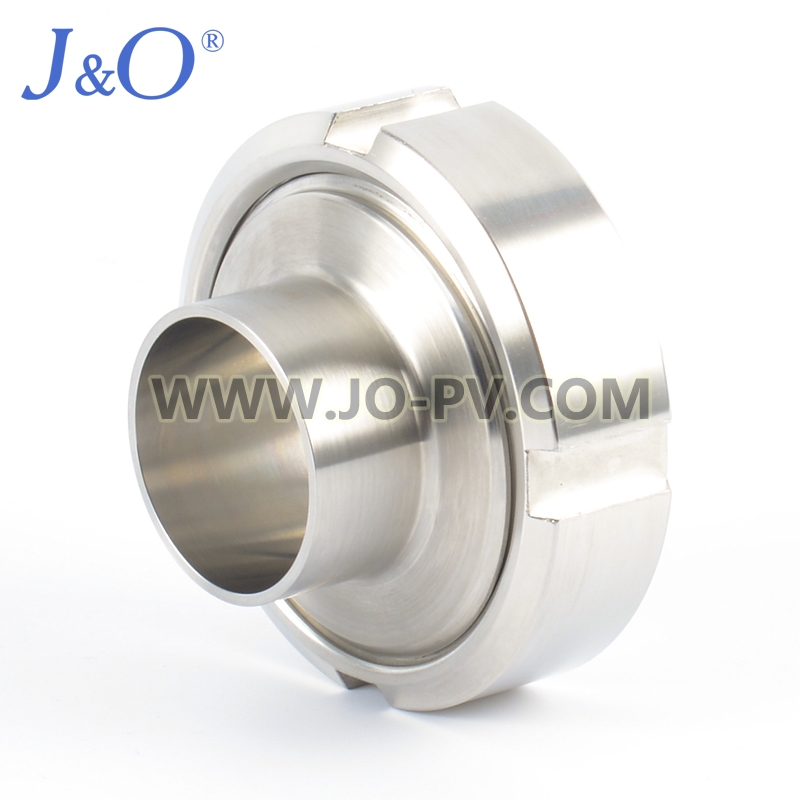

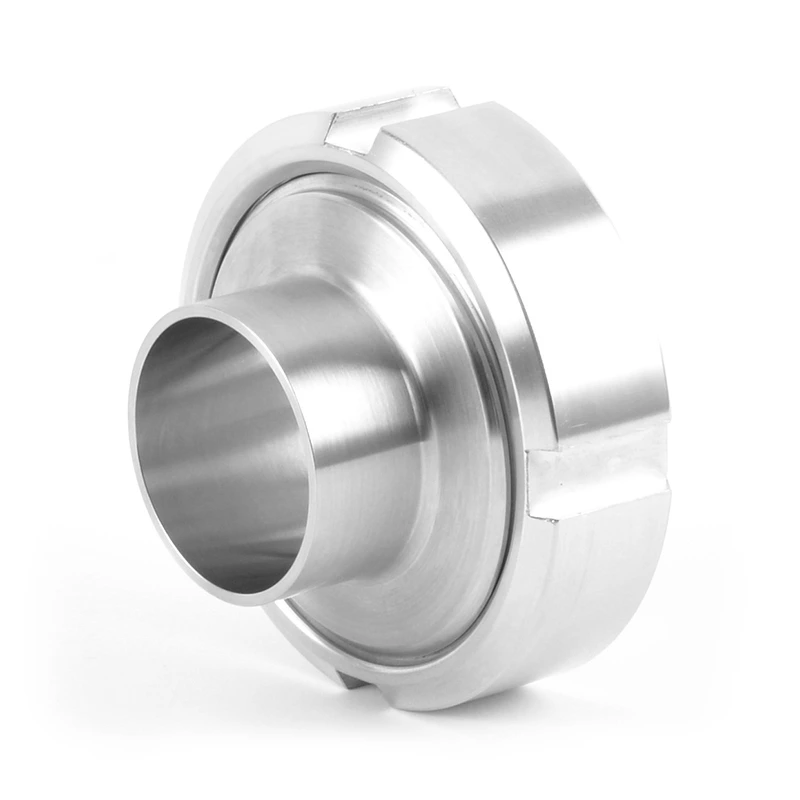

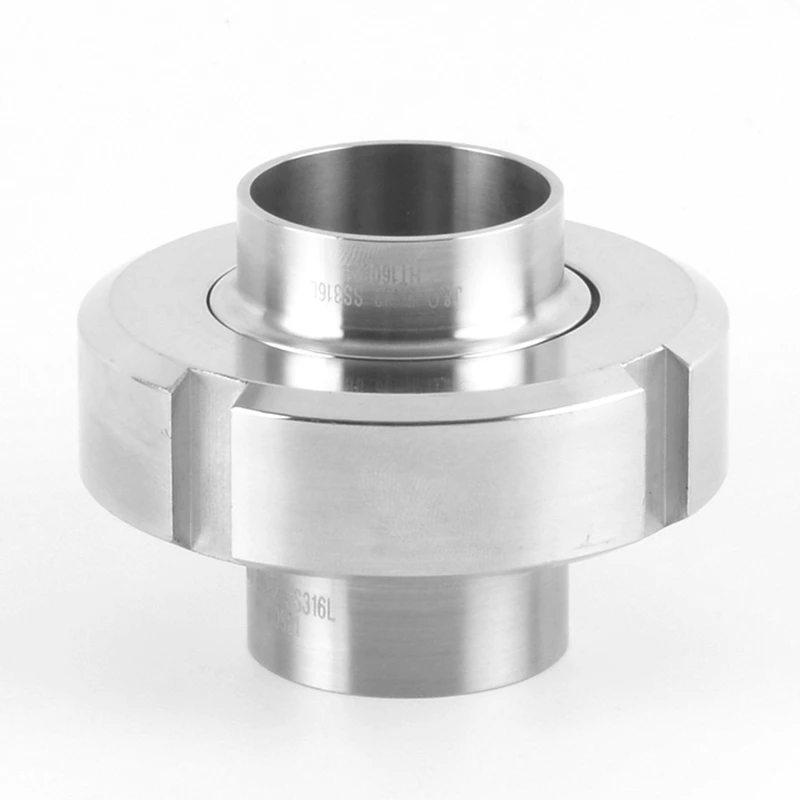

Sanitary Stainless Steel DIN 11851 Union
-

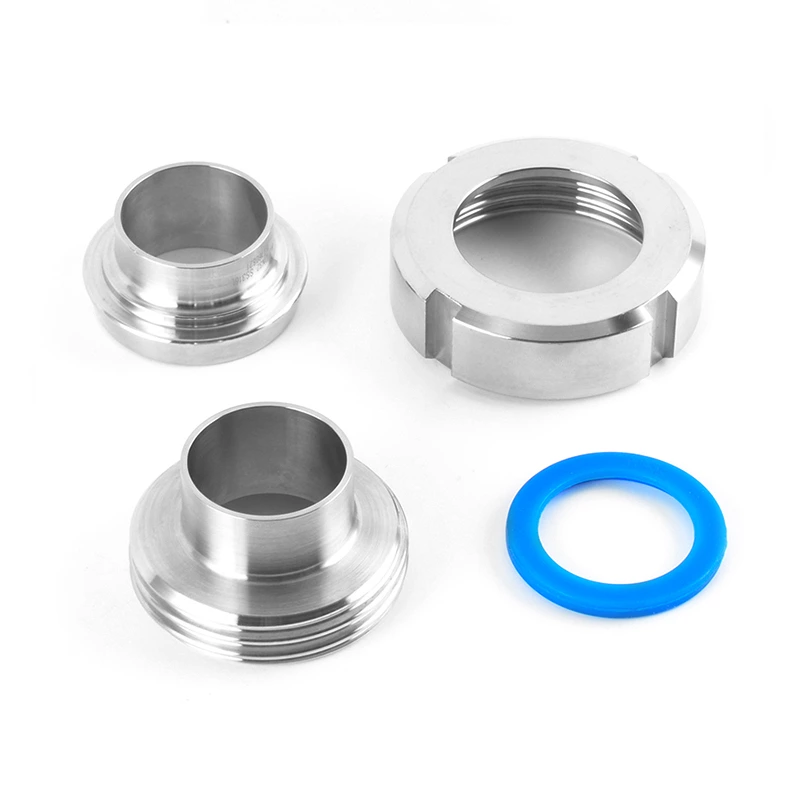

The Sanitary DIN complete Union including four parts, DIN Welding Male, DIN Welding Liner, DIN Union Gasket, DIN Nut.
-
It is widely applied to many fields, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc.
-
It is suitable for flexible and easy maintenance.
-
It is especially suited for processes where the load on seals is extra high, where easy control and replacement of seals is necessary and where optimal cleaning is required.
Technical Data
| Material: | SS304/SS316L |
| Seal Material: | Silicone/EPDM/FKM/NBR |
| Max working pressure: | 10Bar |
| Max. Working Temperature: | 180 degree C |
| Availably size: | DN15-DN150 |
| Availably standard: | DIN |

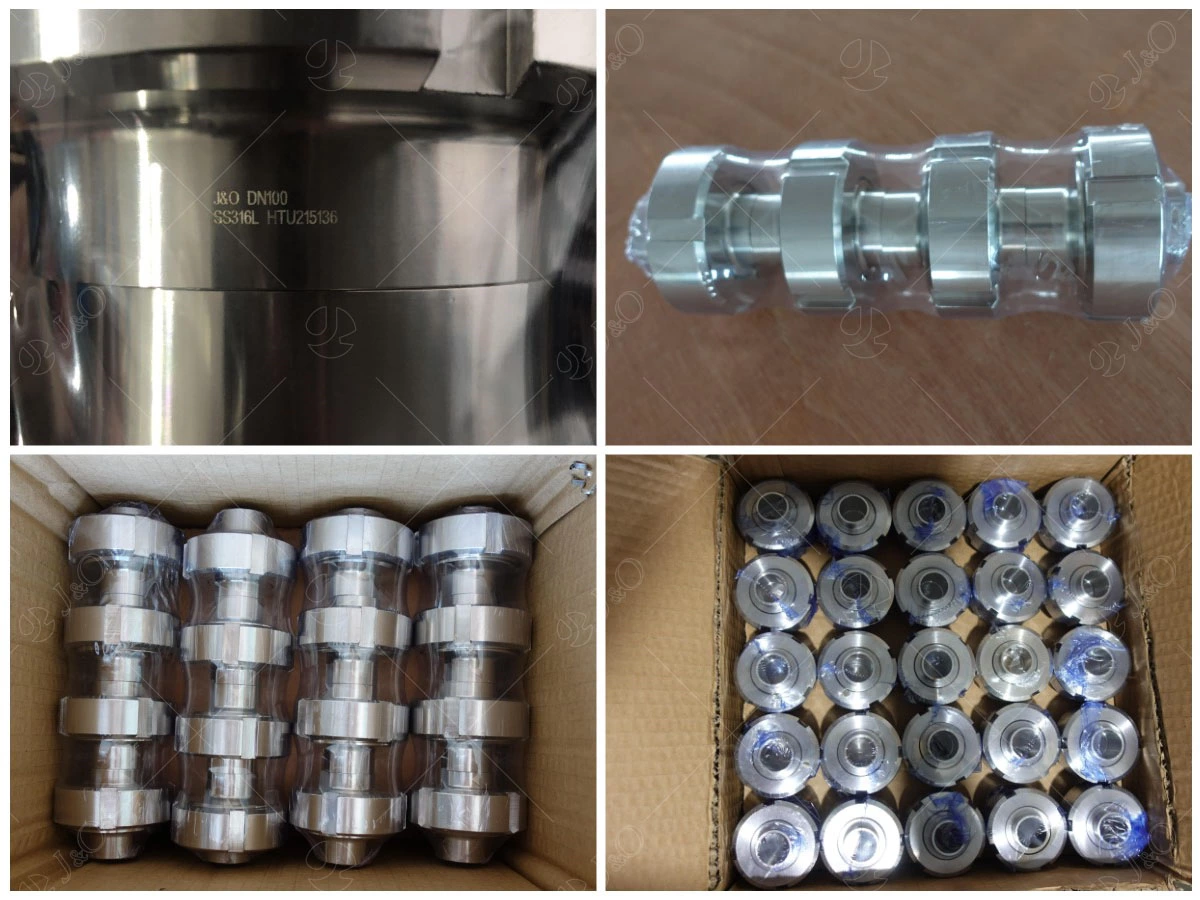

Product Pictures
