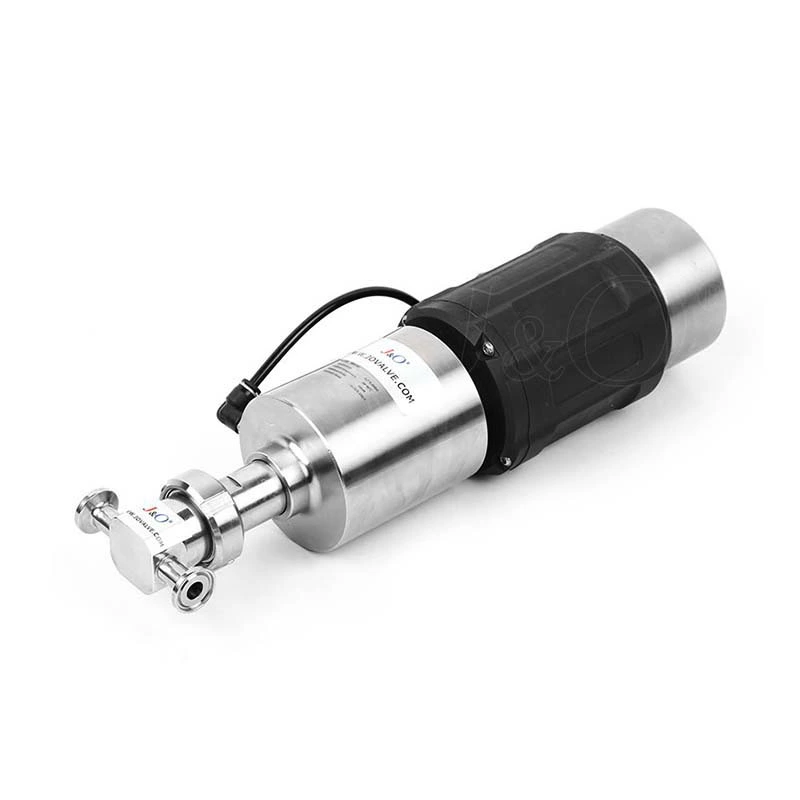

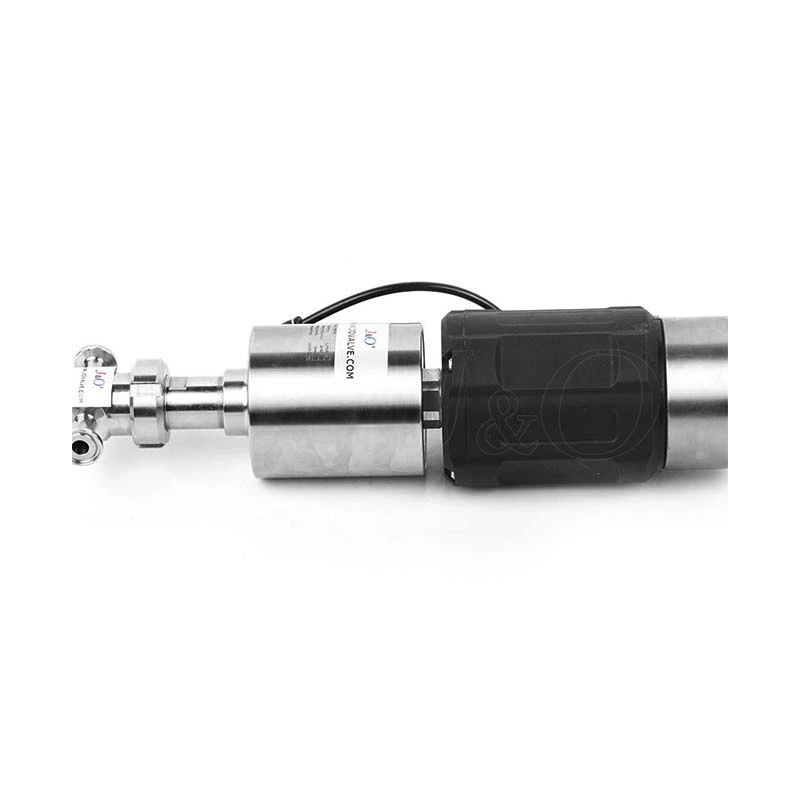

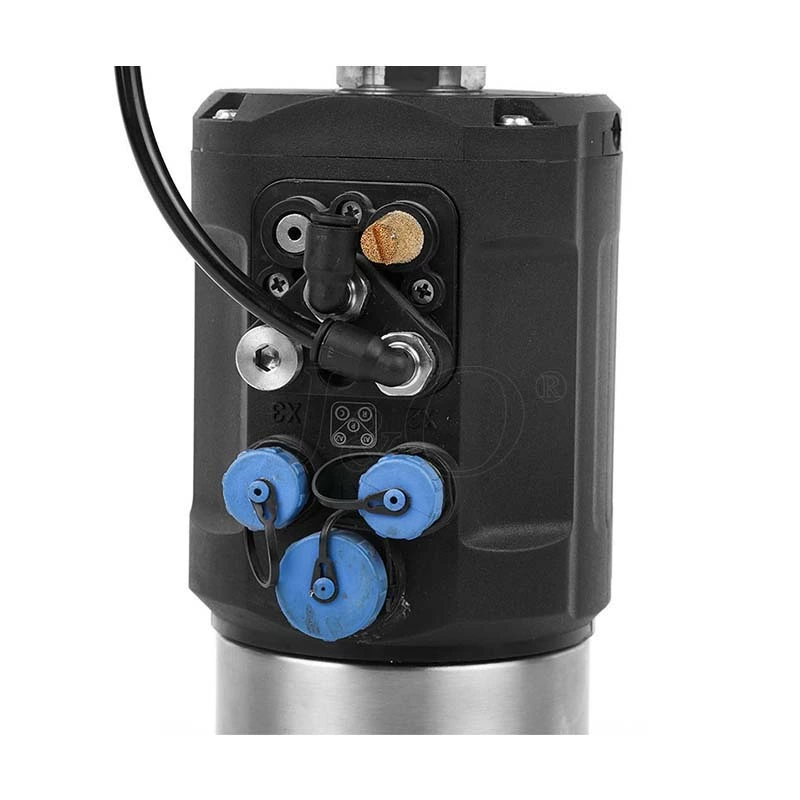

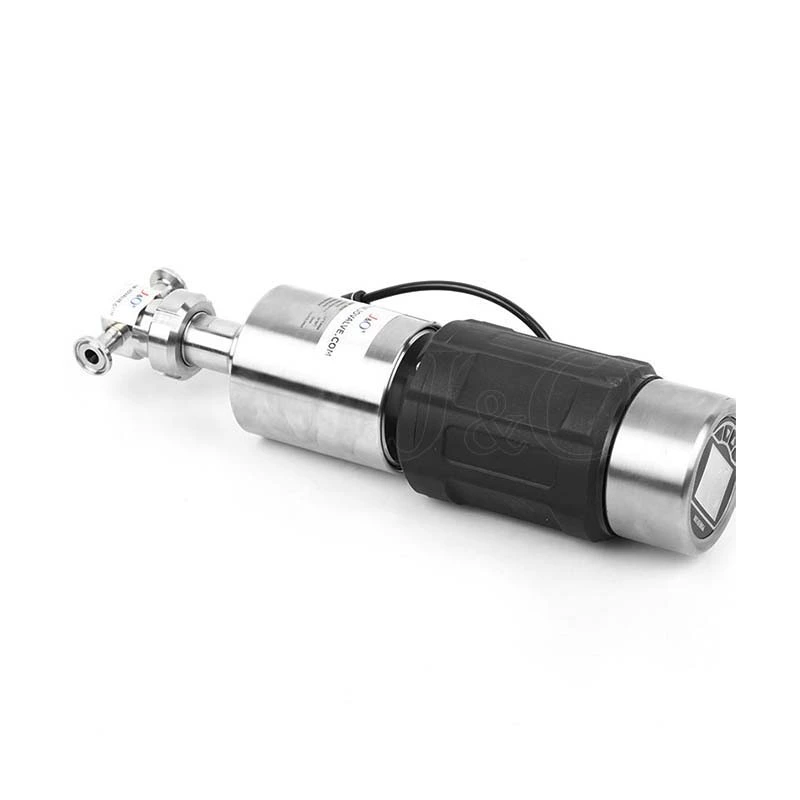

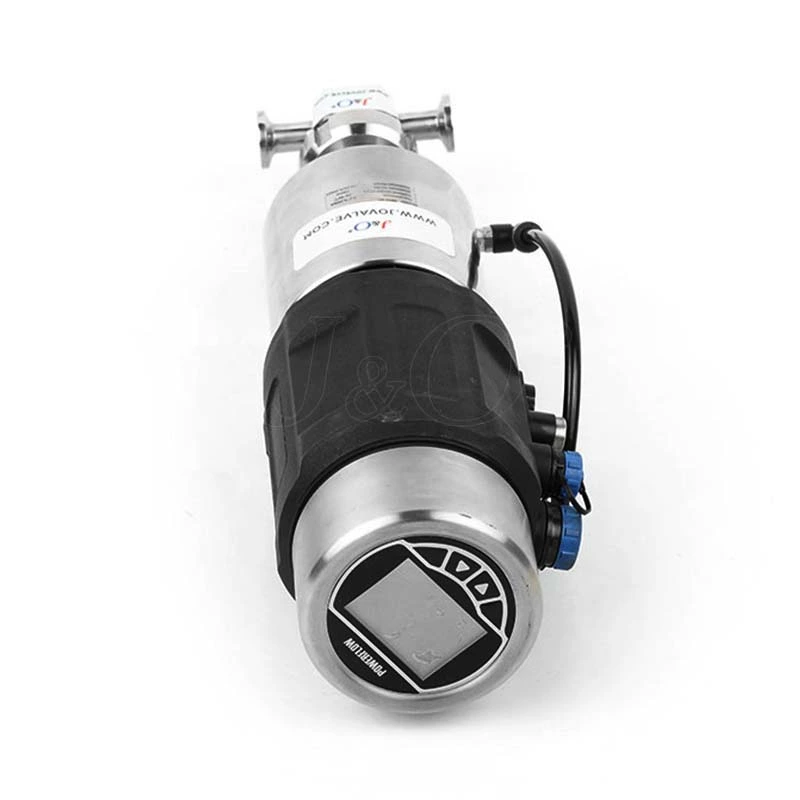

Sanitary Stainless Steel Pneumatic Flow Regulating Valve
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Welded
- Gasket:
- EPDM, SILICON, VITON, PTFE
- Working Temperature:
- -10 degree to +120 degree
- Working Pressure:
- 10Bar
- Operation:
- Pneumatic
- Payment:
- T/T, L/C, Western Union
Sanitary Stainless Steel Pneumatic Flow Regulating Valve
-
The sanitary regulating valve is a type of control valve to adjust flow rate and pressure of downstream mediums. Found in most sanitary production lines, these pressure regulators allow greatly improve safety and quality control.
-
The series of valve is major let the medium reach the purpose of reversing or end stop, because the goods tightness and cleanability, they are extensively use to different sanitary industry areas.
-
Manual/pneumatic set the valve opening degree to make a pressure drop to the medium passing through the valve, thus regulating the medium pressure, flow and temperature of pipeline system.
Technical Data
| Name: | Sanitary Pneumatic Flow Regulating Valve |
| Body Material: | AISI304,AISI316L |
| Diaphragm Material: | SS304+PTFE, SS316L+PTFE |
| Size: | DN10，DN15 |
| Standards: | DIN,3A,SMS,ISO,IDF |
| Max pressure: | PN16 |
| Working temp: | -20°C to +160°C |
| Connection: | Weld,clamp,thread |
| Applications: | Pharmacy, beer, food, dairy, brewing |
Product Parameter
