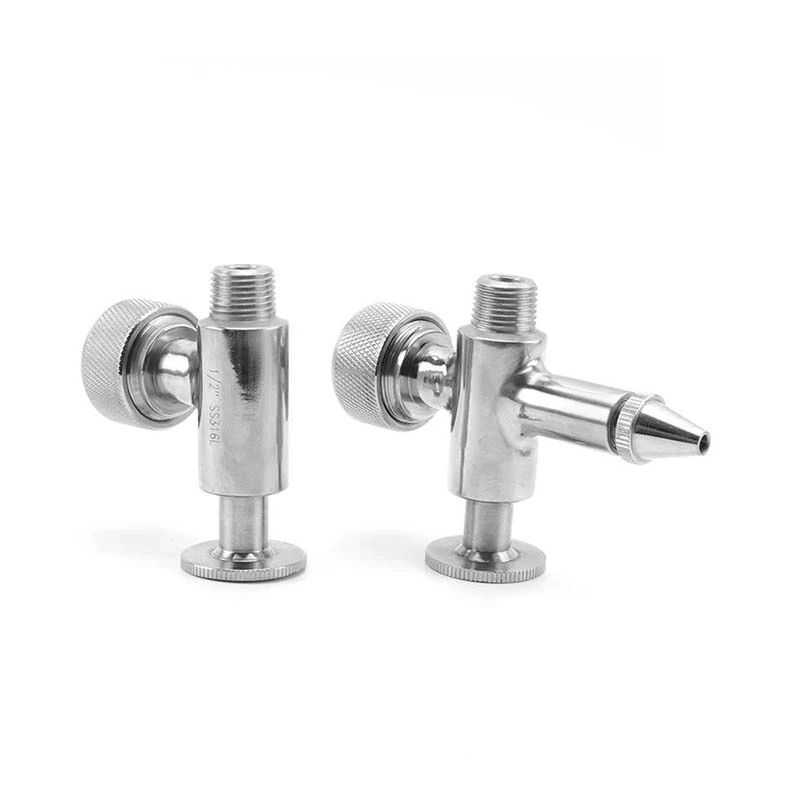

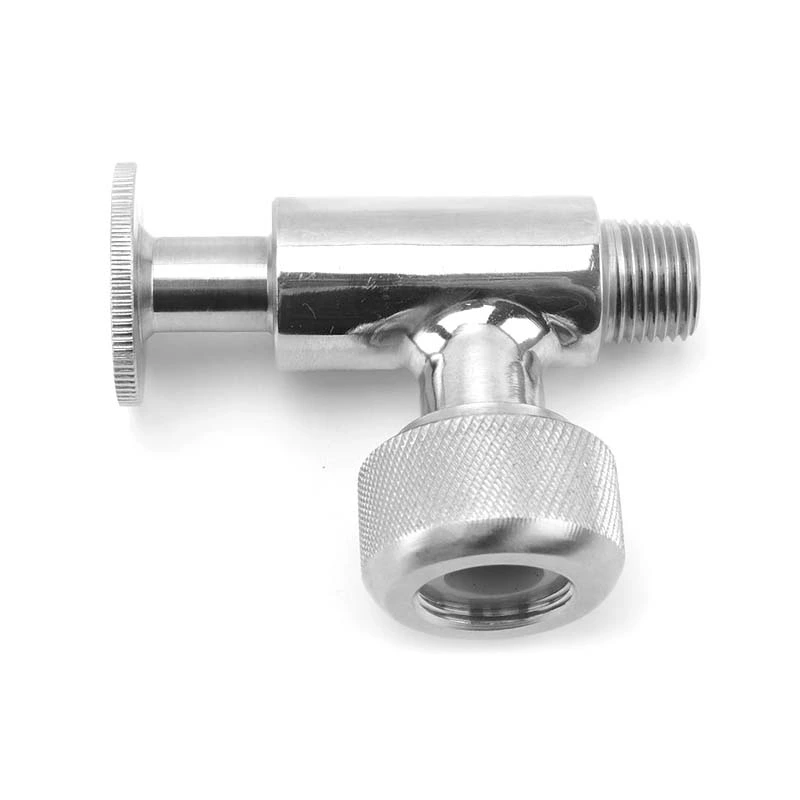

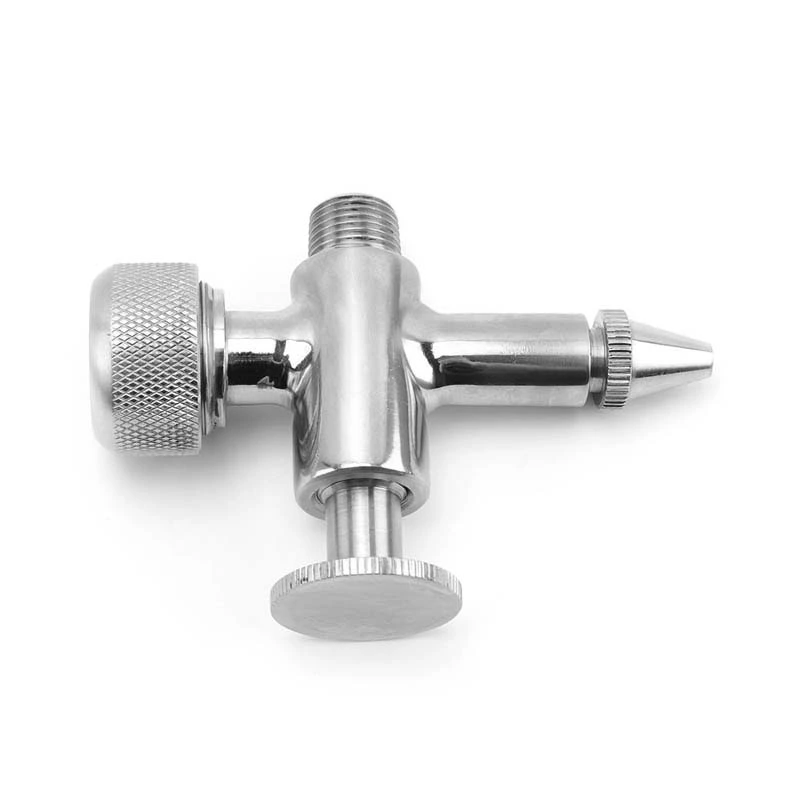

Level Valve Thread
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Male Threaded
- Gasket:
- EPDM,PTFE
- Working Temperature:
- -10 degree to +120 degree (EPDM)
- Working Pressure:
- 10Bar
- Operation:
- Manual
- Payment:
- T/T, L/C, Western Union
Sanitary Stainless Steel Liquid Level Gauge With Sampling Valve
-
We can supply Sanitary Thread Liquid Level Guage, Hygienic Clamped Liquid Level Guage, Sanitary Liquid Level Guage with Sampling Valve.
-
The level gauge is mainly applied to the tank equipment. The two same gauges or two different guages are assembled on the tank so that the liquid condition or capacity can be odserved and the sample can be extracted.
Technical Data
| Product Name: | Tank Liquid Level Gauge |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | EPDM,PTFE |
| O ring seal: | NBR |
| Max. Working Pressure: | 10Bar |
| Max. Working Temperature: | 120 degree C |
| Availably size: | 1/2" |
| Availably connection: | Thread/ Clamp/ Weld |
| Availably standard: | 3A |
| Operated: | Manual |
| Certificate: | FDA |

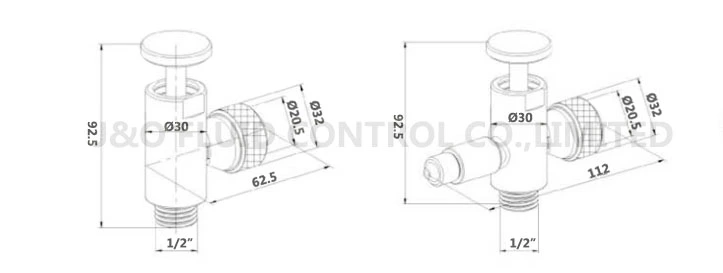

Product Parameter
