Sanitary Clamped Sight Glass with Protection Cover

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Clamp,tri Clamp,Clamped
Gasket:
EPDM, SILICON, VITON, PTFE
Working Temperature:
-10 degree to +120 degree (EPDM)
Working Pressure:
10Bar
Payment:
T/T, L/C, Western Union

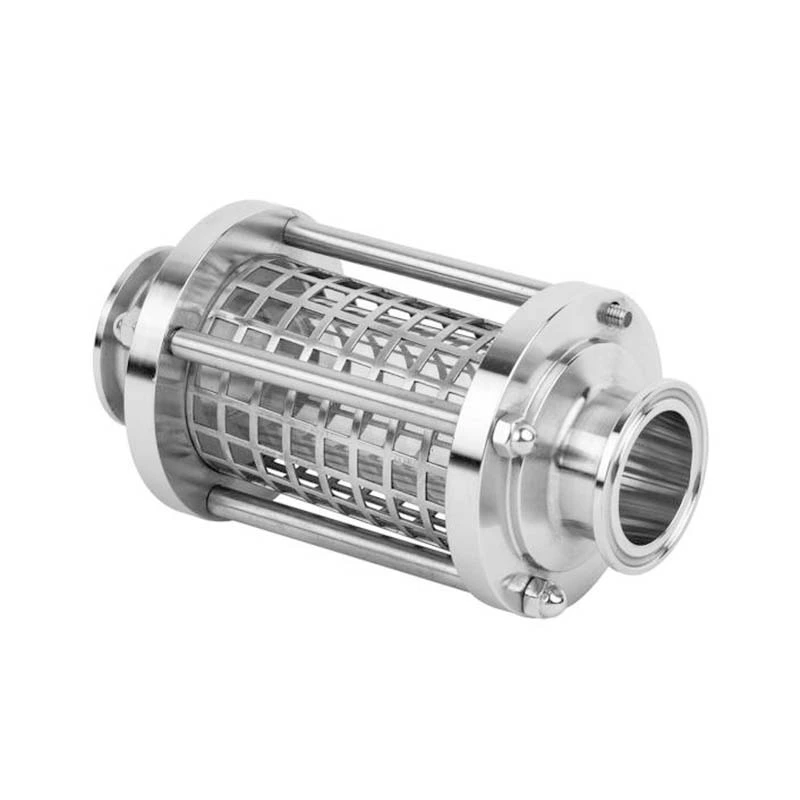

Sanitary Clamped Sight Glass with Protection Cover

  • We manufacture Sanitary Welding Sight Glass, Hygienic Tri Clover Sight Glass, Hygienic Male Sight Glass, Sanitary Four Way Cross Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.

  • Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.

  • Screw Blot: Full Stainless Steel.

  • EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.

  • It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.

Technical Data

Material grade: 304, 316L
Seal(Gasket): EPDM, SILICON, VITON, PTFE
Size range: 1/2",3/4",1", 1.5", 2", 2.5", 3", 4"
Type of ends available: Clamp end, Weld end, Male end and Female end.
Wide-range application: For food, dairy, beverage, meat processing, vacuum processing, pharmaceutical,chemeical,and many other industries

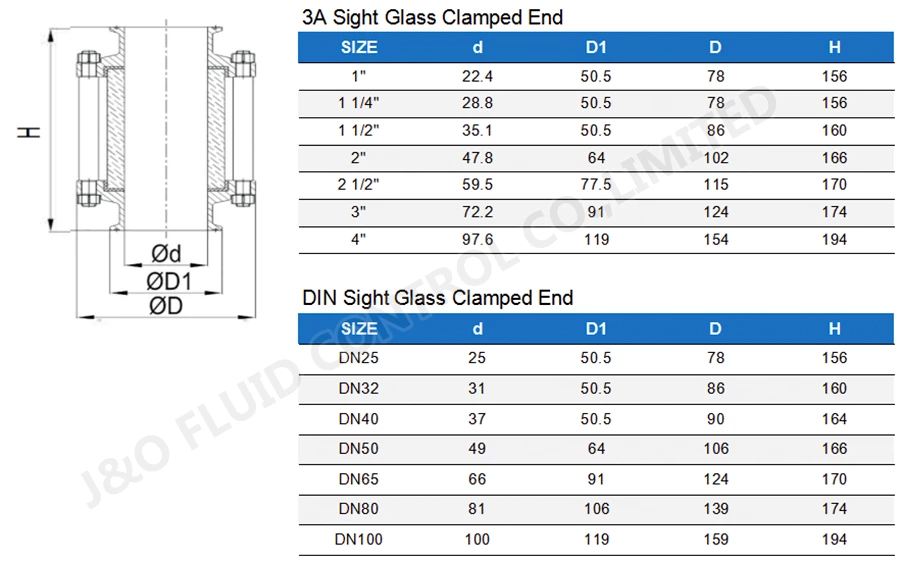

Product Parameter

Sanitary Clamped Sight Glass with Protection Cover

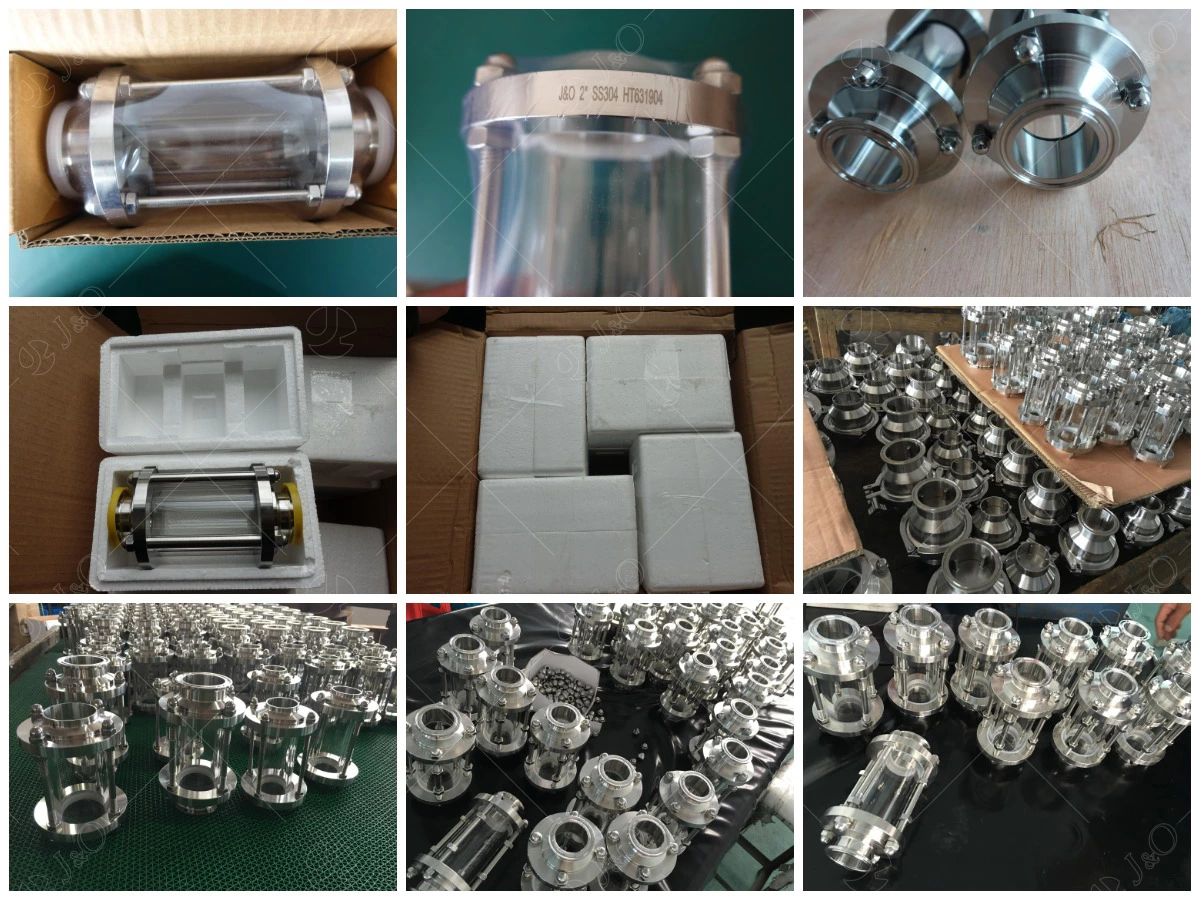

Product Pictures

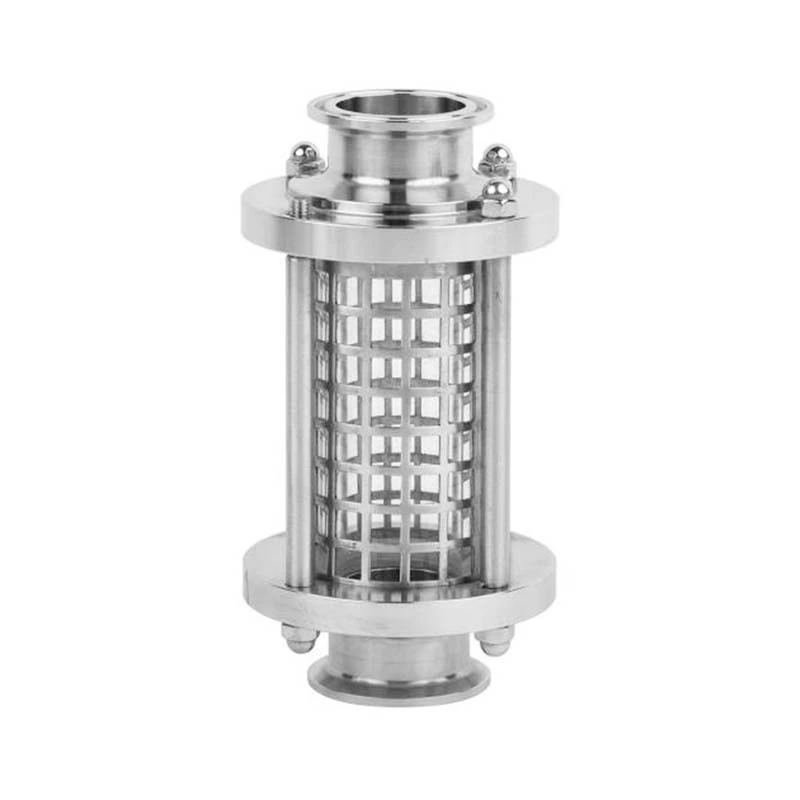

Sanitary Clamped Sight Glass with Protection Cover
