Sanitary Cross Sight Glass

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Welded
Gasket:
Silicone, EPDM, Viton, NBR
Working Temperature:
120 degree C
Working Pressure:
10Bar
Payment:
T/T, L/C, Western Union

Sanitary Stainless Steel Cross Sight Glass

  • Our Sanitary Sight Glass including Sanitary Welded Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.

  • The hygienic sight glass products are made by forged material.

  • Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.

  • Screw Blot: Full Stainless Steel. EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat  processing, vacuum processing, pharmaceutical, chemical, and many other industries.

  • It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.

Technical Data

Product Name: Cross Sight Glass
Material: SS304 or SS316L
Standard: 3A, SMS, DIN, RJT, IDF
Size: 1"-4" or DN25-DN100
Connection Way: Weld, Clamp, Thread, Flange or Combinations
Seal Material: Silicone, EPDM, Viton, NBR
Surface Treatment: CNC machining
Working Temperature: -10 degree to +120 degree (EPDM)
Application: Food,wine-produceing,beverage and pharmacy,etc.
Packing Details: Carton box or plywood case

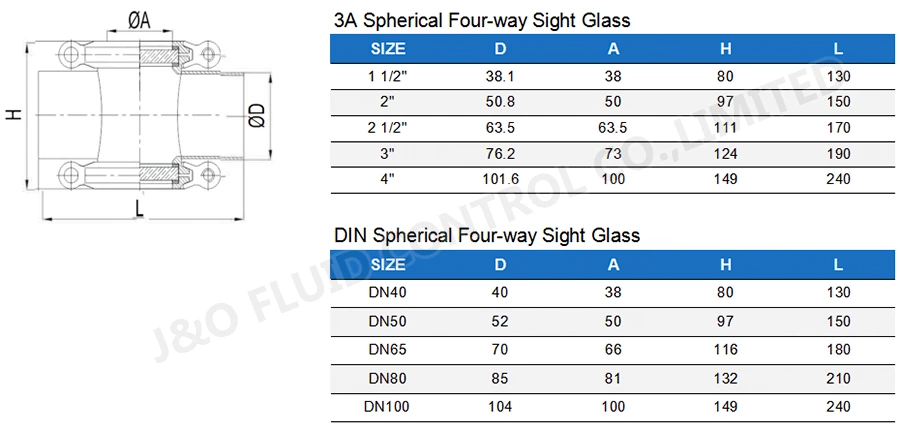

Product Parameter

Sanitary Cross Sight Glass

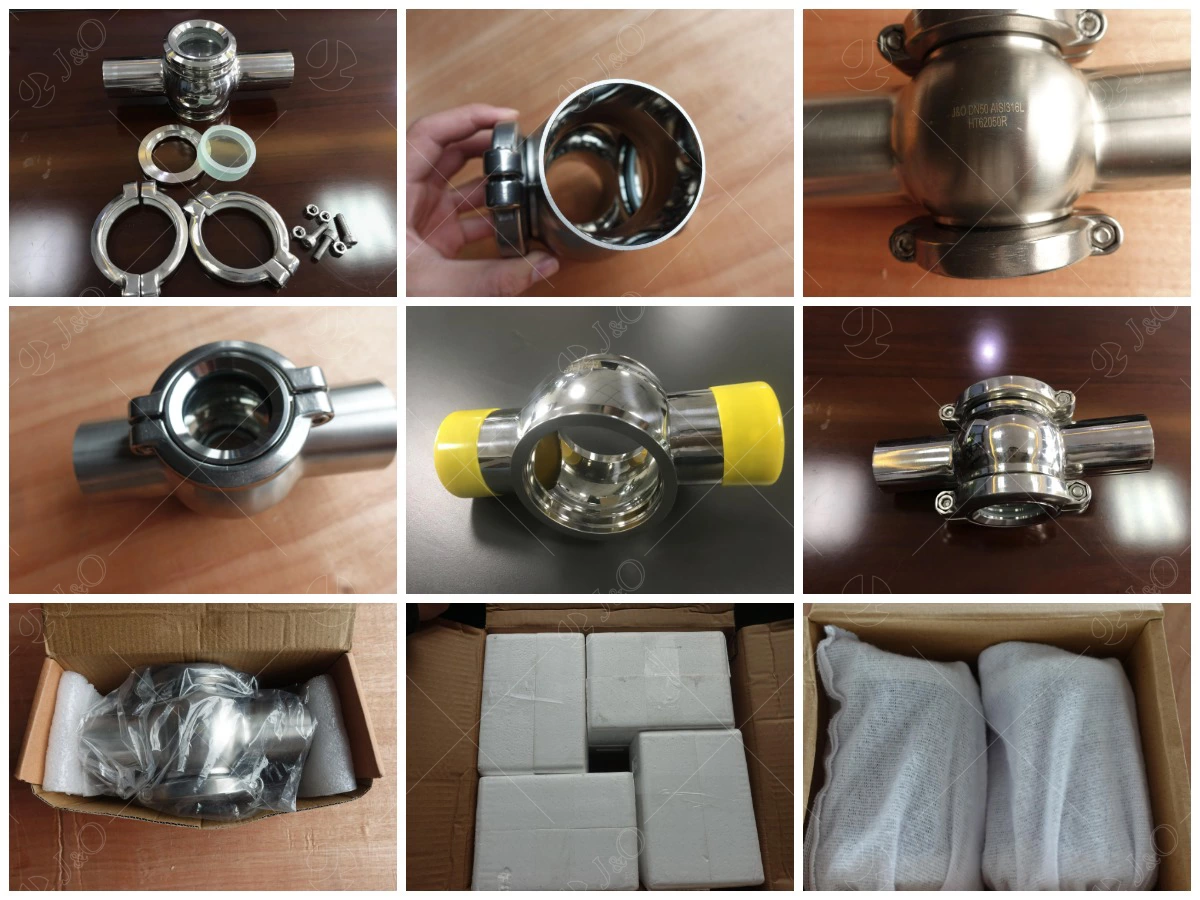

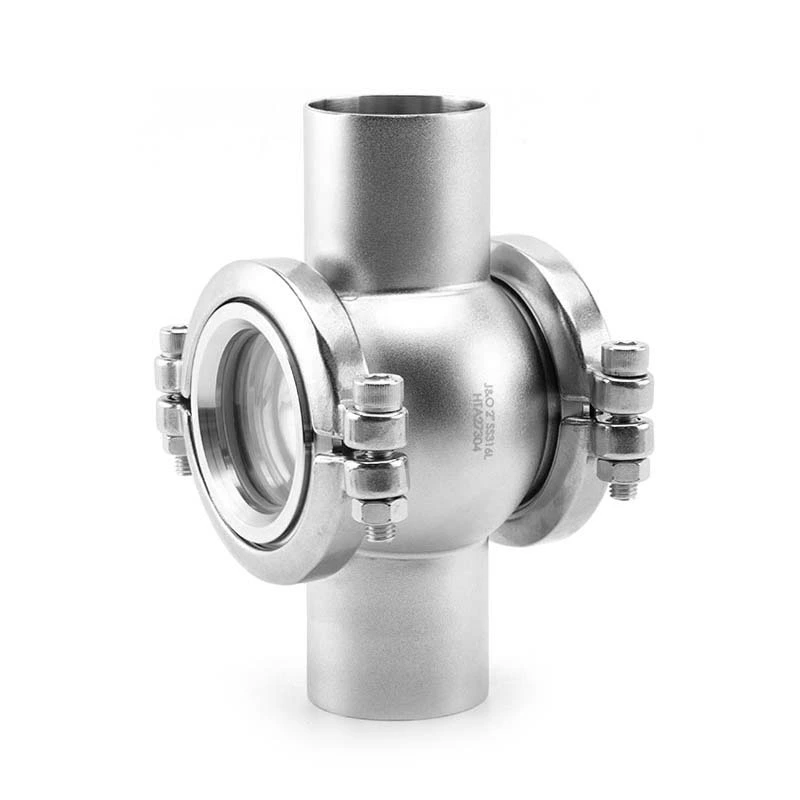

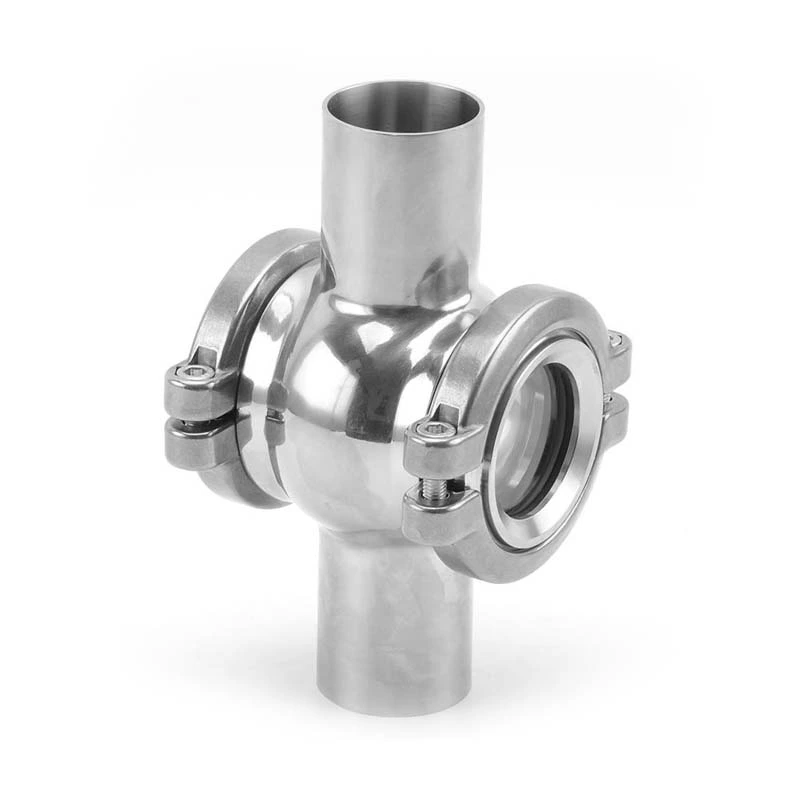

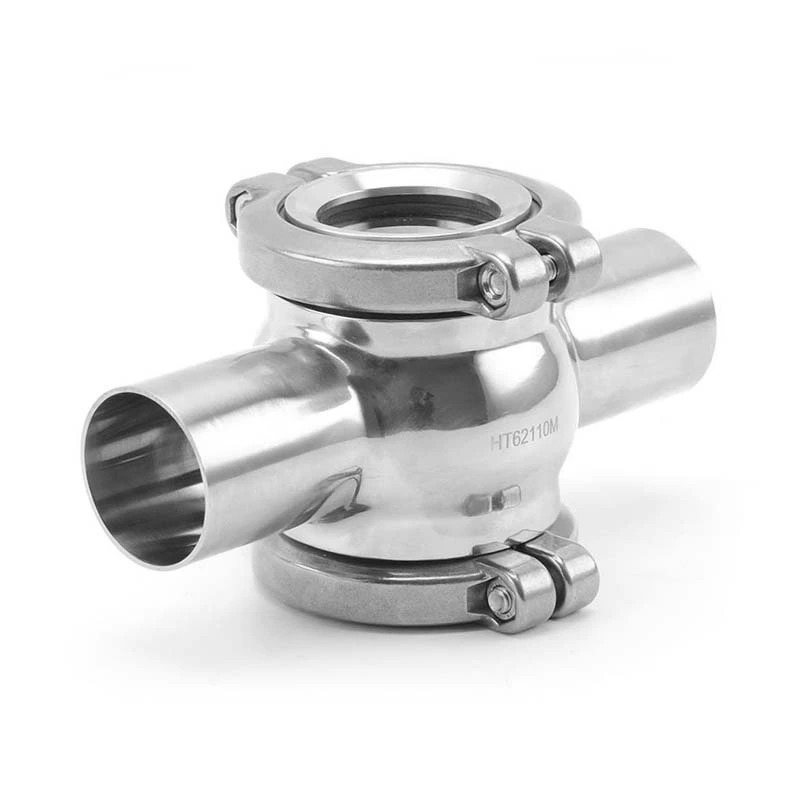

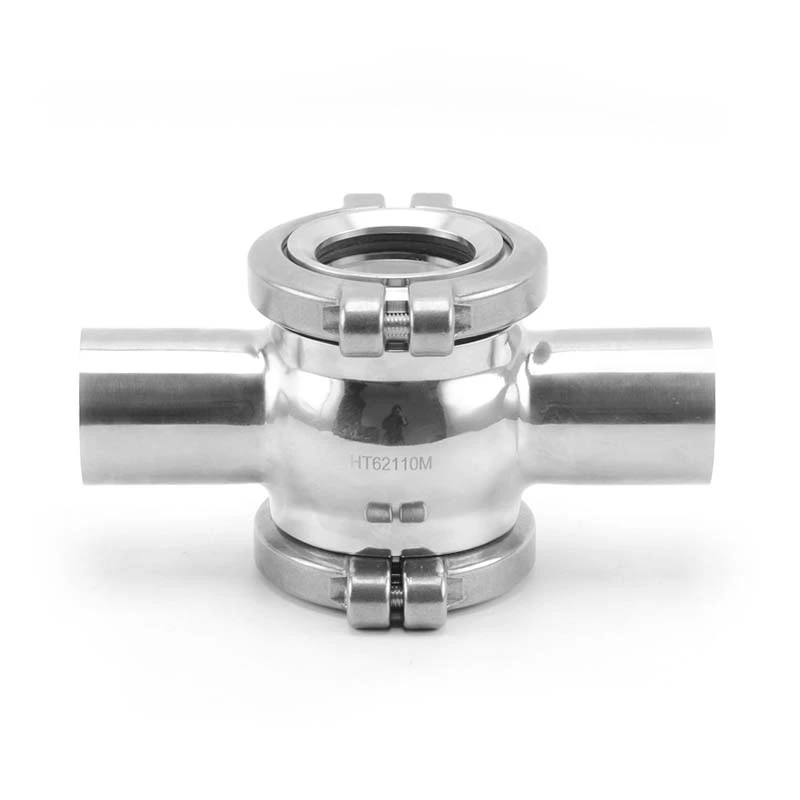

Product Pictures

Sanitary Cross Sight Glass
