J&O Fluid

Products

Sanitary Stainless Steel Cross Type Sight Glass

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Welded
Gasket:
EPDM, SILICON, VITON, PTFE
Working Temperature:
-10 degree to +120 degree (EPDM)
Working Pressure:
10Bar
Payment:
T/T, L/C, Western Union

Sanitary Stainless Steel Cross Type Sight Glass

  • We can supply Sanitary Welding Sight Glass, Hygienic Tri Clover Sight Glass, Hygienic Thread Male Sight Glass, Sanitary Four Way Cross Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.

  • Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.

  • Screw Blot: Full Stainless Steel.

  • EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.

  • It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.

Technical Data

Material: SS304 or SS316L
Standard: 3A, SMS, DIN, RJT, IDF
Size: 1"-4" or DN25-DN100
Connection Way: Weld, Clamp, Thread, Flange or Combinations
Seal Material: Silicone, EPDM, Viton, NBR
Surface Treatment: CNC machining
Working Temperature: -10 degree to +120 degree (EPDM)
Application: Food,wine-produceing,beverage and pharmacy,etc.
Packing Details: Carton box or plywood case

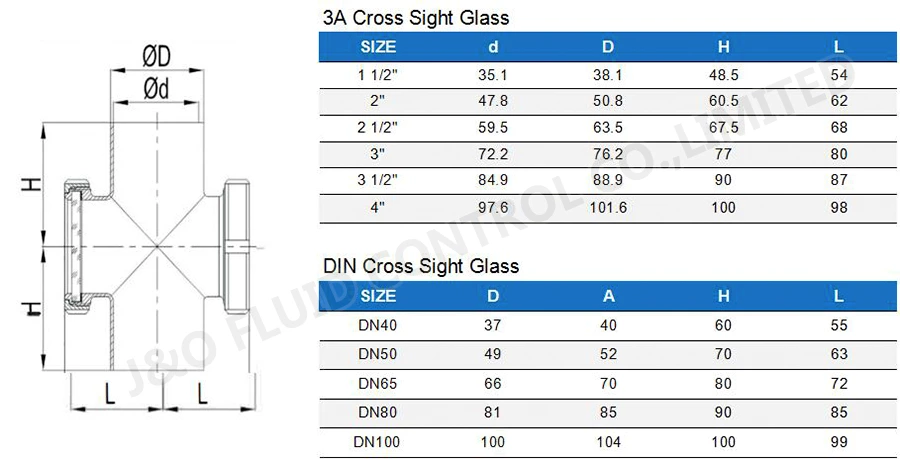

Product Parameter

Sanitary Stainless Steel Cross Type Sight GlassSanitary Stainless Steel Cross Type Sight Glass

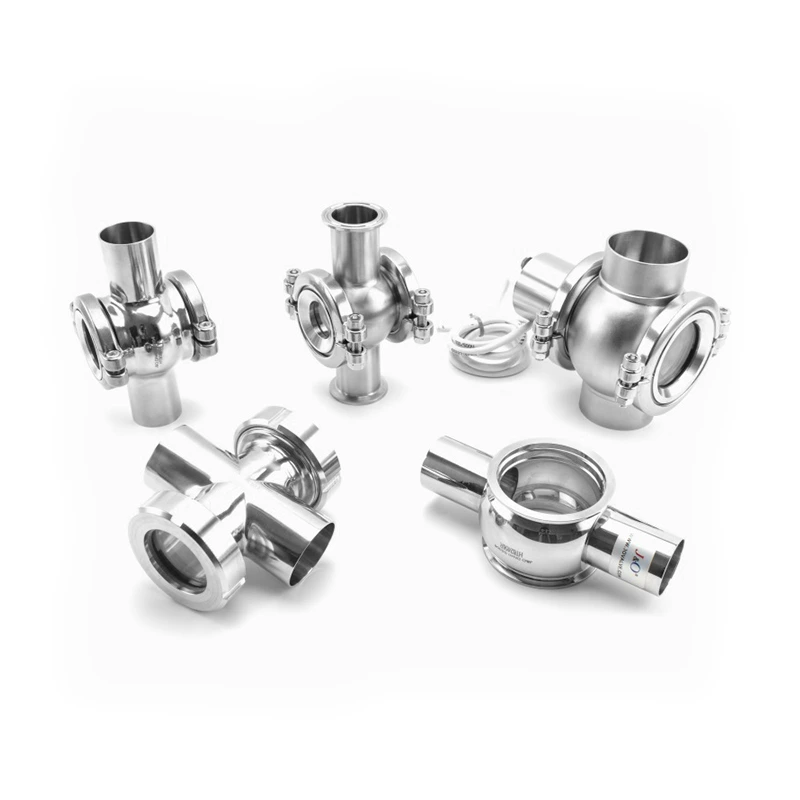

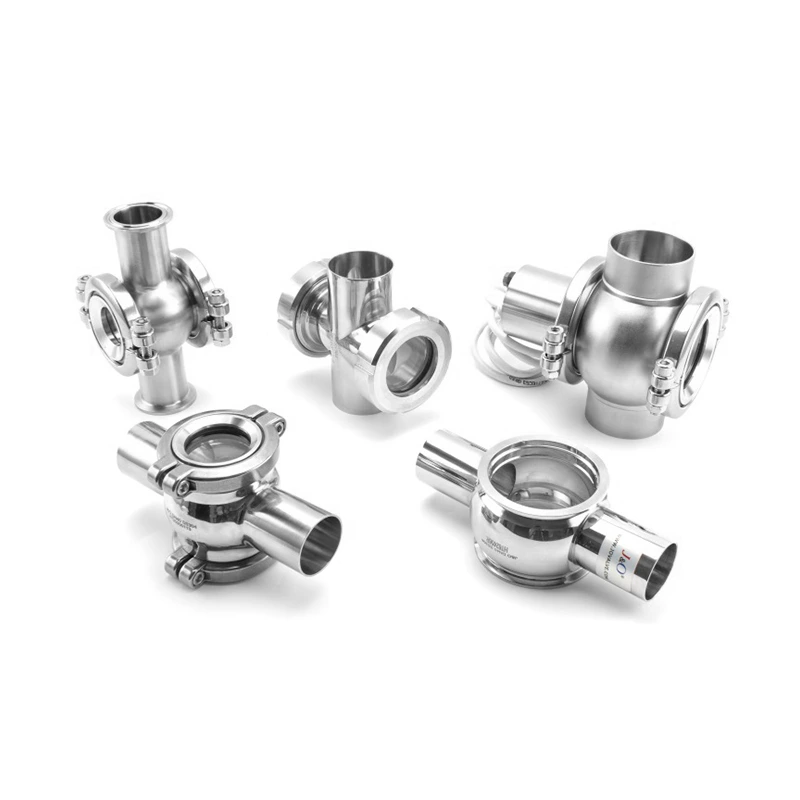

Product Pictures

Sanitary Stainless Steel Cross Type Sight Glass
