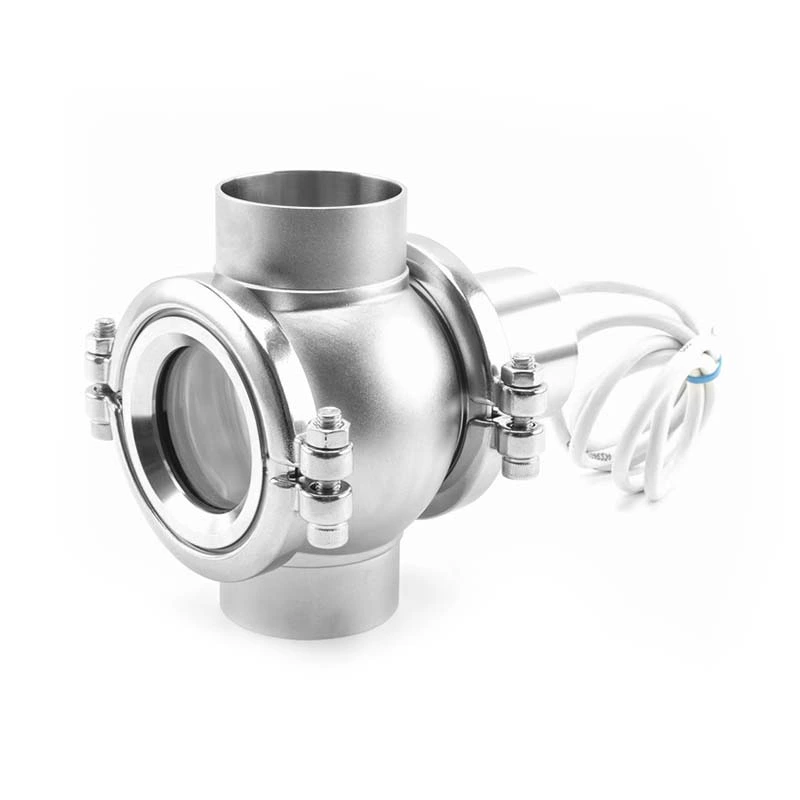

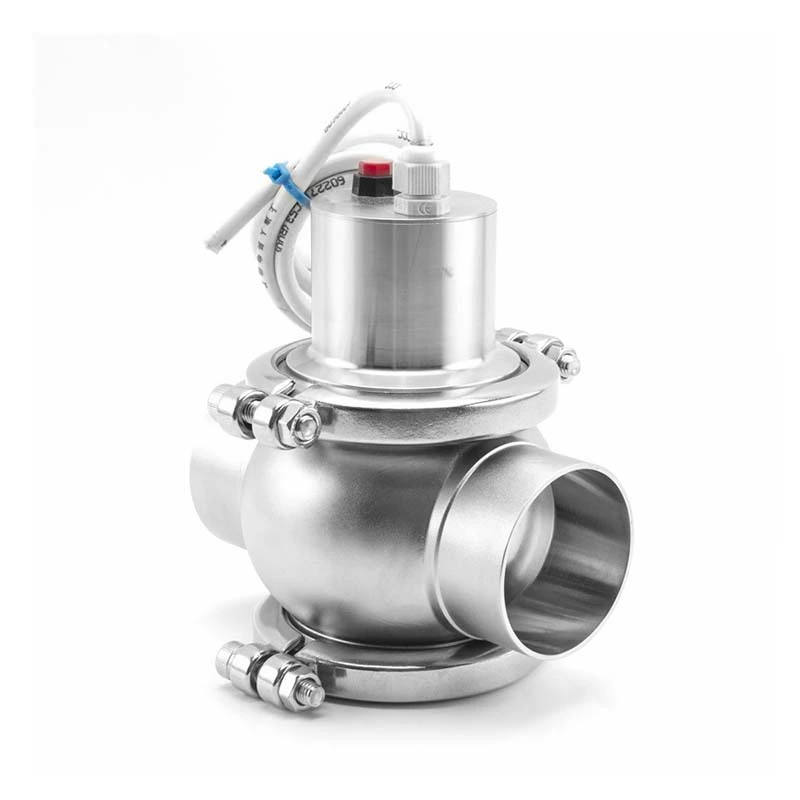

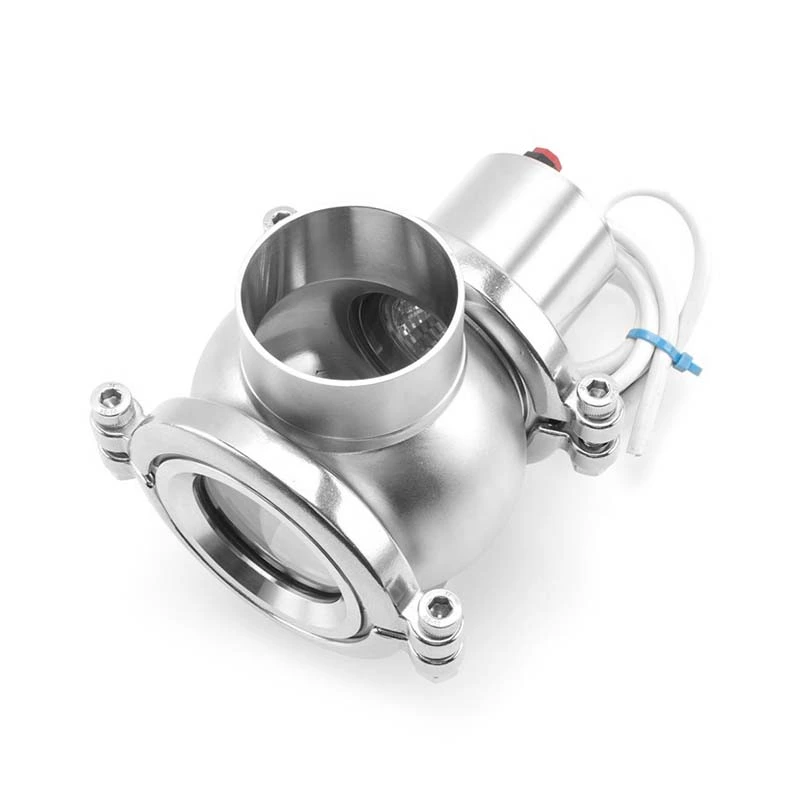

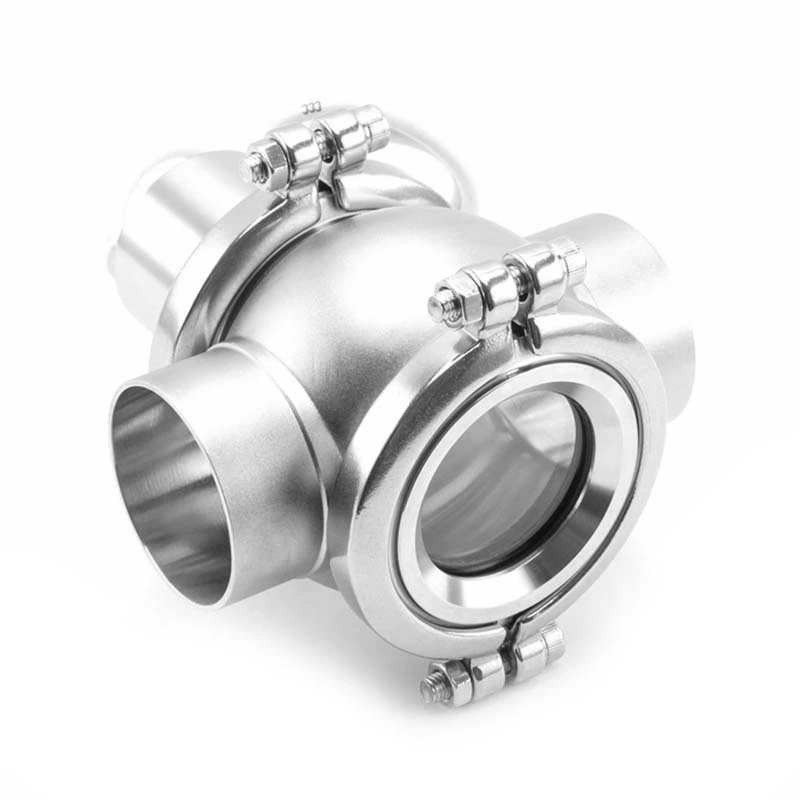

Sanitary Stainless Steel Cross Type Welding Sight Glass With Light
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Welded
- Gasket:
- EPDM, SILICON, VITON, PTFE
- Working Temperature:
- -10 degree to +120 degree (EPDM)
- Working Pressure:
- 10Bar
- Payment:
- T/T, L/C, Western Union
Sanitary Stainless Steel Cross Type Welding Sight Glass With Light
-
We can supply Sanitary Welding Sight Glass, Hygienic Tri Clover Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Cross Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.
-
The hygienic sight glass products are made by forged material.
-
Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.
-
Screw Blot: Full Stainless Steel. EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.
-
It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.
Technical Data
| Product Name: | Cross Sight Glass |
| Material: | SS304 or SS316L |
| Standard: | 3A, SMS, DIN, RJT, IDF |
| Size: | 1"-4" or DN25-DN100 |
| Connection Way: | Weld, Clamp, Thread, Flange or Combinations |
| Seal Material: | Silicone, EPDM, Viton, NBR |
| Surface Treatment: | CNC machining |
| Working Temperature: | -10 degree to +120 degree (EPDM) |
| Application: | Food,wine-produceing,beverage and pharmacy,etc. |
| Packing Details: | Carton box or plywood case |

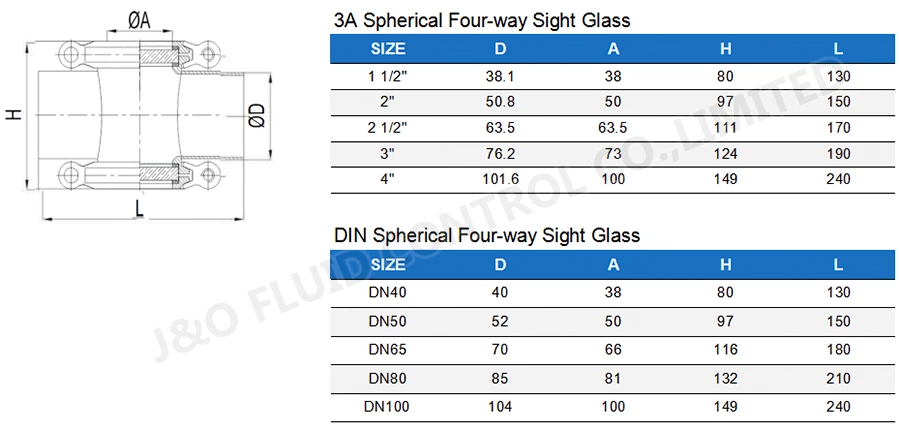

Product Parameter

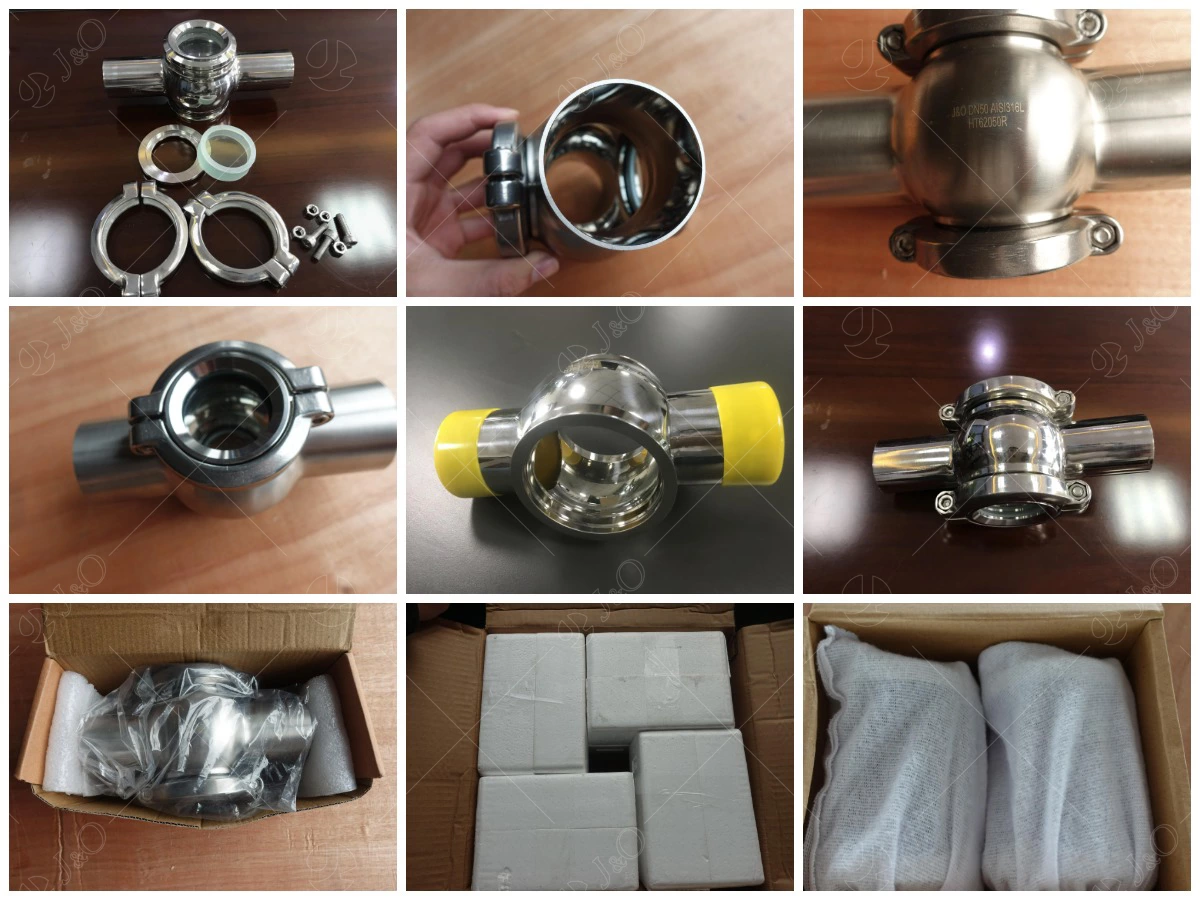

Product Pictures
