J&O Fluid

Products

Sanitary Stainless Steel Cross Welded Sight Glass

Brand:
J&O
Material:
SS304 or SS316L
Connection:
Welded
Gasket:
Silicone, EPDM, Viton, NBR
Working Temperature:
-10 degree to +120 degree (EPDM)
Working Pressure:
10Bar
Payment:
T/T, L/C, Western Union

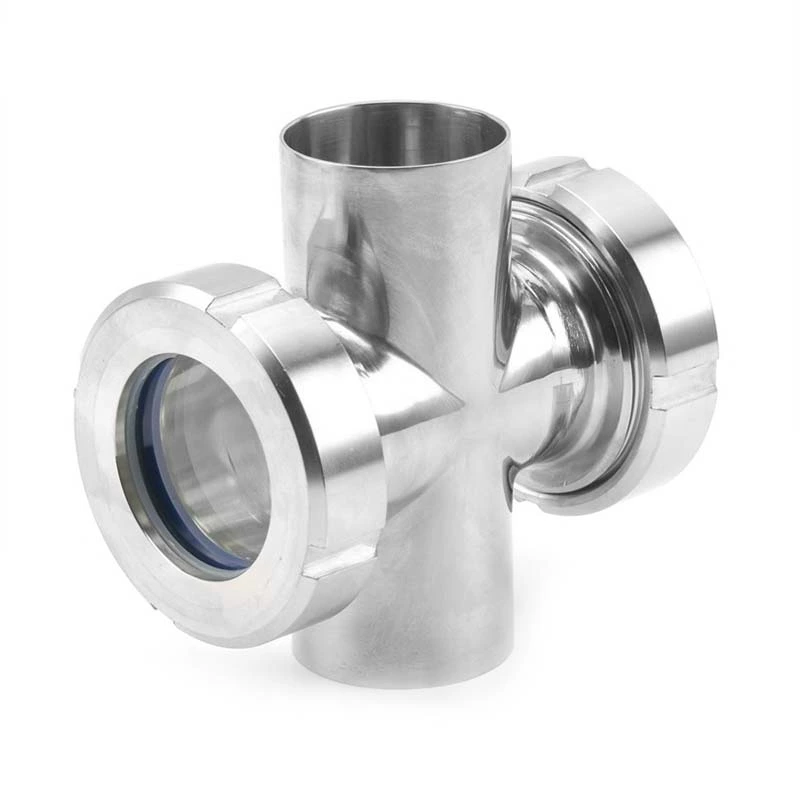

Sanitary Stainless Steel Cross Welded Sight Glass

  • We can supply Sanitary Welding Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Lamp.

  • Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.

  • Screw Blot: Full Stainless Steel.

  • EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.

  • It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.

Technical Data

Product Name: Straight Cross Sight Glass
Material: SS304 or SS316L
Standard: 3A, SMS, DIN, RJT, IDF
Size: 1"-4" or DN25-DN100
Connection Way: Weld, Clamp, Thread, Flange or Combinations
Seal Material: Silicone, EPDM, Viton, NBR
Surface Treatment: CNC machining
Working Temperature: -10 degree to +120 degree (EPDM)
Application: Food,wine-produceing,beverage and pharmacy,etc.
Packing Details: Carton box or plywood case

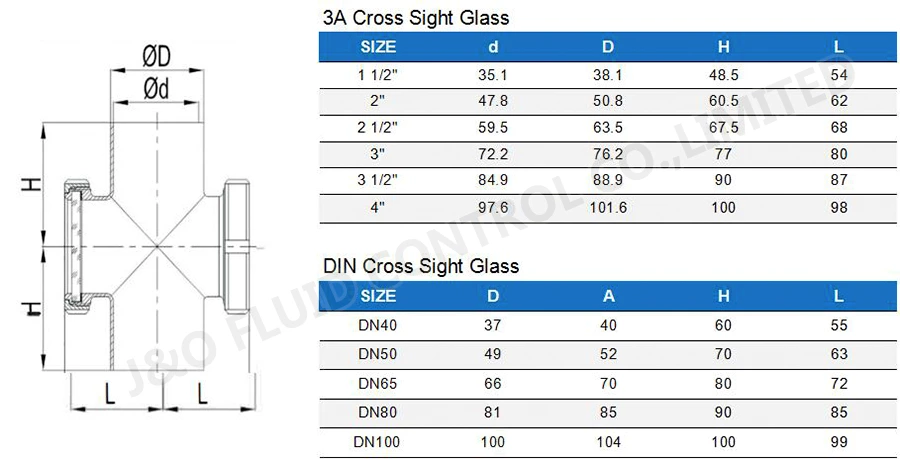

Product Parameter

Sanitary Stainless Steel Cross Welded Sight Glass

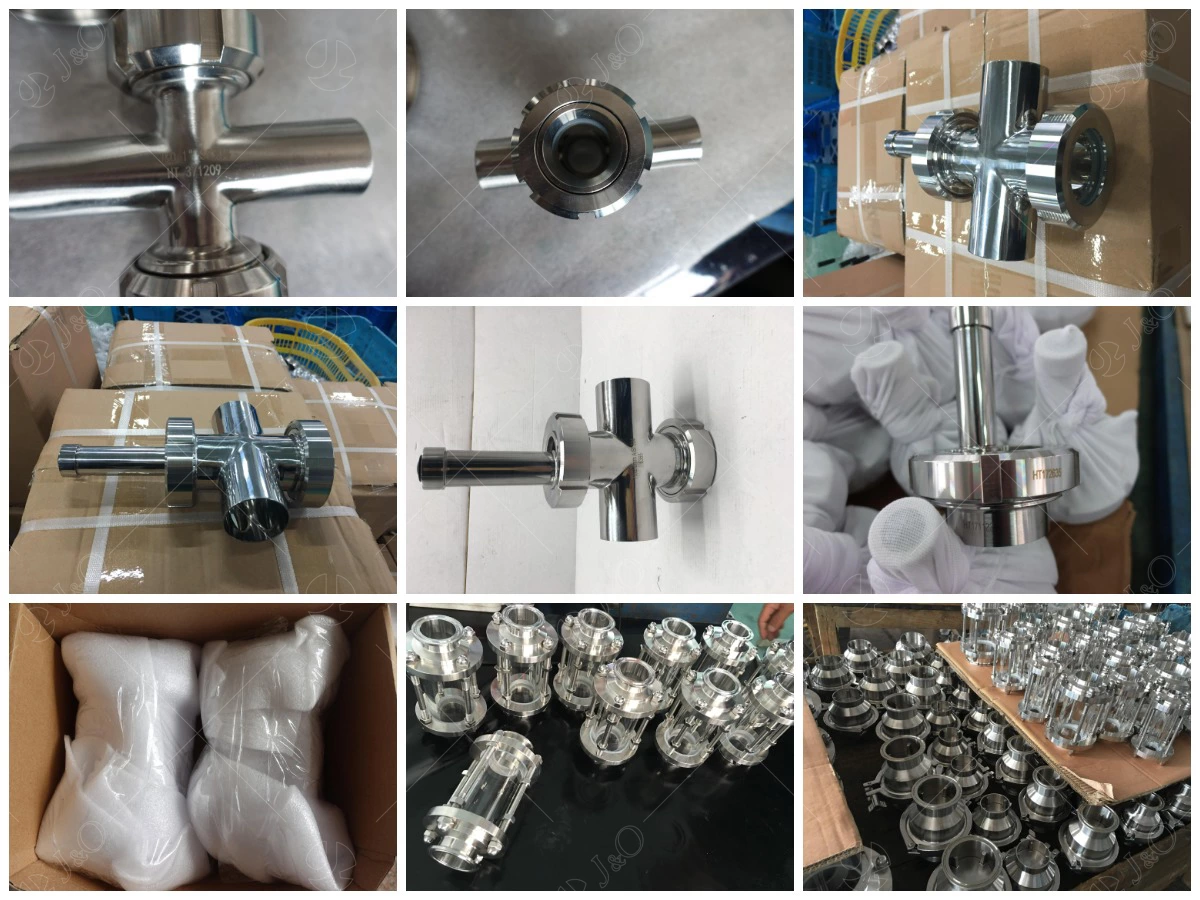

Product Pictures

Sanitary Stainless Steel Cross Welded Sight Glass
