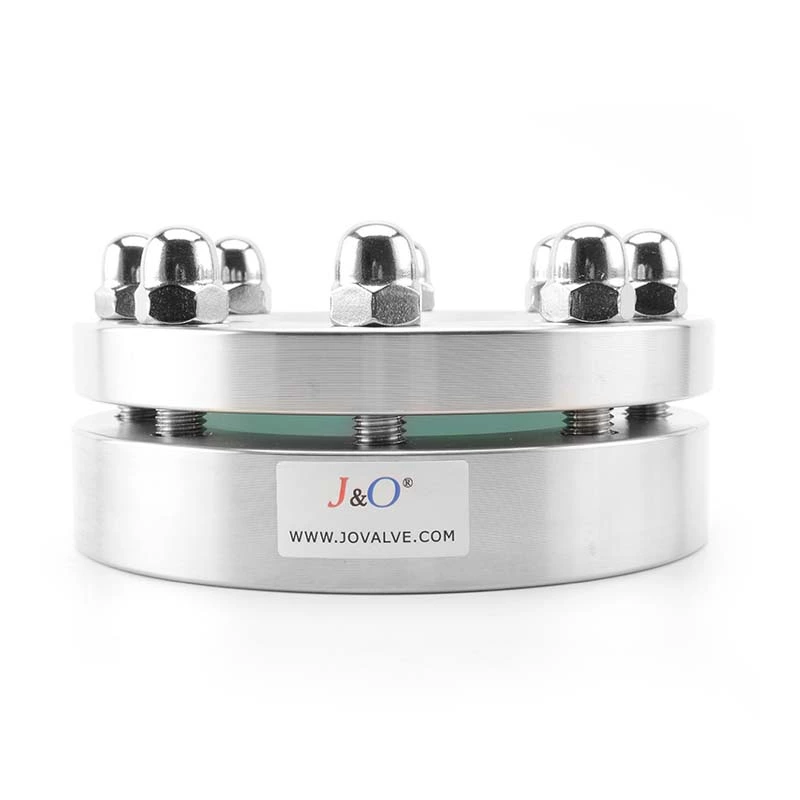

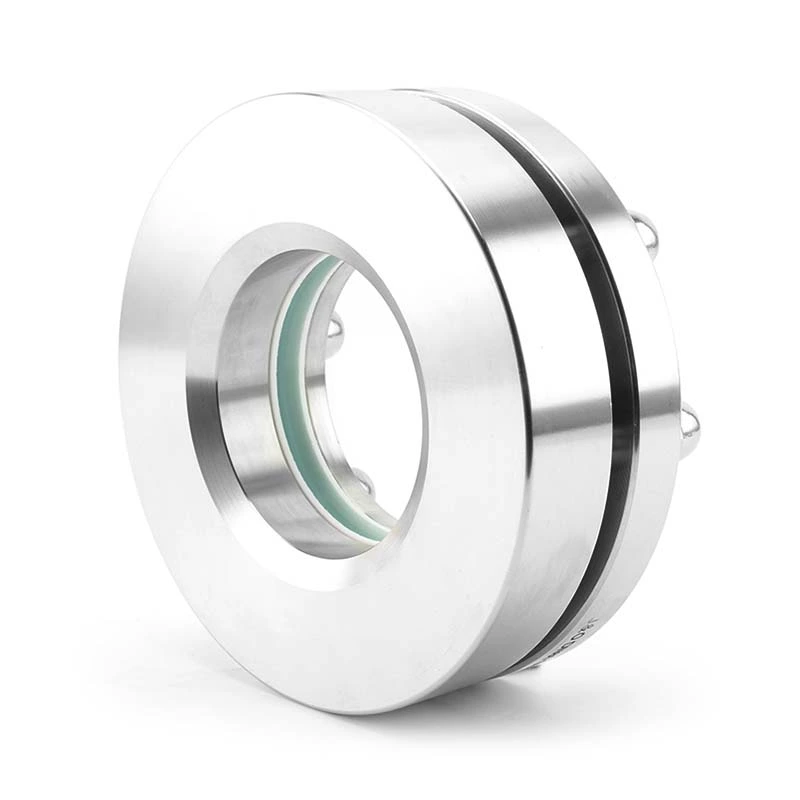

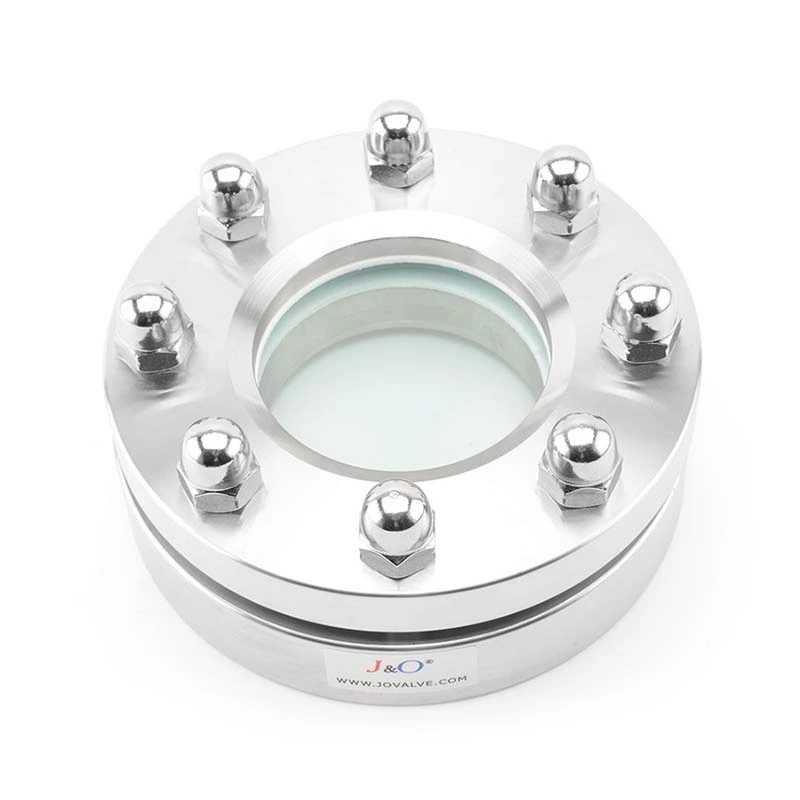

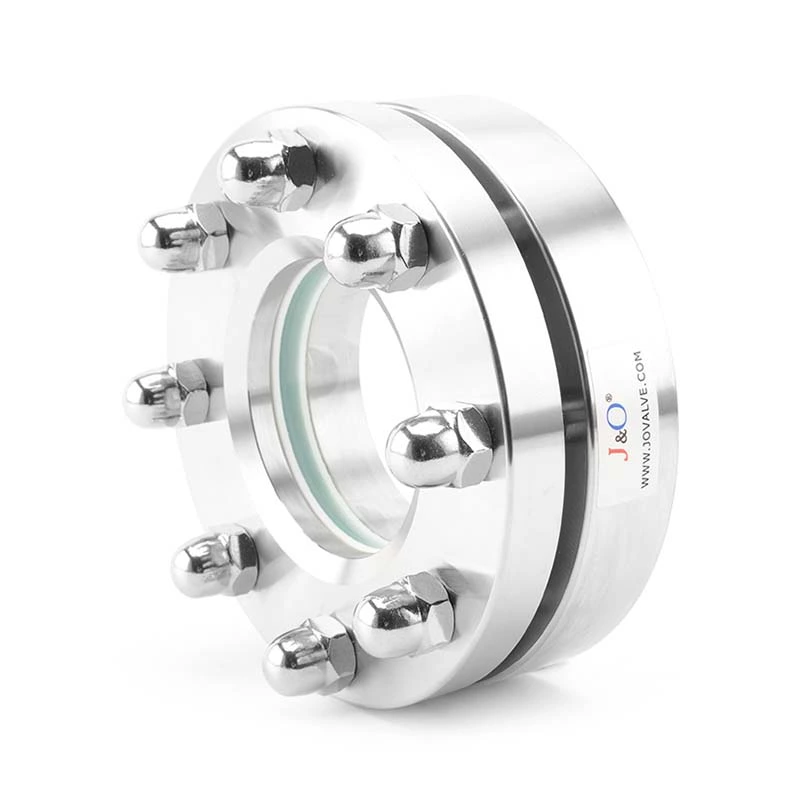

Sanitary Stainless Steel Flange Type Weld Sight Glass

Brand:
J&O
Material:
SS304 or SS316L
Connection:
welded
Gasket:
Silicone, EPDM, Viton, NBR
Working Temperature:
20°C ~ +135°C (EPDM,Silicone)
Working Pressure:
10Bar
Payment:
T/T, L/C, Western Union

Sanitary Stainless Steel Flange Type Sight Glass

  • We manufacture Sanitary Falnge Type Sight Glass, Sanitary Welding Sight Glass, Hygienic Clamped Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Lamp.

  • Sanitary sight glass is designed for sanitary applications required in food, dairy, and pharmaceutical industries.

  • It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.

Technical Data

Availably standard SMS,DIN,3A,IDF,RJT, BS, ISO
Material Quality SS304,SS304L,SS316,SS316L
Specification DN25-DN125
Availabe Connection Welding ends,triclamp ends,union ends,male ends
Seal Material Silicone, EPDM, Viton, NBR
Glass Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan)Tubing; Acrylic Tubing; etc
Protection Lens Cover Polycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel
Screw Blot Full Stainless Steel
Structure Straight way,cross
Pressure range 1bar~10bar
Machine Processing The most advanced CNC machine from Japan for processing
Continuous working temperature 20°C ~ +135°C (EPDM,Silicone)
Special Design we can produce according to your drawings

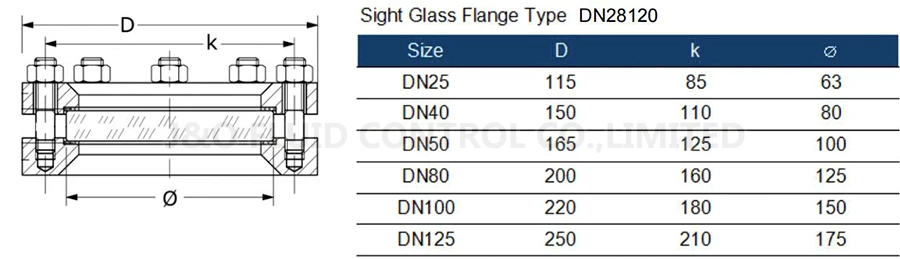

Product Parameter

Sanitary Stainless Steel Flange Type Weld Sight Glass

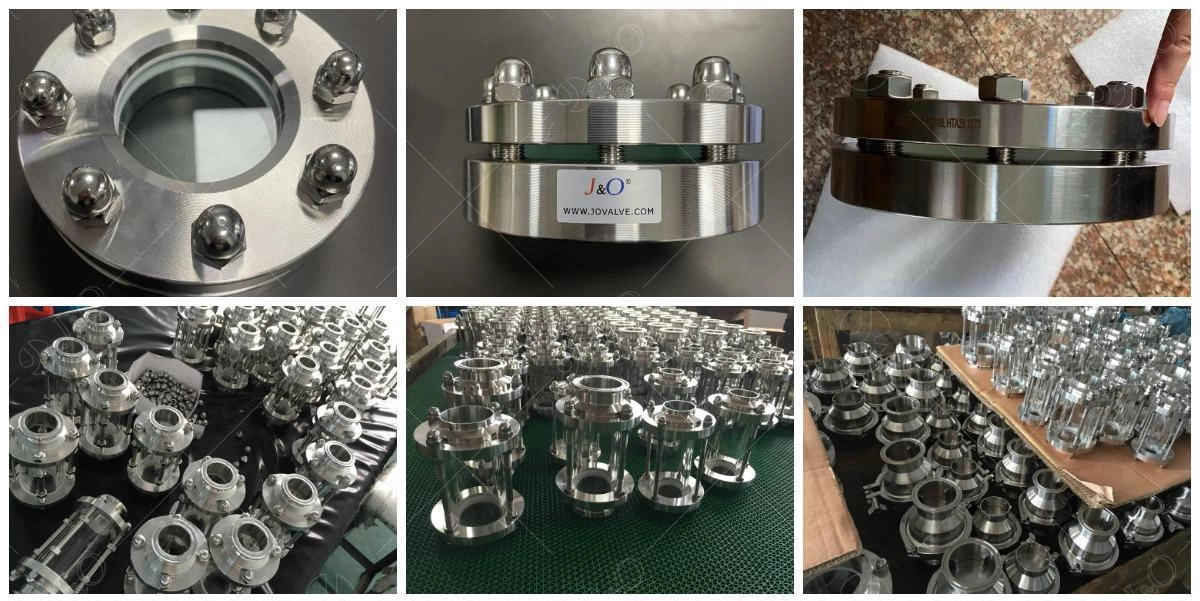

Product Pictures

Sanitary Stainless Steel Flange Type Weld Sight Glass
