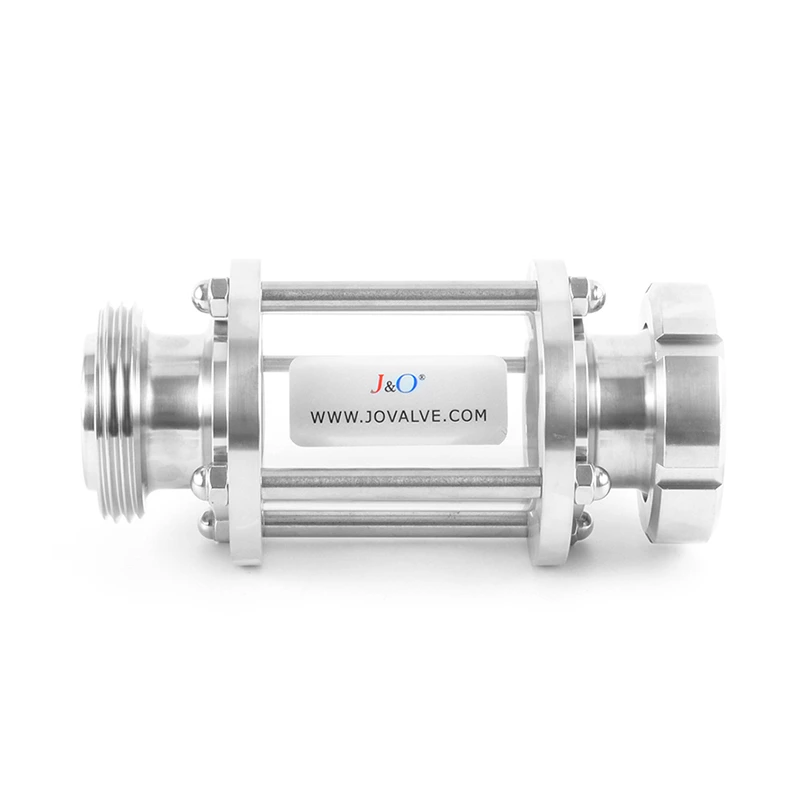

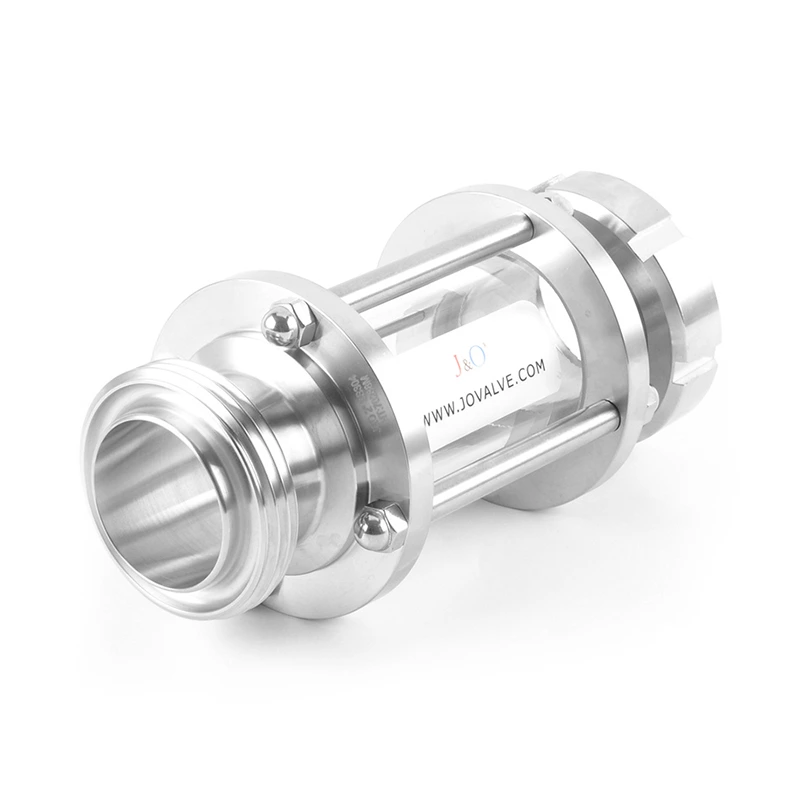

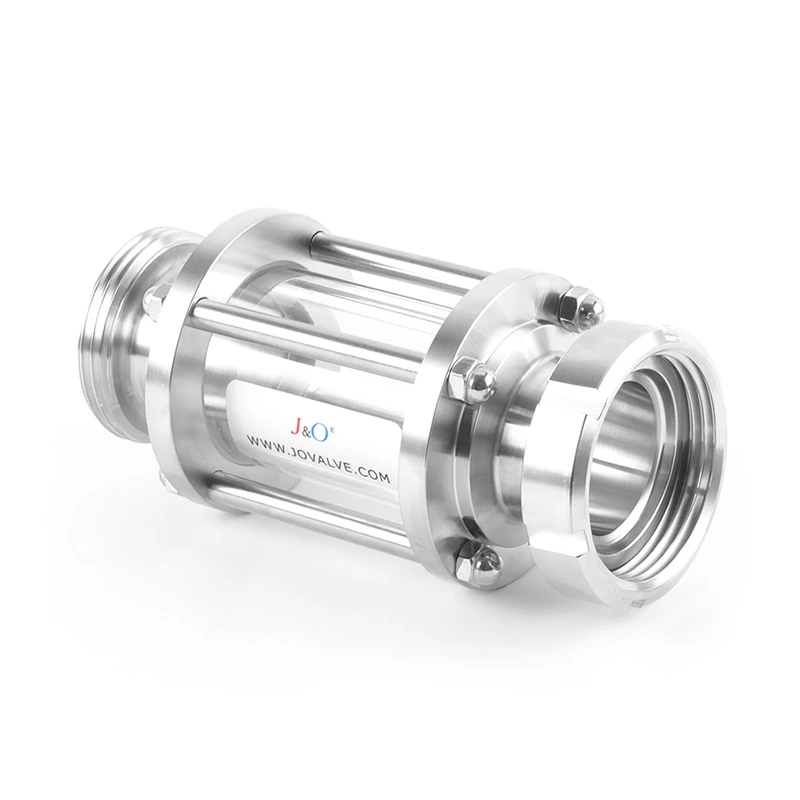

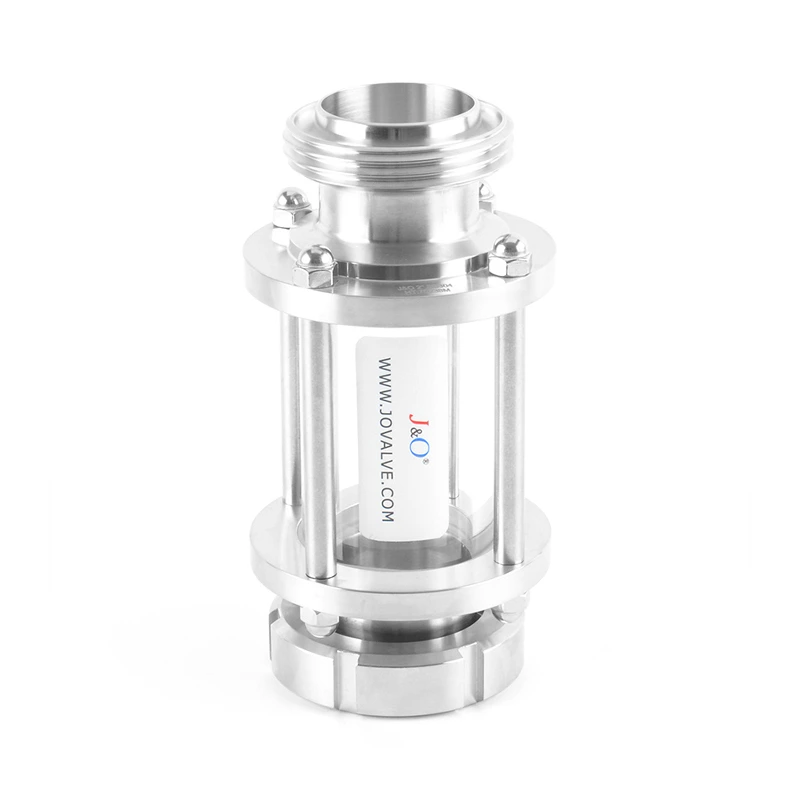

Sanitary Stainless Steel Straight Sight Glass with Union Ends

Brand:
J&O
Material:
SS304 or SS316L
Connection:
union
Gasket:
EPDM, SILICON, VITON, PTFE
Working Temperature:
-10 degree to +120 degree (EPDM)
Working Pressure:
10Bar
Payment:
T/T, L/C, Western Union

Sanitary Stainless Steel Straight Sight Glass with Union Ends

  • We can supply Sanitary Welding Sight Glass, Hygienic Tri Clover Sight Glass, Hygienic Thread Male Sight Glass, Sanitary Four Way Cross Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.

  • Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.

  • Screw Blot: Full Stainless Steel.

  • EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat  processing, vacuum processing, pharmaceutical, chemical, and many other industries.

  • It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.

Technical Data

Material grade: 304, 316L
Seal(Gasket): EPDM, SILICON, VITON, PTFE
Size range: 1/2",3/4",1", 1.5", 2", 2.5", 3", 4"
Type of ends available: Clamp end, Weld end, Male end and Female end.
Wide-range application: For food, dairy, beverage, meat processing, vacuum processing, pharmaceutical,chemeical,and many other industries

Product Parameter

Sanitary Stainless Steel Straight Sight Glass with Union Ends

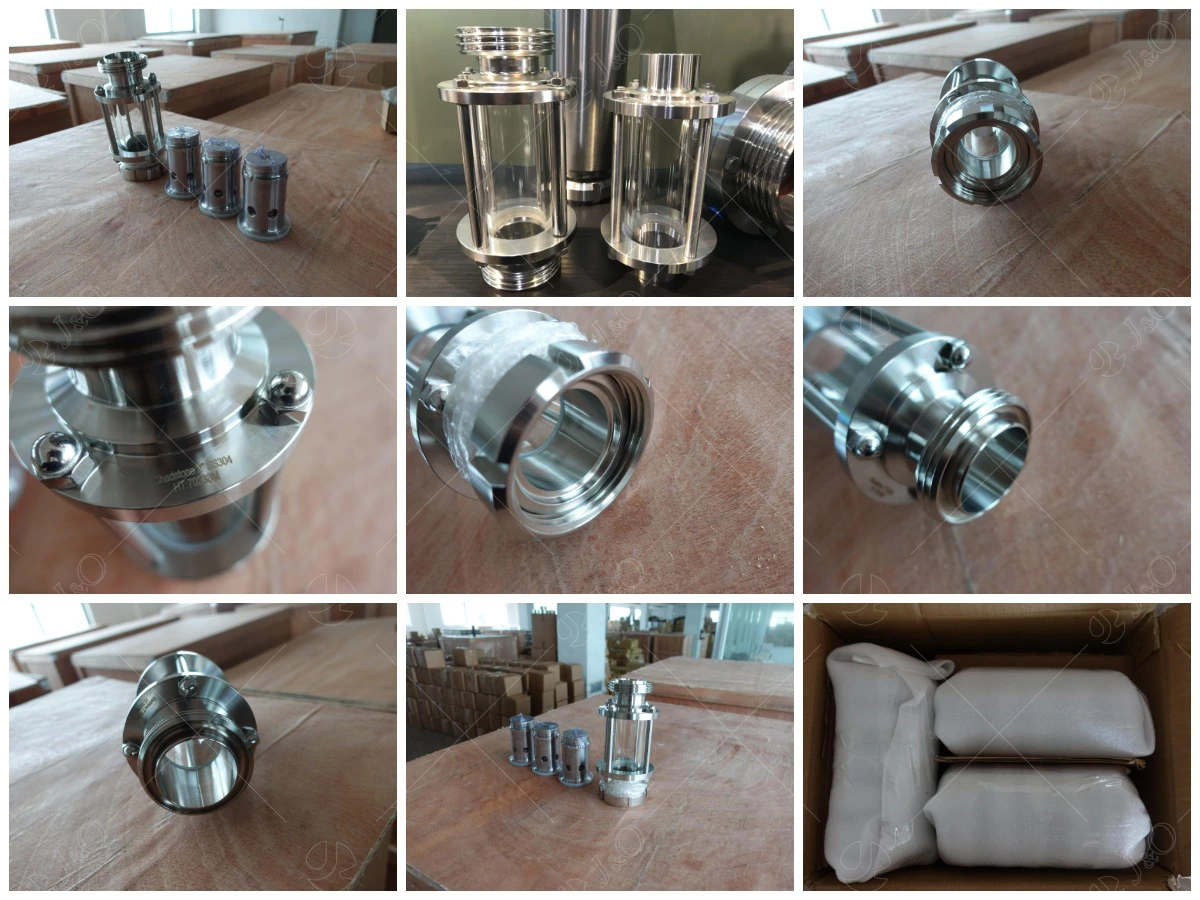

Product Pictures

Sanitary Stainless Steel Straight Sight Glass with Union Ends
