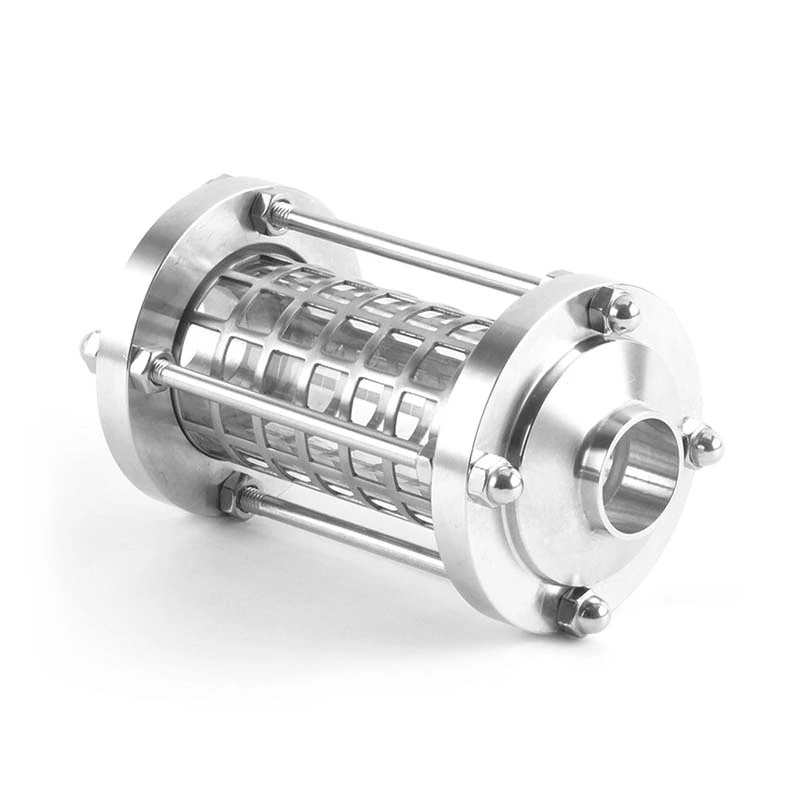

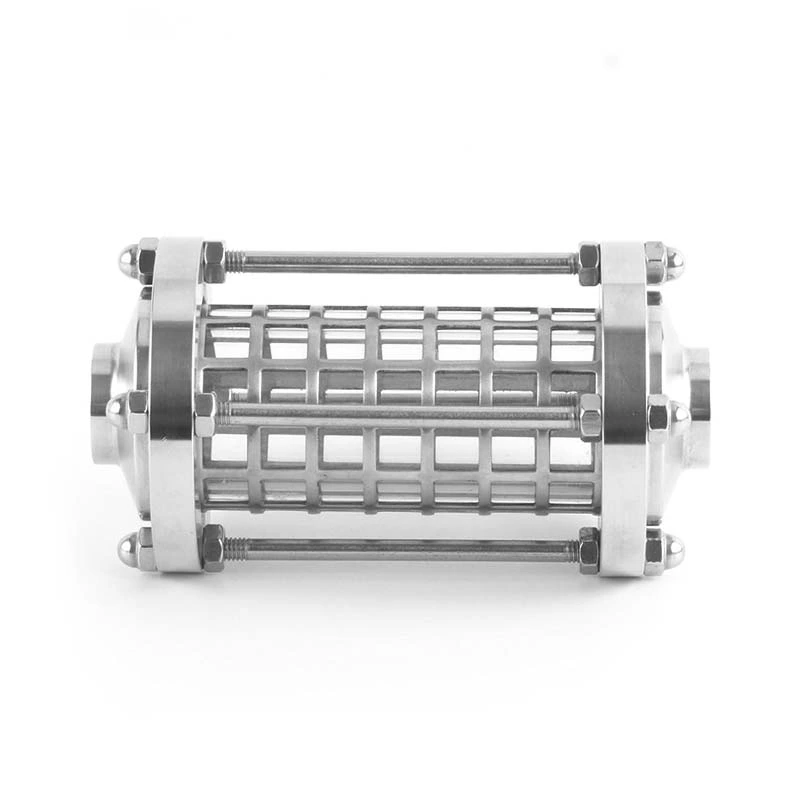

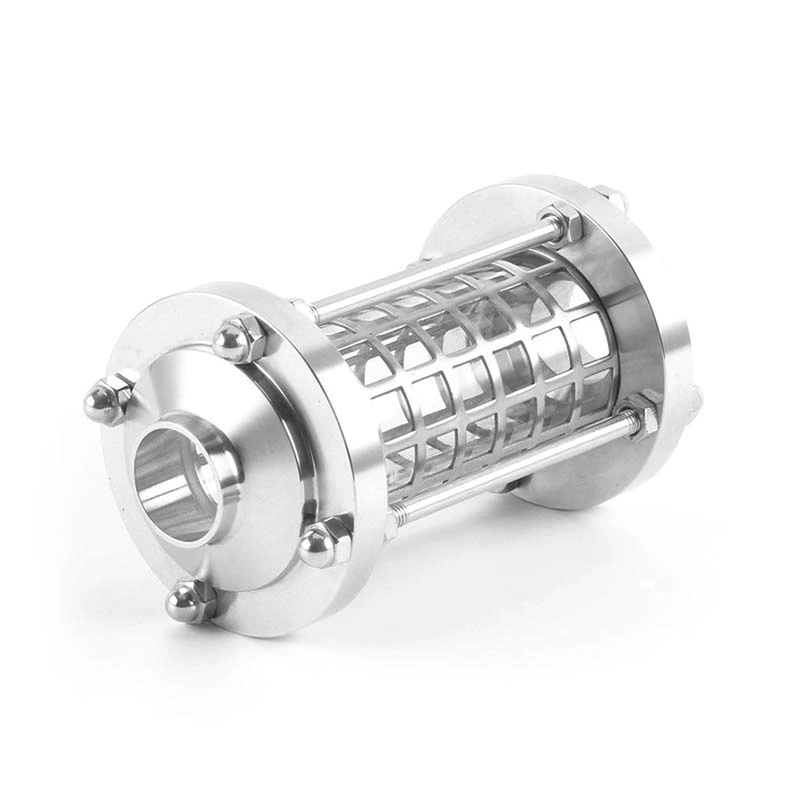

Sanitary Stainless Steel Welding Sight Glass with Protection Cover
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Welded
- Gasket:
- EPDM, SILICON, VITON, PTFE
- Working Temperature:
- -10 degree to +120 degree (EPDM)
- Working Pressure:
- 10Bar
- Payment:
- T/T, L/C, Western Union
Sanitary Stainless Steel Welding Sight Glass with Protection Cover
-
We can supply Sanitary Welding Sight Glass, Hygienic Tri Clover Sight Glass, Hygienic Thread Male Sight Glass, Sanitary Four Way Cross Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light, Sanitary Sight Glass With Protection Net.
-
Glass is made of tempered glass which can bear Max working 10 Bar. Replaceable.
-
Screw Blot: Full Stainless Steel.
-
EPDM, Silicon, Viton and PTFE seats are available, making the Sight Glass suitable for many applications in such as food, dairy, beverage, meat processing, vacuum processing, pharmaceutical, chemical, and many other industries.
-
It is necessary you specify at the time when orders be placing if heat numbers and MT"s are required.
Technical Data
| Material grade: | 304, 316L |
| Seal(Gasket): | EPDM, SILICON, VITON, PTFE |
| Size range: | 1/2",3/4",1", 1.5", 2", 2.5", 3", 4" |
| Type of ends available: | Clamp end, Weld end, Male end and Female end. |
| Wide-range application: | For food, dairy, beverage, meat processing, vacuum processing, pharmaceutical,chemeical,and many other industries |

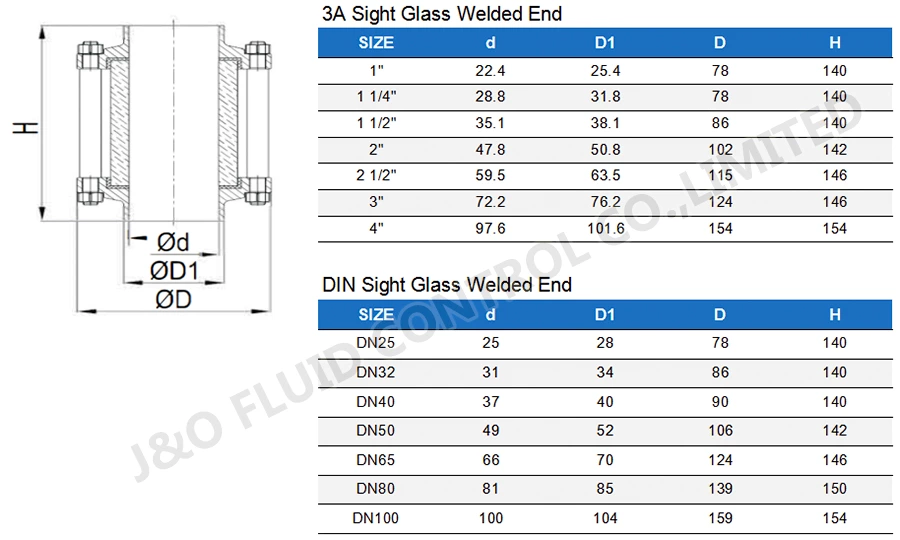

Product Parameter

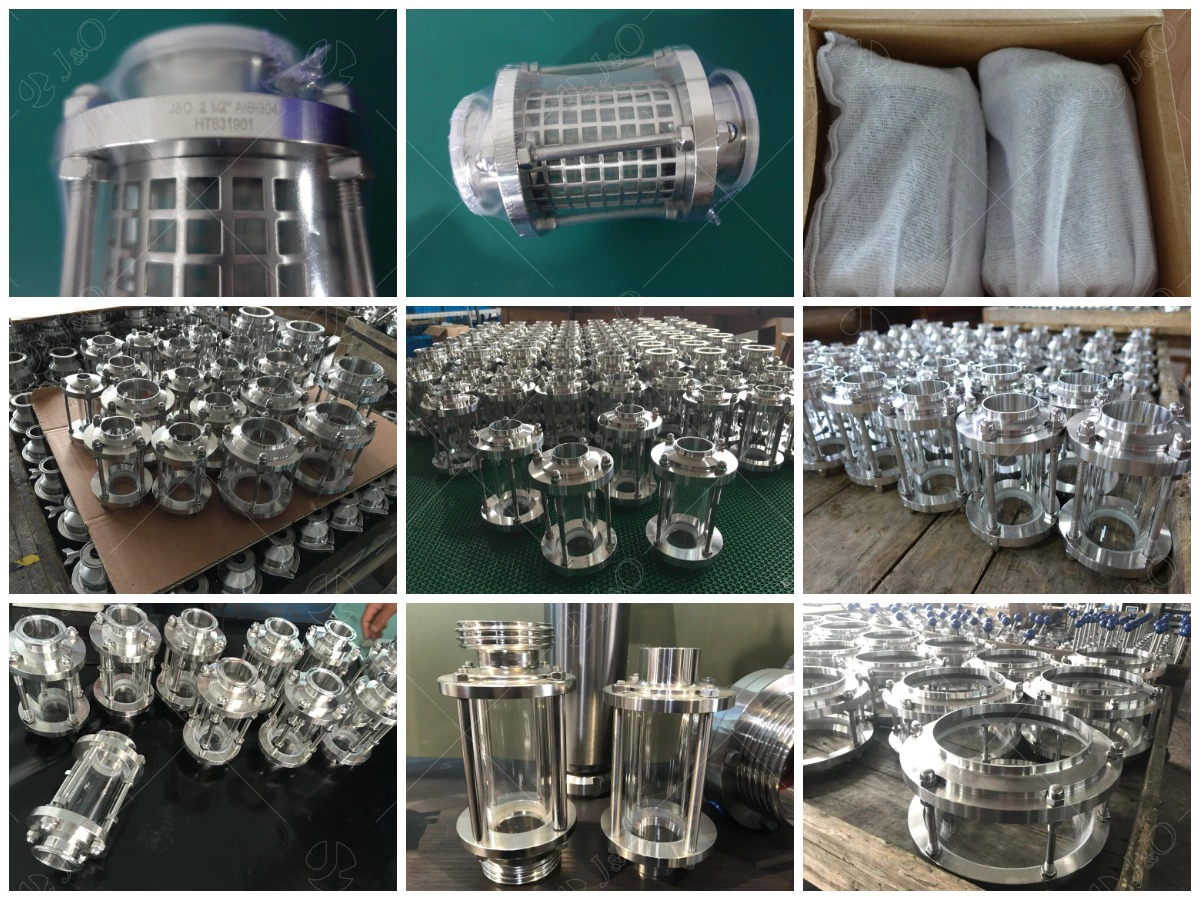

Product Pictures
