Sight Glass Eith Lamp
- Brand:
- J&O
- Material:
- SS304 or SS316L
- Connection:
- Welded
- Gasket:
- Silicone, EPDM, Viton, NBR
- Working Temperature:
- 20°C ~ +135°C (EPDM,Silicone)
- Working Pressure:
- 10Bar
- Payment:
- T/T, L/C, Western Union

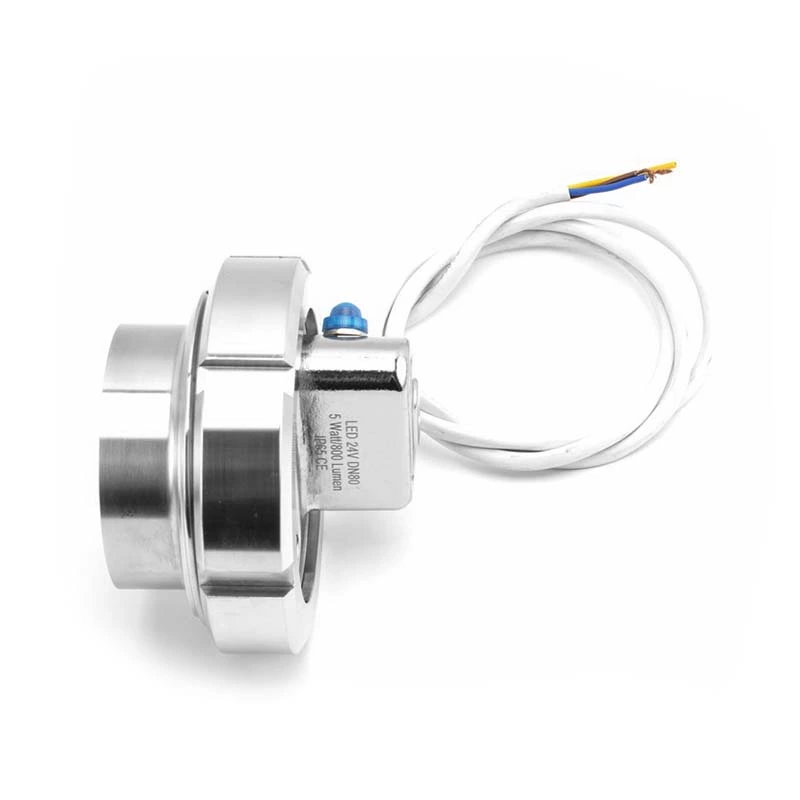

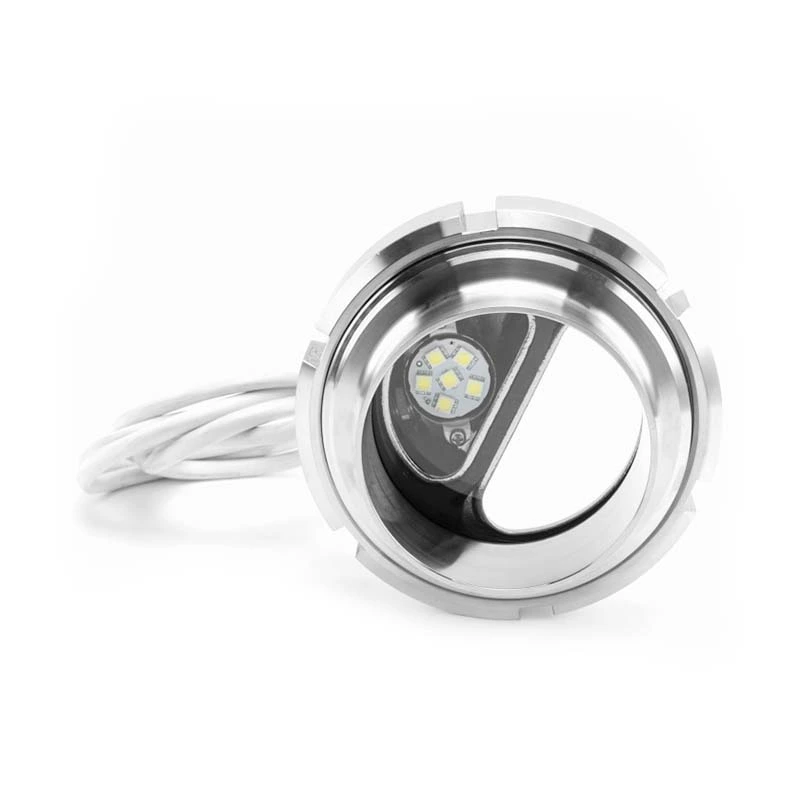

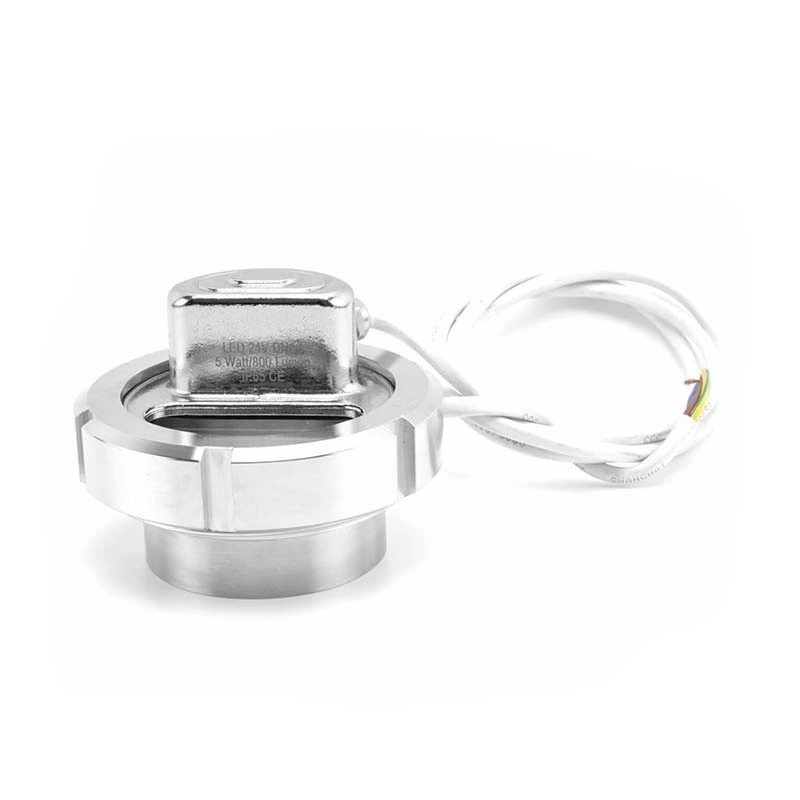

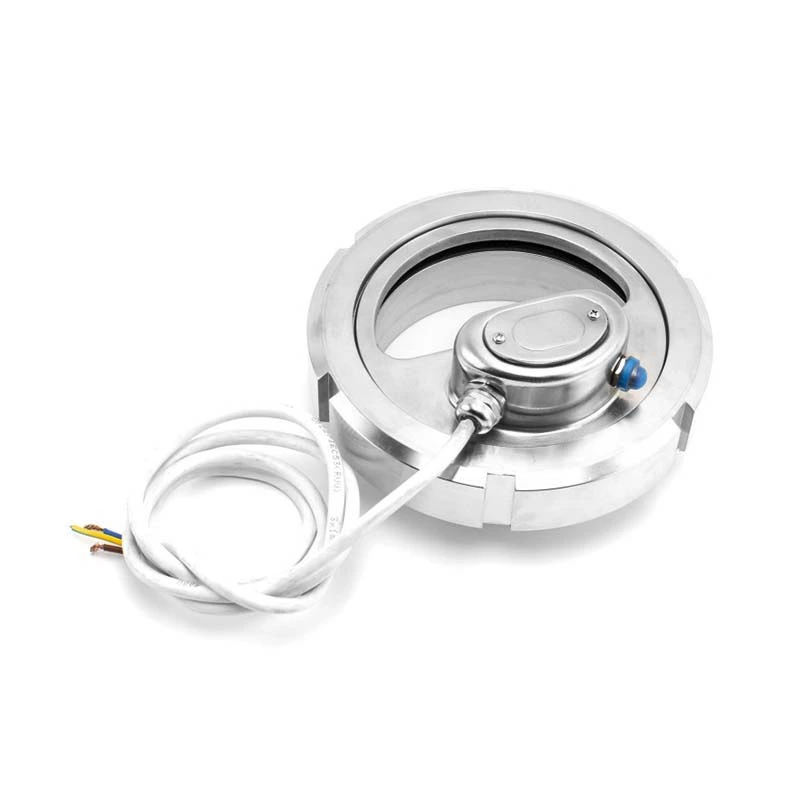

Sanitary Stainless Steel Sight Glass With Wire Light
-
We can supply Sanitary Welding Sight Glass, Hygienic Tri Clover Sight Glass, Hygienic Thread Sight Glass, Sanitary Four Way Cross Sight Glass, Sanitary Union Type Sight Glass, Hygienic Sight Glass With Light.
-
Sanitary sight glass is designed for sanitary applications required in food, dairy, and pharmaceutical industries.
-
It is used to provide 360-degree viewing of material flow in a line.The unit is available in sanitary connection from 3/4" to 6" sizes,and can be supplied with a protective tubing of polycarbonate tubing, acrylic tubing,or slotted stainless steel,depending on temperature requirements.
Technical Data
| Availably standard | SMS,DIN,3A,IDF,RJT, BS, ISO |
| Material Quality | SS304,SS304L,SS316,SS316L |
| Specification | DN150 |
| Availabe Connection | Welding ends,triclamp ends,union ends,male ends |
| Seal Material | Silicone, EPDM, Viton, NBR |
| Glass | Heavy Wall Borosilicate (Pyrex) Tubing; Polycarbonate (Lexan) Tubing; Acrylic Tubing; etc |
| Protection Lens Cover | Polycarbonate Tubing,Acrylic Tubing or Slotted Stainless Steel |
| Screw Blot | Full Stainless Steel |
| Structure | Straight way,cross |
| Pressure range | 1bar~10bar |
| Machine Processing | The most advanced CNC machine from Japan for processing |
| Continuous working temperature | 20°C ~ +135°C (EPDM,Silicone) |
| Special Design | we can produce according to your drawings |

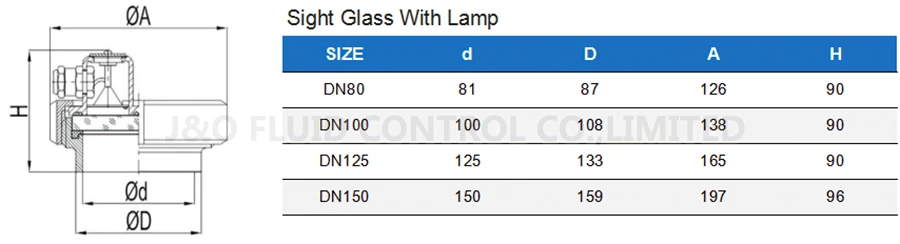

Product Parameter

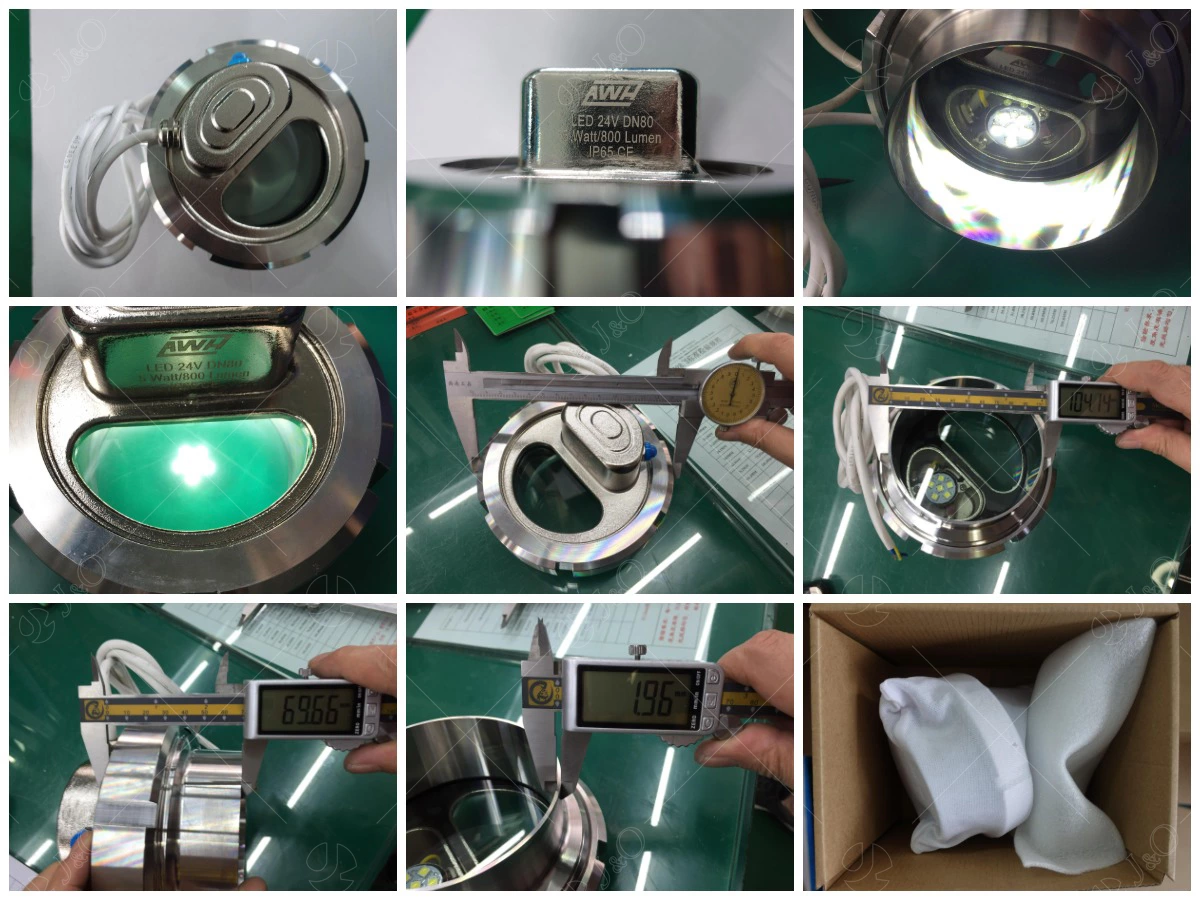

Product Pictures
