Stainless Steel Vertical Pneumatic Filling Valve
- Brand:
- J&O
- Material:
- SS304 / SS316L
- Connection:
- Female
- Gasket:
- PTFE
- Working Temperature:
- -10 degree C ~ +120 degree C
- Working Pressure:
- 0-16bar
- Operation:
- Pneumatic
- Payment:
- T/T, L/C, Western Union
Stainless Steel Pneumatic Filling Valve
- The filling valve is a switching valve that can accurately and quantitatively control the flow. The special structure and sealing design at the bottom of the valve can ensure filling without dripping while ensuring flow. It has been widely used in filling machinery, especially for viscous, creamy and easy-froth fluid filling.
Technical Data
| Valve Body Material: | 1.4404/1.4301, SS304/SS316L |
| Seal Material: | PTFE |
| Fluid pressure: | 0-0.7MPa |
| Medium Temperature: | -10 degree C ~ +120 degree C |
| Availably connection: | Female |
| Operated: | Pneumatic |
| Medium: | Neutral gas, air, water |

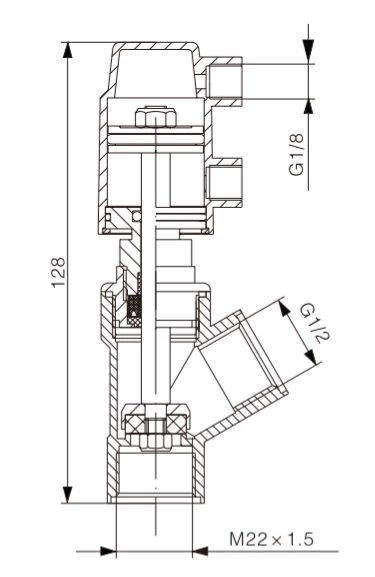

Product Parameter
